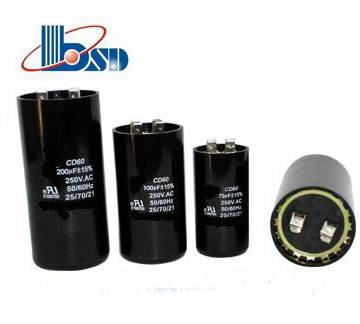

CD60b 200UF 250V Electrolytic Motor Starting Capacitor

CD60B TYPE motor start capacitors with UL ,VDE certificate

   CD60B type aluminium electrolytic capacitor is made according to American ANSI/EIA-463-A standard,a new device developed,bakelite case ,high class insulating,high strength,uneasy brokrn and good sealed.This device is of the good performance,easily for use,reliable and long in service life as well as the high and stable quality .Suitable for use in single phase AC motors with frequency of  50Hz-60Hz,voltage 110V-330V to get high rotary torquo at low starting current and also be widely for use in the high-tech territory.

Products discription:

1.It is a kind of replacement developed according to standard and dimension of American ANSI/EIA-463.

2.The case of capacitor is formed and pressed by phenolic resin therefore good insulation and can bear    outer force from all directions.For adopting quick terminals,more convenience for installing.

3.The parameter of this kind of products are the same with CBB60A;The dimension of this kind of            products are the same with CD60B;

4.It used of double value capacitors of Motors.It can be used with CD60B type starting capacitor,improve   motor grade greatly and good frame.


Environment Temperature	-40~+65ºC
Rated Voltage(UR)	110~330VAC
Capacitance Range(CR)	21~1536μF
Capacitance Tolerance	0~+20%
Dissipation Factor(tg δ)	Tg δ< 0.10 tg δ< 0.15 (20ºC,100Hz)
Load Life	According to the difference working voltage and  capacitance,alternation 0.5 - 4 minute turn on 1 time for second, 12500 ~ 50000 times.  According to the ANSI/ EIA-463-A standard.
Surge Voltage between lugs	Applying 1.25 times rated voltage for 2 seconds
Surge Voltage between lugs and case	2000VAC 10 seconds non-broken down
