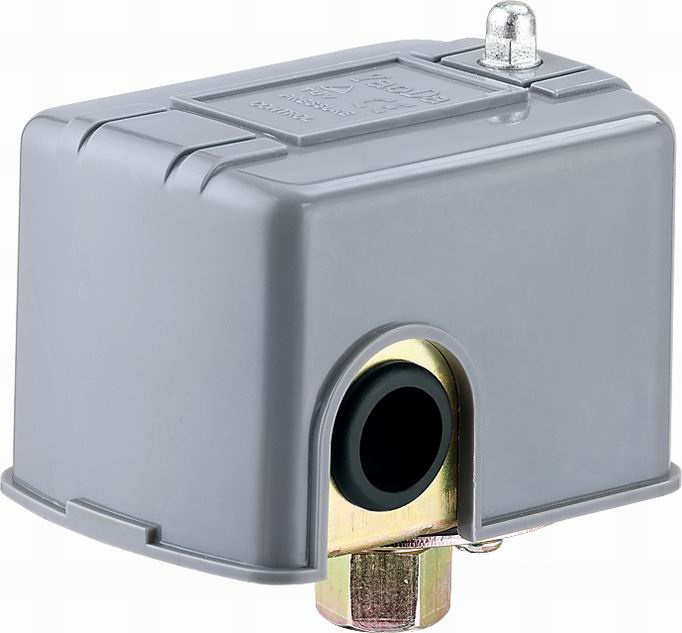

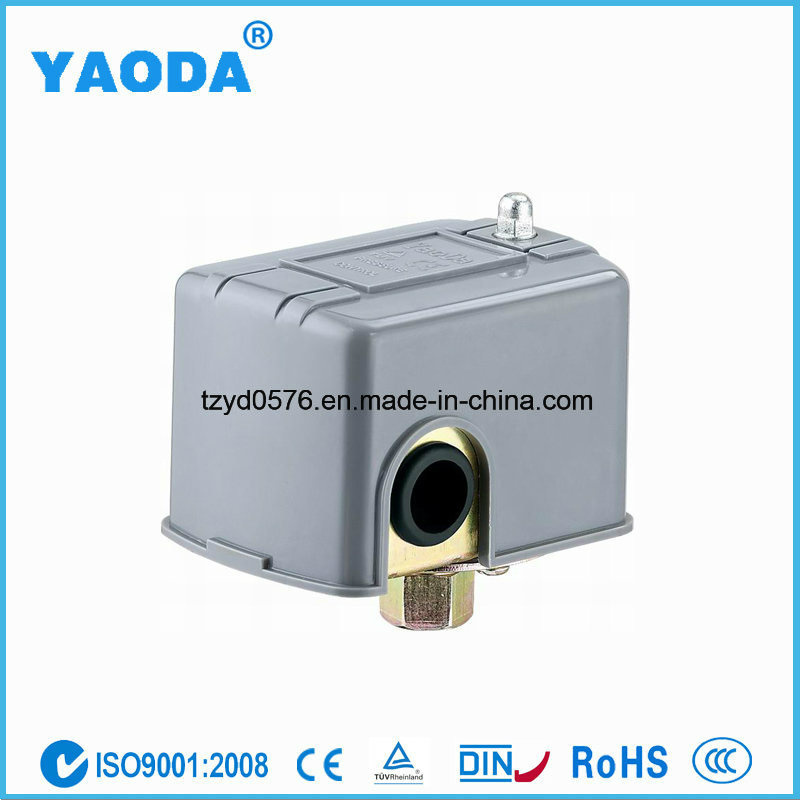

Ce Approved/Pressure Switch for Water Pump
| Price: |
US $ 1.42-1.6/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Mechanical switch
SK-2 standard type
1.When the internal pressure of pipe is higher than the setting pressure ) disconnect the load power supply(pump), connect the load power supply(pump) when below the setting pressure
2.An independent set of adjusting screw, used to connect and disconnect the pressure.
3.4terminal,8 silver alloy long life contact
Application:

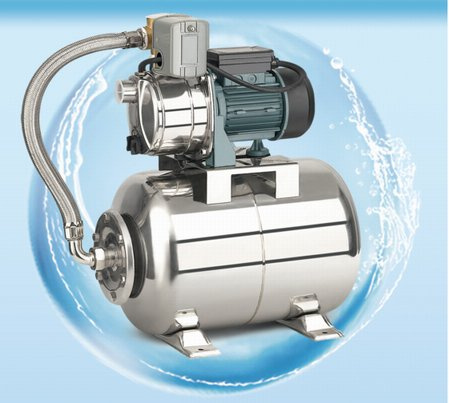

Self-Priming PumpJet Pump Garden PumpClarified water Pump

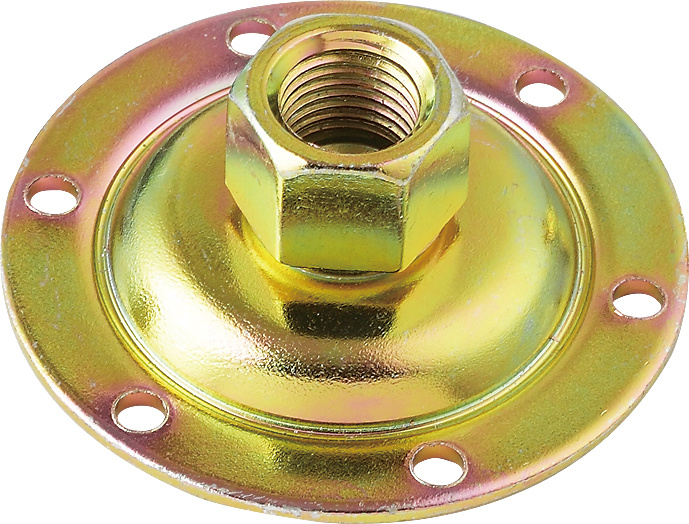

Female connector, fixed and roated type for choice

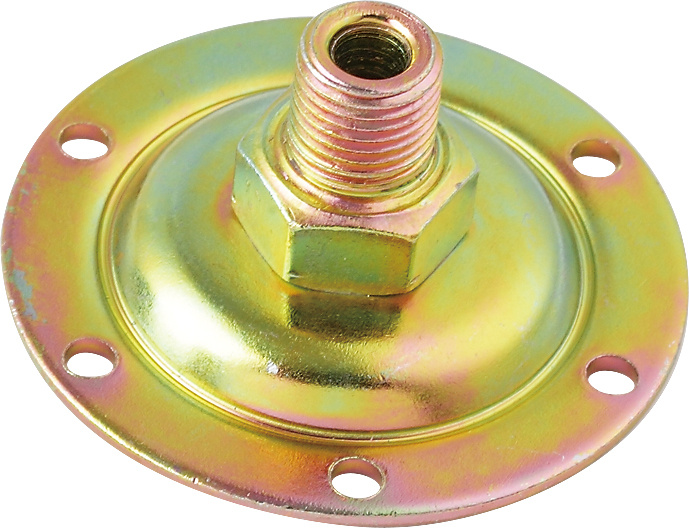

Male connector, fixed

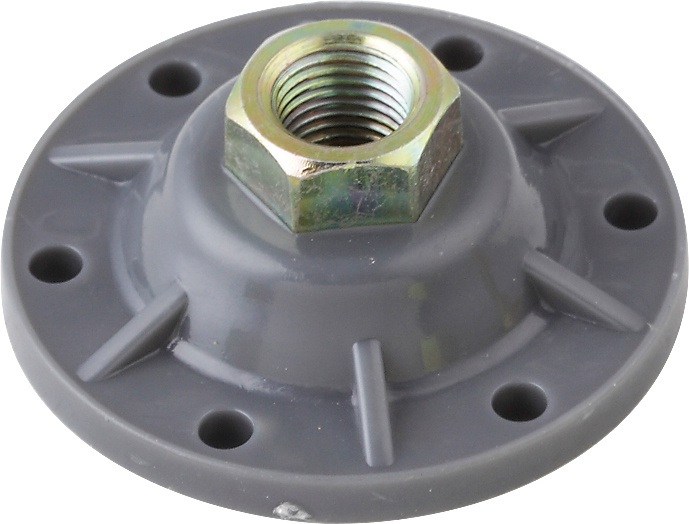

Plastic base, female connector
Technical Data:
| Descriptions: | Pressure switch |
| Rated Voltage: | 110V/230V |
| Max Current: | 12A/6A |
| Pressure Range: | 0.8-5.0bar |
| Pressure setting: | 1.4-2.8bar 2.1-3.5bar 1.4-4.2bar |
| Joint Screw: | Z1/4" |
| Protection Grade: | IP20 |
| Working temperature: | 0-55 degree |
| Application: | Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump |
| Features: | According to the pressure changes in the pipe, it can open and close the pumps automatically |
FAQ of pressure switch1.Are you a manufacturer or a trading company?A: We are a professional pressure switch manufacturer with over 20 years' experience. 2.What's your payment terms?A: T/T, L/C is also acceptable. 3.What's your MOQ?A: Trial order is OK. 4.What's your delivery time?A: Finish the production within 30 days once we receive the advance. 5.What's your warranty for pressure switch?A:1 year warranty for pressure switch. 6.Can we make the products with OEM?A: Yes, of course. We can do oem for you.7. Do you have any other pump accessories?A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L.
| Prod Model: |
SK-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
110V/220V |
| Current: |
20A |
| Pressure Setting: |
20-40psi; 30-50psi; 40-60psi |
| Screw: |
1/4" Male/Female |
| Color: |
Grey/Black/Transparent |
| Type: |
Mechanical |
| Application: |
Commercial |
| Explosion-proof Type: |
Non Explosion-proof |
| Contact: |
Normally Close |
| Brand: |
Yaoda |
ZHEJIANG YAODA INTELLIGENT SCI-TECH Co., Ltd is a national high-tech enterprise engaged in R&D, design, manufacturer, sales and service of all series pump controller, tanks and progressive die areas. YAODA is the first listed company in Chinese pressure controller industry.
We have more than 200 staffs, 50 of them are the core technical staffs. It has advanced production equipments, high-quality management personnel, professional production teams. We created Zhejiang provincial R&D center, with various professional test equipments. The comprehensive development capacity reaches the highest level in the same field. We have passed the certificates: ISO9001: 2008, TUV, CE, PED, RoHS, EU and CCC.
We sell the products to over 100 countries and regions, such as Europe, Southeast Asia, Middle-East, Australia, South America and Africa countries, etc. Our main products are automatic pressure controller, frequency inverter, pressure switch, float switch, pressure tank, expansion tank for heating system, progressive die, which play a crucial role in water pump system, air compressor system, heating system, mould industry, etc. We supply the products to LEO pumps, SHIMGE pumps, SANYU pumps, JUNHE pumps, LX pumps, TAIFU pumps, etc.
With the several subsidiary companies- TAIZHOU MEITAI IMPORT & EXPORT Co., Ltd, TAIZHOU TASLEEN PRECISE DIE Co., Ltd, YAODA possesses a solid foundation to be a world-class pump auto-controller specialist and system solution provider.
With more than 20 years' professional experience and enterprise spirit "Quality, Technology, Profession, Service", we will provide personalize service to make the best water control system for your efficient life.
