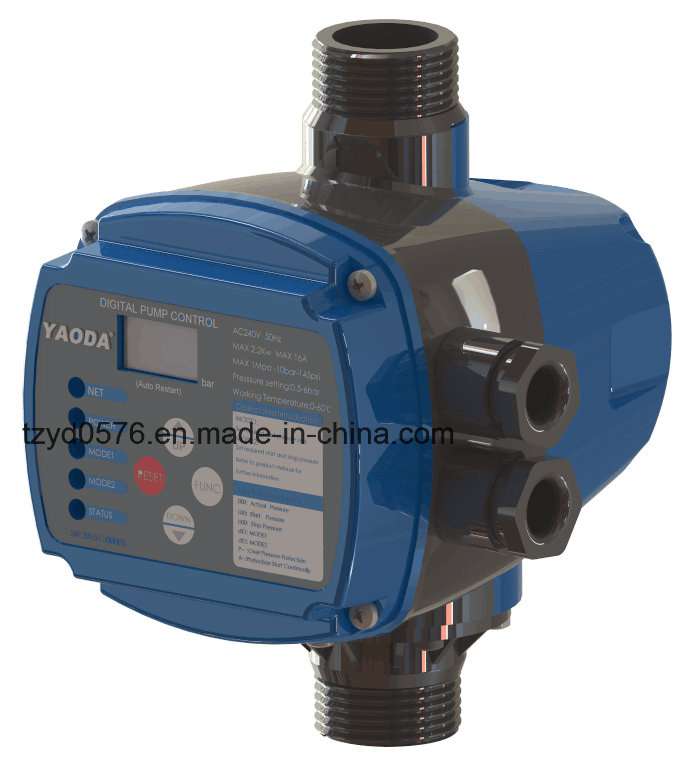

Digital Pump Control
| Price: |
US $ 8.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P |
Function Description:1.Stop and start the pump automatically
2. Stop the pump in the case of water shortage
3. After the power cut off, restart the pump automatically when the power on again.
4. Forced restart by manual
5.Over-pressure protection, stop the pump automatically when the system pressure exceeds 9.8 bar.
6. Restart automatically after the water shortage, the restart interval time is 10S,10S,24 hours.
7.High precision MEMS pressure sensor, LED displays system pressure value in real-time.
8. Built-in two working modes:
a. Intelligent mode: Set the starting pressure value by manual, it can control the water pump automatically according to the set pressure value and system flow signal.
b. Pressure control mode: Set the water pump starting pressure value and stopping pressure value. When the system pressure is lower than the starting pressure, the pump start working; When the system pressure is higher than the pump starting pressure,the pump stop working. Optionals:
1. Color for product appearance
2. G1" plastic quick connector
3. Power cable or motor cable can be equipped according to customers' requirements. | Technical Data: |
| 1)Set starting pressure range(Mode 1):0.5-6bar |
| 2)Set starting pressure and stopping pressure (Mode 2):Starting pressure range(0.5-6bar); Stopping pressure range(0.8-9.8bar) |
| Max Rated current:10A |
| Max Power:1.1KW (AC110V); 2.2KW(AC220V) |
| Max working pressure:1Mpa-10bar-145psi |
| Rated voltage:AC110V/AC220V |
| Frequency:50Hz/60Hz |
| Max working temperature:60ºC |
| /Max medium temperature:60ºC |
| Protect Grade:IP54 |
| Joint screw: G1"X2 | | | | |

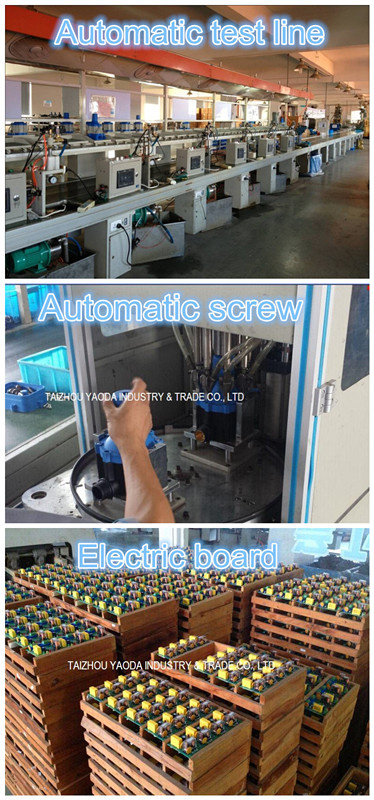

Production photos:
FAQ of Automatic pressure control: 1.Are you a manufacturer or a trading company?A: We are a professional automatic pressure control manufacturer with over 20 years' experience. 2.What's your payment terms?A: T/T, L/C is also acceptable. 3.What's your MOQ?A: Trial order is OK. 4.What's your delivery time?A: Finish the production within 30 days once we receive the advance. 5.What's your warranty for automatic pressure controller?A:1 year warranty for pressure controller 6.Can we make the products with OEM?A: Yes, of course. We can do oem for you. 7. Do you have any other pump accessories?A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L.
| Prod Model: |
SKD-23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Automatic |
| Rated Voltage: |
110V/220V |
| Frequency: |
50/60Hz |
| Max. Cuurent: |
16(8)a |
| Max. Power: |
1.1kw |
| Starting Pressure: |
1.2-2.2bar |
| Protection Grade: |
IP54 |
| Type: |
Electronic |
| Application: |
Industrial |
| Contact: |
Normally Open |
| Brand: |
Yaoda |
