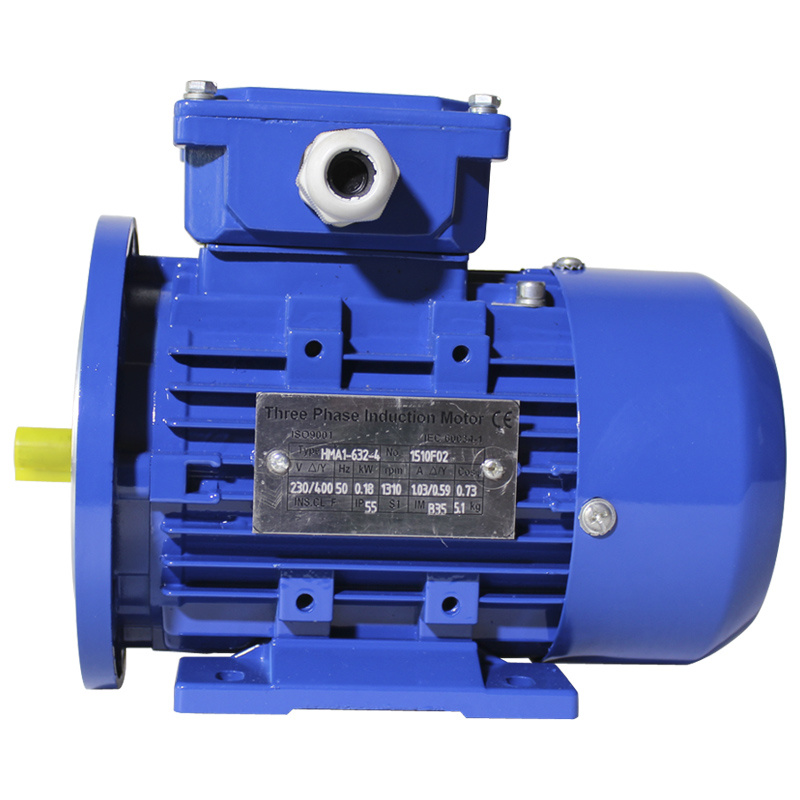

Ce Approved Three Phase Cast Iron Induction AC Motor

Name: Ce Approved Three Phase Cast Iron Induction AC Motor
Brand: all-electronics-online.com
SKU: 817865705
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	US $ 16.87-12790/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Performance and Characteristic:

HM1(Y,Y2) Cast Iron Series motor technical data
Type		Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)					Ts/Tn	Tmax/Tn	Is/In	Weight	Noise
		Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)								Weight	Noise
		(kW)	(rpm)	(%)	Cosφ	230V	400V	690V	380V	415V				(Kg)	dB(A)
2 Poles Synchronous speed 3000 RPM
HM1	71M1-2	0.37	2756	65.8	0.81	1.74	1.00	0.58	1.05	1.0	2.2	2.2	6.1	15.0	64
HM1	71M2-2	0.55	2792	69.4	0.82	2.43	1.40	0.81	1.47	1.3	2.2	2.2	6.1	16	64
HM1	80M1-2	0.75	2830	72.1	0.83	3.1	1.8	1.0	1.9	1.7	2.2	2.3	6.1	16	67
HM1	80M2-2	1.1	2830	75	0.84	4.4	2.5	1.5	2.7	2.4	2.2	2.3	7	17	67
HM1	90S-2	1.5	2840	77.2	0.84	5.8	3.3	1.9	3.5	3.2	2.2	2.3	7	22	72
HM1	90L-2	2.2	2840	79.7	0.85	8.2	4.7	2.7	4.9	4.5	2.2	2.3	7	25	72
HM1	100L-2	3	2860	81.5	0.87	10.6	6.1	3.5	6.4	5.9	2.2	2.3	7.5	33	76
HM1	112M-2	4	2880	83.1	0.88	13.7	7.9	4.6	8.3	7.6	2.2	2.3	7.5	45	77
HM1	132S1-2	5.5	2900	84.7	0.88	18.5	10.7	6.2	11.2	10.3	2.2	2.3	7.5	64	80
HM1	132S2-2	7.5	2900	86	0.88	24.9	14.3	8.3	15.1	13.8	2.2	2.3	7.5	70	80
HM1	160M1-2	11	2930	87.6	0.89	35.4	20.4	11.8	21.4	19.6	2.2	2.3	7.5	117	86
HM1	160M2-2	15	2930	88.7	0.89	47.7	27.4	15.9	28.9	26.4	2.2	2.3	7.5	125	86
HM1	160L-2	18.5	2930	89.3	0.90	57.8	33.2	19.3	35.0	32.0	2.2	2.3	7.5	147	86
HM1	180M-2	22	2940	89.9	0.90	68.3	39.2	22.8	41.3	37.8	2	2.3	7.5	180	89
HM1	200L1-2	30	2950	90.7	0.90	92.3	53.0	30.8	55.8	51.1	2	2.3	7.5	240	92
HM1	200L2-2	37	2950	91.2	0.90	113.2	65.1	37.7	68.5	62.7	2	2.3	7.5	255	92
HM1	225M-2	45	2970	91.7	0.90	136.9	78.7	45.6	82.8	75.9	2	2.3	7.5	309	92
HM1	250M-2	55	2970	92.1	0.90	166.6	95.8	55.5	100.8	92.3	2	2.3	7.5	403	93
HM1	280S-2	75	2970	92.7	0.90	225.7	129.8	75.2	136.6	125.1	2	2.3	7.5	544	94
HM1	280M-2	90	2970	93	0.91	267.0	153.5	89.0	161.6	148.0	2	2.3	7.5	620	94
HM1	315S-2	110	2980	93.3	0.91	325.2	187.0	108.4	196.9	180.2	1.8	2.2	7.1	980	96
HM1	315M-2	132	2980	93.5	0.91	389.4	223.9	129.8	235.7	215.8	1.8	2.2	7.1	1080	96
HM1	315L1-2	160	2980	93.8	0.92	465.4	267.6	155.1	281.7	257.9	1.8	2.2	7.1	1160	99
HM1	315L2-2	200	2980	94	0.92	580.5	333.8	193.5	351.4	321.7	1.8	2.2	7.1	1190	99
HM1	355M-2	250	2980	94.3	0.92	723.4	415.9	241.1	437.8	400.9	1.6	2.2	7.1	1760	103
HM1	355L-2	315	2980	94.5	0.92	909.5	523.0	303.2	550.5	504.1	1.6	2.2	7.1	1850	103
4 Poles Synchronous speed 1500 RPM
HM1	71M1-4	0.25	1347	61.9	0.74	1.37	0.79	0.46	0.83	0.76	2.1	2.2	5.2	14.0	55
HM1	71M2-4	0.37	1340	65.8	0.75	1.88	1.08	0.63	1.14	1.04	2.1	2.2	5.2	14.5	55
HM1	80M1-4	0.55	1390	69.4	0.75	2.65	1.53	0.88	1.61	1.47	2.4	2.3	5.2	17	58
HM1	80M2-4	0.75	1390	72.1	0.76	3.4	2.0	1.1	2.1	1.9	2.3	2.3	6	18	58
HM1	90S-4	1.1	1390	75	0.77	4.8	2.7	1.6	2.9	2.6	2.3	2.3	6	22	61
HM1	90L-4	1.5	1390	77.2	0.79	6.2	3.6	2.1	3.7	3.4	2.3	2.3	6	27	61
HM1	100L1-4	2.2	1410	79.7	0.81	8.6	4.9	2.9	5.2	4.7	2.3	2.3	7	34	64
HM1	100L2-4	3	1410	81.5	0.82	11.3	6.5	3.8	6.8	6.2	2.3	2.3	7	38	64
HM1	112M-4	4	1435	83.1	0.82	14.7	8.5	4.9	8.9	8.2	2.3	2.3	7	43	65
HM1	132S-4	5.5	1440	84.7	0.83	19.6	11.3	6.5	11.9	10.9	2.3	2.3	7	68	71
HM1	132M-4	7.5	1440	86	0.84	26.1	15.0	8.7	15.8	14.4	2.3	2.3	7	81	71
HM1	160M-4	11	1460	87.6	0.84	37.5	21.6	12.5	22.7	20.8	2.2	2.3	7	123	75
HM1	160L-4	15	1460	88.7	0.85	49.9	28.7	16.6	30.2	27.7	2.2	2.3	7.5	144	75
HM1	180M-4	18.5	1470	89.3	0.86	60.5	34.8	20.2	36.6	33.5	2.2	2.3	7.5	182	76
HM1	180L-4	22	1470	89.9	0.86	71.4	41.1	23.8	43.2	39.6	2.2	2.3	7.5	190	76
HM1	200L-4	30	1470	90.7	0.86	96.5	55.5	32.2	58.4	53.5	2.2	2.3	7.2	270	79
HM1	225S-4	37	1480	91.2	0.87	117.1	67.3	39.0	70.9	64.9	2.2	2.3	7.2	284	81
HM1	225M-4	45	1480	91.7	0.87	141.6	81.4	47.2	85.7	78.5	2.2	2.3	7.2	320	81
HM1	250M-4	55	1480	92.1	0.87	172.3	99.1	57.4	104.3	95.5	2.2	2.3	7.2	427	83
HM1	280S-4	75	1480	92.7	0.87	233.4	134.2	77.8	141.3	129.4	2.2	2.3	7.2	562	86
HM1	280M-4	90	1480	93	0.87	279.2	160.6	93.1	169.0	154.8	2.2	2.3	7.2	667	86
HM1	315S-4	110	1490	93.3	0.88	336.3	193.4	112.1	203.6	186.4	2.1	2.2	6.9	1000	93
HM1	315M-4	132	1490	93.5	0.88	402.7	231.6	134.2	243.8	223.2	2.1	2.2	6.9	1100	93
HM1	315L1-4	160	1490	93.8	0.89	481.1	276.6	160.4	291.2	266.6	2.1	2.2	6.9	1160	97
HM1	315L2-4	200	1490	94	0.89	600.1	345.1	200.0	363.2	332.6	2.1	2.2	6.9	1270	97
HM1	355M-4	250	1490	94.3	0.90	739.5	425.2	246.5	447.6	409.8	2.1	2.2	6.9	1700	101
HM1	355L-4	315	1490	94.5	0.90	929.7	534.6	309.9	562.7	515.3	2.1	2.2	6.9	1850	101
6 Poles Synchronous speed 1000 RPM
HM1	71M1-6	0.18	865	57.3	0.66	1.19	0.69	0.40	0.72	0.66	1.9	2	4	14.0	52
HM1	71M2-6	0.25	863	60.5	0.68	1.53	0.88	0.51	0.92	0.85	1.9	2	4	14.5	52
HM1	80M1-6	0.37	890	64.1	0.70	2.07	1.19	0.69	1.25	1.15	1.9	2	4.7	17.0	54
HM1	80M2-6	0.55	890	67.5	0.72	2.84	1.63	0.95	1.72	1.57	1.9	2	4.7	19.0	54
HM1	90S-6	0.75	910	70	0.72	3.7	2.1	1.2	2.3	2.1	2	2.1	5.5	23.0	57
HM1	90L-6	1.1	910	72.9	0.73	5.2	3.0	1.7	3.1	2.9	2	2.1	5.5	25	57
HM1	100L-6	1.5	920	75.2	0.75	6.7	3.8	2.2	4.0	3.7	2	2.1	5.5	33	61
HM1	112M-6	2.2	935	77.7	0.76	9.4	5.4	3.1	5.7	5.2	2	2.1	6.5	45	65
HM1	132S-6	3	960	79.7	0.76	12.4	7.1	4.1	7.5	6.9	2.1	2.1	6.5	63	69
HM1	132M1-6	4	960	81.4	0.76	16.2	9.3	5.4	9.8	9.0	2.1	2.1	6.5	73	69
HM1	132M2-6	5.5	960	83.1	0.77	21.6	12.4	7.2	13.1	12.0	2.1	2.1	6.5	84	69
HM1	160M-6	7.5	970	84.7	0.77	28.9	16.6	9.6	17.5	16.0	2	2.1	6.5	119	73
HM1	160L-6	11	970	86.4	0.78	41.0	23.6	13.7	24.8	22.7	2	2.1	6.5	147	73
HM1	180L-6	15	970	87.7	0.81	53.0	30.5	17.7	32.1	29.4	2	2.1	7	195	73
HM1	200L1-6	18.5	970	88.6	0.81	64.7	37.2	21.6	39.2	35.9	2.1	2.1	7	220	76
HM1	200L2-6	22	970	89.2	0.83	74.6	42.9	24.9	45.1	41.3	2.1	2.1	7	250	76
HM1	225M-6	30	980	90.2	0.84	99.4	57.2	33.1	60.2	55.1	2	2.1	7	292	76
HM1	250M-6	37	980	90.8	0.86	118.9	68.4	39.6	72.0	65.9	2.1	2.1	7	408	78
HM1	280S-6	45	980	91.4	0.86	143.7	82.6	47.9	87.0	79.6	2.1	2	7	536	80
HM1	280M-6	55	980	91.9	0.86	174.7	100.4	58.2	105.7	96.8	2.1	2	7	595	80
HM1	315S-6	75	990	92.6	0.86	236.4	135.9	78.8	143.1	131.0	2	2	7	990	85
HM1	315M-6	90	990	92.9	0.86	282.8	162.6	94.3	171.2	156.7	2	2	7	1080	85
HM1	315L1-6	110	990	93.3	0.86	344.1	197.9	114.7	208.3	190.7	2	2	6.7	1150	85
HM1	315L2-6	132	990	93.5	0.87	407.3	234.2	135.8	246.6	225.8	2	2	6.7	1210	85
HM1	355M1-6	160	990	93.8	0.88	486.6	279.8	162.2	294.5	269.7	1.9	2	6.7	1600	92
HM1	355M3-6	200	990	94	0.88	606.9	349.0	202.3	367.4	336.4	1.9	2	6.7	1700	92
HM1	355L2-6	250	990	94.2	0.88	757.1	435.3	252.4	458.2	419.6	1.9	2	6.7	1800	92
8 Poles Synchronous speed 750 RPM
HM1	80M1-8	0.18	630	51.0	0.61	1.45	0.84	0.48	0.88	0.80	1.8	1.9	3.3	17	52
HM1	80M2-8	0.25	640	54.0	0.61	1.91	1.10	0.64	1.15	1.06	1.8	1.9	3.3	19	52
HM1	90S-8	0.37	660	62.0	0.61	2.46	1.41	0.82	1.49	1.36	1.8	1.9	4	23	56
HM1	90L-8	0.55	660	63.0	0.61	3.59	2.07	1.20	2.17	1.99	1.8	2	4	25	56
HM1	100L1-8	0.75	690	71.0	0.67	4.0	2.3	1.3	2.4	2.2	1.8	2	4	33	59
HM1	100L2-8	1.1	690	73.0	0.69	5.5	3.2	1.8	3.3	3.0	1.8	2	5	38	59
HM1	112M-8	1.5	680	75.0	0.69	7.3	4.2	2.4	4.4	4.0	1.8	2	5	50	61
HM1	132S-8	2.2	710	78.0	0.71	10.0	5.7	3.3	6.0	5.5	1.8	2	6	63	64
HM1	132M-8	3	710	79.0	0.73	13.1	7.5	4.4	7.9	7.2	1.8	2	6	79	64
HM1	160M1-8	4	720	81.0	0.73	17.0	9.8	5.7	10.3	9.4	1.9	2	6	118	68
HM1	160M2-8	5.5	720	83.0	0.74	22.5	12.9	7.5	13.6	12.5	2	2	6	119	68
HM1	160L-8	7.5	720	85.5	0.75	29.4	16.9	9.8	17.8	16.3	2	2	6	145	68
HM1	180L-8	11	730	87.5	0.76	41.5	23.9	13.8	25.1	23.0	2	2	6.6	184	70
HM1	200L-8	15	730	88.0	0.76	56.3	32.4	18.8	34.1	31.2	2	2	6.6	750	73
HM1	225S-8	18.5	730	90.0	0.76	67.9	39.0	22.6	41.1	37.6	1.9	2	6.6	266	73
HM1	225M-8	22	740	90.5	0.78	78.2	45.0	26.1	47.4	43.4	1.9	2	6.6	292	73
HM1	250M-8	30	740	91.0	0.79	104.8	60.2	34.9	63.4	58.1	1.9	2	6.6	405	75
HM1	280S-8	37	740	91.5	0.79	128.5	73.9	42.8	77.8	71.2	1.9	2	6.6	520	76
HM1	280M-8	45	740	92.0	0.79	155.4	89.4	51.8	94.1	86.1	1.9	2	6.6	592	76
HM1	315S-8	55	740	92.8	0.81	183.7	105.6	61.2	111.2	101.8	1.8	2	6.6	1000	82
HM1	315M-8	75	740	93.0	0.81	249.9	143.7	83.3	151.3	138.5	1.8	2	6.6	1100	82
HM1	315L1-8	90	740	93.8	0.82	293.7	168.9	97.9	177.8	162.8	1.8	2	6.6	1160	82
HM1	315L2-8	110	740	94.0	0.82	358.2	206.0	119.4	216.8	198.5	1.8	2	6.4	1230	82
HM1	355M1-8	132	740	93.7	0.82	431.3	248.0	143.8	261.0	239.0	1.8	2	6.4	1600	90
HM1	355M2-8	160	740	94.2	0.82	520.0	299.0	173.3	314.7	288.2	1.8	2	6.4	1700	90
HM1	355L-8	200	740	94.5	0.83	640.1	368.1	213.4	387.4	354.8	1.8	2	6.4	1800	90
10 Poles Synchronous speed 600 RPM
HM1	315S-10	45	590	91.5	0.75	164.6	94.7	54.9	99.6	91.2	1.5	2	6.2	810	82
HM1	315M-10	55	590	92.0	0.75	200.1	115.1	66.7	121.1	110.9	1.5	2	6.2	930	82
HM1	315L1-10	75	590	92.5	0.76	267.8	154.0	89.3	162.1	148.4	1.5	2	6.2	1045	82
HM1	315L2-10	90	590	93.0	0.77	315.5	181.4	105.2	191.0	174.9	1.5	2	6.2	1115	82
HM1	355M1-10	110	590	93.2	0.78	379.8	218.4	126.6	229.9	210.5	1.3	2	6	1500	90
HM1	355M2-10	132	590	93.5	0.78	454.4	261.3	151.5	275.0	251.8	1.3	2	6	1600	90
HM1	355L-10	160	590	93.5	0.78	550.7	316.7	183.6	333.3	305.2	1.3	2	6	1700	90

Any other motors in customised, please feel to call and send email:
Contact details:
Marina Meng
Mobile phone:+86 18936593659

Prod Model:	HMI1 Y2 IE1 YE1 Series
Output Range:	0.37kw-355kw
Frame Range:	71-400
Cooling Method:	IC411
Insulation Class:	B, F, H Class
Degree Of Protection:	IP54, IP55
Rated Frequency:	50, 60Hz
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce
Number Of Poles:	2-10 Poles

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

Fenghua City Hongma Motor Co., Ltd.

Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China

Company Tel: +86 574 88650088

Sales Tel: +86-574-55339278

Fax: +86 574 88650988

Mob: +86 136 8583 1788

Website: HTTP: //www. Hongmamotor. Net
