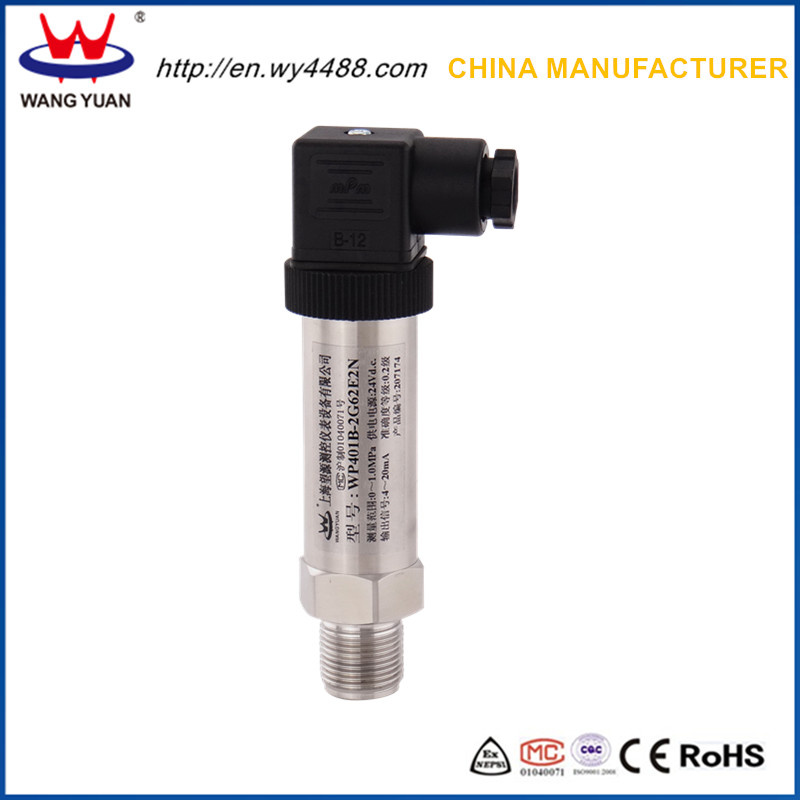

CE Certificated Water pump Pressure transmitter
Model: WP401B
Application:
This CE Certificated Water pump Pressure transmitter can be used in:
- Petroleum and chemical industry,
- Gas Bolier, Gas burner
- Electric power, water supply,
- Oil & Gas and other automatic control industries
Description:
1. WP401B Pressure transmitter adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology.
2. The Piezo diffused silicon pressure transmitter is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments.
3. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the piezo pressure transmitters.
4. Various output signals, compact construct disign, strong anti-jamming, which makes this pressure transmitter is suitable for all kinds of automation control industries.
Features of Pressure transmitter:
* Various pressure range: 0-±0.2~±100kPa, 0 - 0.2kPa~400MPa
* Strong anti-jamming performance
* Measure pressure of Corrosive medium
* World-class pressure transmitter technology
* Compact dimension design, strong construct
* Light weight, easy to install, maintenance-free
* Range can be adjusted in external, widely range of shift
*3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Ex iaIICT6, Ex dIIBT4
Specification:
Name | WP401B CE Certificated Water pump Pressure transmitter |
Pressure range | 0-±0.2~±100kPa, 0 - 0.2kPa~400MPa |
Accuracy | 0.2%FS; 0.5 %FS |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
Process connection | G1/2,M20*1.5,1/4NPT,1/2NPT, Customized |
Electrical connector | Hirschmann(DIN), Cable leads, Bendix connector(5PIN,4PIN) |
Output signal | 4-20mA (1-5V); 4-20mA with HART protocol;0-10mA(0-5V); 0-20mA(0-10V) |
Power supply | 24V DC( 12~30VDC) |
Compensation range | -10~70ºC |
Operation temperature | -40~85ºC |
Material of Pressure transmitter | Housing: SUS304 |
Wetted part: SUS304/ SUS316L/ Teflon |
Media | gas, air, liquids, weak corrosive gas |
Indicator (local display ) | 3 1/2 LCD, 3 1/2 LED indicator, |
Maximum pressure | Measurement upper limit | Overload | Long term stability |
<50kPa | 2~5 times | <0.5%FS/year |
≥50kPa | 1.5~3 times | <0.2%FS/year |
Note: When range <1kPa, only no corrosion or weak corrosive gas can be measured. More information for CE Certificated Water pump Pressure transmitter, please feel free to contact with us. |

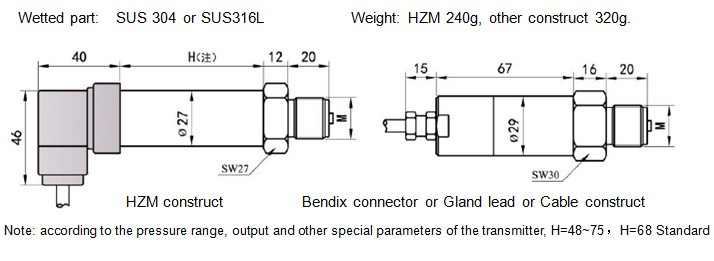

Dimensions of this Pressure transmitter:
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.
In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
