China Good Quality 4 to 20mA Oil Pressure Sensors

Application
This oil pressure sensor can be used to measure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power, Water supply
Environmental protection
Oil & Gas, Forklift truck
Ocean and etc.

Description

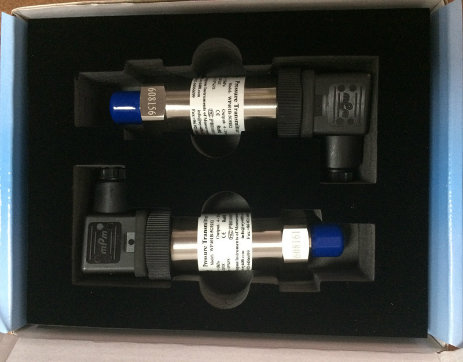

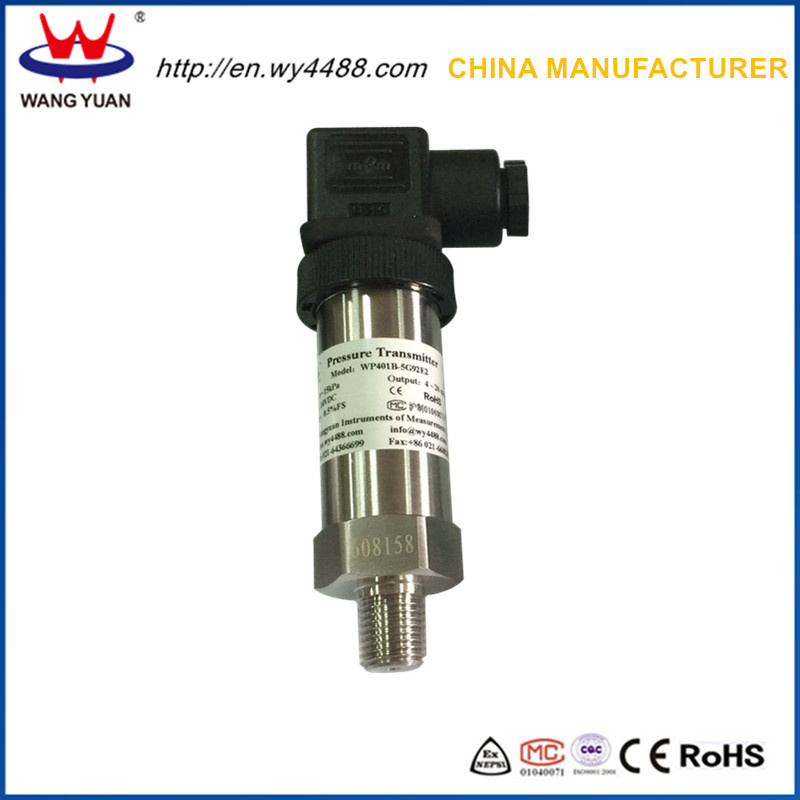

WP401B oil pressure sensor adopts advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology. The product is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure sensors. Widely output signals are available.

Features
Various pressure range: 0_± 0.2~± 100kPa, 0 _ 0.2kPa~400MPa
Imported advanced sensor component
Measure pressure of various corrosive medium
Strong anti-jamming performance
Compact dimension design, strong construct
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
3 1/2 LCD or LED local display
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Compensation range: -10-70C
Operation temperature: -40-60C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN)

Ordering guide: WP401B-0.6MPa-M20*1.5-DIN Connector-4-20mA-24VDC-0.5%FS

More information of this pressure sensor, please feel free to contact with us.


APPLICATION:

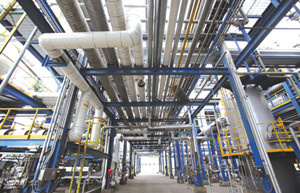

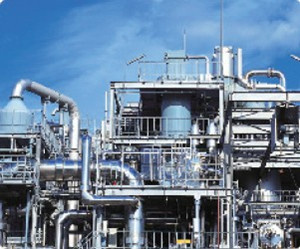

                       LNG                                          OIL & GAS

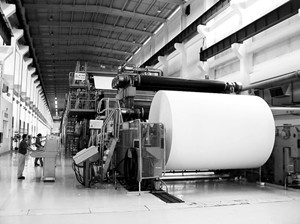

                   PAPER & PULP                                   PHARMACEUTICAL
