Ce Electrical Dz47-63 2p Mini MCB 1~63A

Name: Ce Electrical Dz47-63 2p Mini MCB 1~63A
Brand: all-electronics-online.com
SKU: 811313265
Availability: InStock
Rating: 4.6 (150 reviews)

Price:	US $ 0.45/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

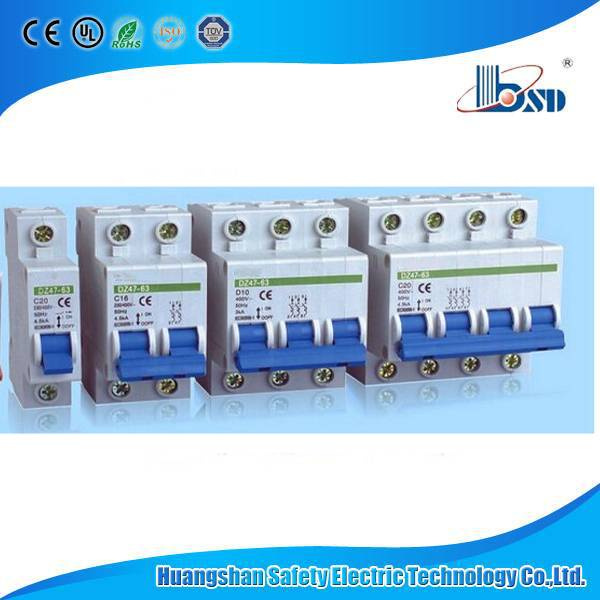

Model Dz47-63 Series 3p High Breaking Capacity MCB

1.Discription:

DZ47-63 Miniature circuit breaker has novel structure,reliable performance,high breaking capacity,pleasing outlook and small size,Its case and items are adopted by high fire-resistant and shockproof plastics,It mainly used in the building office,house and similar building for illuminating at AC 50Hz/60Hz,rate voltage below 230/400V,rated current below 63A,distribution circuit and equipment overload,short circuit protection.It can also be used for unfrequent switch over of the circuit under normal conditions .This product conforms to the requirement of IEC60898 and GB10963.1 standards.

2.Application:

Protection for sub-main circuits
Light and power
Motor starting applications
Electrical office equipment
Industrial plants
Electrical hand tools
Socket outlets

3.Specification

Certificate	SEMKO, CB, CE
Satandard ranges of instantaneous tripping	B-type, C-type, D-type
Rated voltage(V)	230/400
Rated current(A)	6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63
Rated frequency(Hz)	50/60
Rated short-circuit capacity	6000A(In<=40A), 4500A(In=50A/63A)
Number of poles	1, 2, 3, 4
Standard	IEC60898

Prod Model:	DZ47-63
Items:	C45 Mini Circuit Breaker
Pole Number:	1,2,3,4 P
Warranty Time:	3 Years
Certificate:	Ce ,CQC
Service:	OEM and ODM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

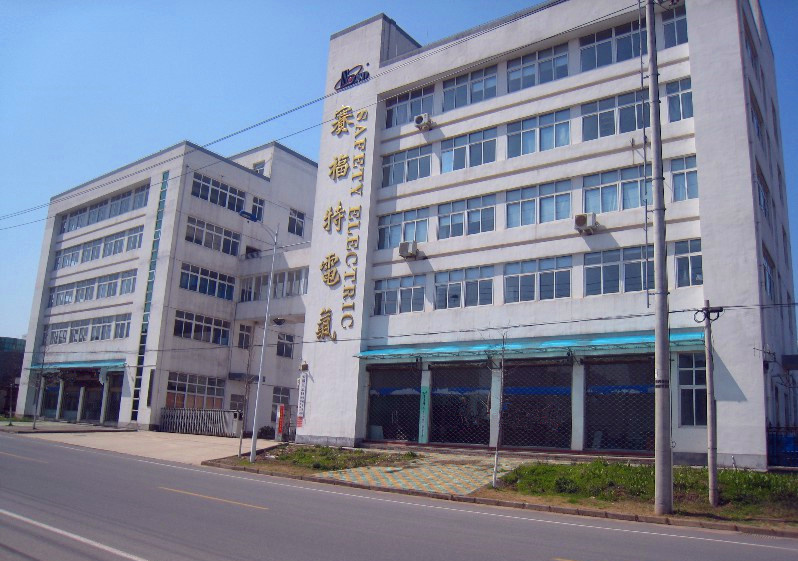

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
