| Prod Model: |
SPC3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structive: |
Open Loop |
| Structure: |
Combination |
| Signal: |
Continuous |
| Export Markets: |
Global |
| Color: |
Black |
| Certificate: |
Ce, ISO9000, ISO14001, Ohsas18000 |
| Task: |
Adjust |
| Function: |
Automatic Control |
| Usage: |
Air Conditioner, Refrigerator, |
| Material: |
Stainless Steel |
Product Description

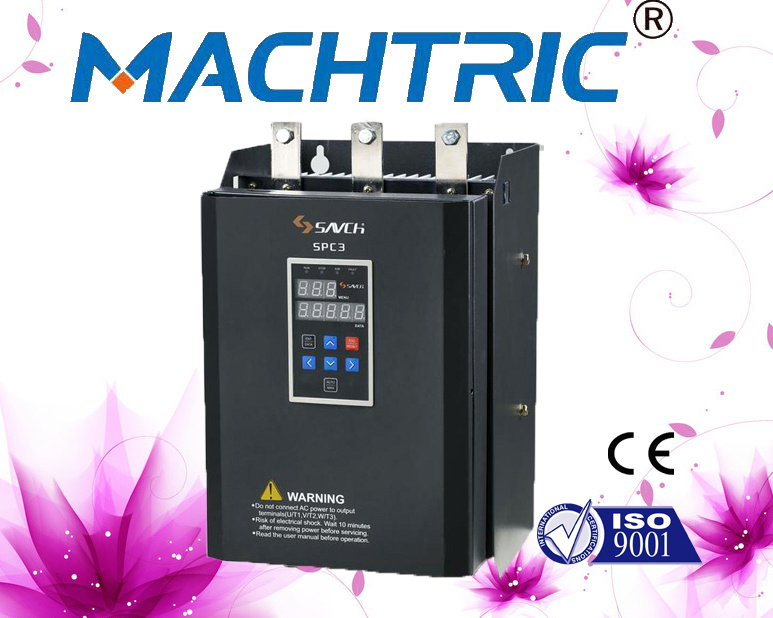

SPC3 Thyristor power controller
Features
1) 6 type control model with strong anti-interfere
2) LZ control and highly integrated
3) Single chip micyoco to be control core
4) Double RS485 and modbus, precise with 118 parameters
| Input | Main circuit voltage | 3AC100-500V,45-65HZ |
| Control power supply | AC220V±15%,45~65HZ |
| Fan power supply | AC220V±15%,45~65HZ |
| Output | Output voltage | 0 to 95% of the input voltage(phase-shifting control) |
| Output current | See "Product series" |
| Control mode | Open-loop,constant voltage, constant current,constant power, power regulation(zero-crossing)and LZ control |
| Load feature | Resistance, primary side of the transformer |
| Main control features | Control signal | Analog and digital determined |
| Parameter setting | Keyboard setting |
| Analogue value input | 5-channel programmable input (2-channel linear opto-coupler isolation, 3-channel non-isolation) |
| Switch value input | 1-channelfixed, 4-channel programmable input |
| Relay output | 3-channel programmable output |
| Analogue output | 4-channel programmable output |
| Fan control | Automatically start/time-delay and stop fan cooling device |
| Protections | Phase-missing protection | Protect at main circuit input power supply phase-missing |
| Over-current protection | Protect when the current e"two times of the rated current |
| Frequency fault | Protect when power supply frequency is beyond the range(45~65Hz) |
| SCR overheat protection | Protect when SCR temperature75ºC |
| SCR fault | Protect when SCR is in fault |
| Load broken line | Protect when load line broken or partial broken line |
| Environment | Operation environment temperature | |
| Storing temperature | |
| Humidity | 90% RH, no water condensation |
| Vibration | <0.5G, no severe vivration and collision |
| Altitude | Lower than 1000m; derating when altitude exceed 1000m, according to GB/T3859.2-93 |
| Protection grade | |
| Installation | Vertical installation | Wall-hang is favorable for ventilation (1500A,chassis type) |
| Model | Rated voltage(AC V) | Rated current (AC V) | Rated capacity (KVA) | Cooling way |
| SPC3-0025A | 380 | 25 | 16 | Air cooling |
| SPC3-0050A | 50 | 33 |
| SPC3-0075A | 75 | 49 |
| SPC3-0100A | 100 | 66 |
| SPC3-0150A | 150 | 99 |
| SPC3-0200A | 200 | 132 |
| SPC3-0250A | 250 | 165 |
| SPC3-0350A | 350 | 230 |
| SPC3-0450A | 350 | 296 |
1.Best service
2.OEM services accepted
3.Reply inquiry within 24 hours on working days
4.Provide the sample
5.Support the technical training
Our advantage:
Great quality,made OEM for Fuji since 2009
MOQ as 1pc, easy to test quality
All our products is designed by ourselves both software and hardware
Fail rate: < 1%
Delivery: 3-7 days after receive payment.
Have 10 years OEM experience
about us:
Our products have been broadly applied in Textile, Packing, Plastic, Ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.
We also have other frequency inverter. If you have any questions, please don't hesitate contact with me.
Wendy
TEL:86-18850877082
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
