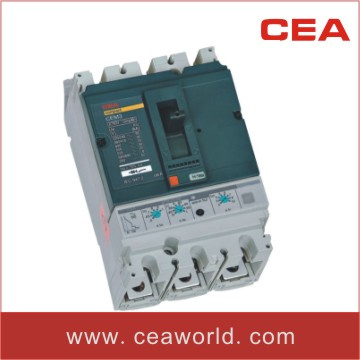

Cem3 Adjustable Moulded Case Circuit Breaker (NS100/NSE100/NSX100/NS160 MCCB)) Ce Certification
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Adjustable Moulded Case Circuit BreakerCEM3 series(NS100A/NS160A/NSX100A/NSX160A/NSX250A/NSD160K/NSD250K) moulded case circuit breaker is one of the most advanced breaker in the world. Which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protective effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and undervoltage.
CEM3 MCCB (moulded case circuit breaker)
1)good price and high quality
2)OEM availalble
3)high breaking capacity
2, Working condition
1, the installation altitude less than 2000m
2, the surrounding temperature from -5° C ~ +40° C
3, in the non-explosive condition. Or without adequate erosion and destruction of gas and dust conductive area.
4, without rain and snow invade
5, pollution level 3
6, install type 3
Circuit breaker installation
The basic installtion of circuit breakers in mounted vertically, also can be cross-load| type | rated current | poles | rated insulating voltage(V) | rated operating voltage(V) | acting over distance(mm) | ultimate short circuit breaker capacity(KA) | services short circuit breaker capacity(KA) | operating performance(times) |
| CEM3-100D | 12.5,16,20,25,32,40,50,63,80,100 | 3,4 | 950, | 690 | 0 | 18 | 18 | 1500 8500 |
| CEM3-100N | 12.5,16,20,25,32,40,50,63,80,100 | 3.4 | 950 | 690 | 0 | 25 | 25 | 1500 8500 |
| CEM3-100H | 12.5,16,20,25,32,40,50,63,80,100 | 3.4 | 950 | 690 | 0 | 70 | 70 | 1500 8500 |
| CEM3-100L | 12.5,16,20,25,32,40,50,63,80,100 | 3.4 | 950 | 690 | 0 | 150 | 150 | 1500 8500 |
| CEM3-160D | 16,20,25,32,40,50,63,80,100,125,160 | 3.4 | 950 | 690 | 0 | 25 | 25 | 1500 7000 |
| CEM3-160N | 16,20,25,32,40,50,63,80,100,125,160 | 3.4 | 950 | 690 | 0 | 36 | 36 | 1500 7000 |
| CEM3-160H | 16,20,25,32,40,50,63,80,100,125,160 | 3.4 | 950 | 690 | 0 | 70 | 70 | 1500 7000 |
| CEM3-160L | 16,20,25,32,40,50,63,80,100,125,160 | 3.4 | 950 | 690 | 0 | 150 | 150 | 1500 7000 |
| CEM3-250D | 160,180,200,225,250 | 3.4 | 950 | 690 | 0 | 25 | 25 | 1000 7000 |
| CEM3-250N | 160,180,200,225,250 | 3.4 | 950 | 690 | 0 | 36 | 36 | 1000 7000 |
| CEM3-250H | 160,180,200,225,250 | 3.4 | 950 | 690 | 0 | 70 | 70 | 1000 7000 |
| CEM3-250L | 160,180,200,225,250 | 3.4 | 950 | 690 | 0 | 150 | 150 | 1000 7000 |
| CEM3-400D | 200 225 250 300 315 400 | 3.4 | 950 | 690 | 0 | 35 | 35 | 1000 4000 |
| CEM3-400N | 200 225 250 300 315 400 | 3.4 | 950 | 690 | 0 | 45 | 45 | 1000 4000 |
| CEM3-400H | 200 225 250 300 315 400 | 3.4 | 950 | 690 | 0 | 70 | 70 | 1000 4000 |
| CEM3-400L | 200 225 250 300 315 400 | 3.4 | 950 | 690 | 0 | 150 | 150 | 1000 4000 |
| CEM3-630D | 315 350 400 500 600 630 | 3.4 | 950 | 690 | 0 | 35 | 35 | 1000 4000 |
| CEM3-630N | 315 350 400 500 600 630 | 3.4 | 950 | 690 | 0 | 45 | 45 | 1000 4000 |
| CEM3-630H | 315 350 400 500 600 630 | 3.4 | 950 | 690 | 0 | 70 | 70 | 1000 4000 |
| CEM3-630L | 315 350 400 500 600 630 | 3.4 | 950 | 690 | 0 | 150 | 150 | 1000 4000 |
| CEM3-800L | 800 1000 1250 | 3.4 | 950 | 690 | 0 | 150 | 500 | 2000 5000 |
| CEM3-1000L | 800 1000 1250 | 3.4 | 950 | 690 | 0 | 150 | 500 | 2000 5000 |
| CEM3-1250L | 800 1000 1250 | 3.4 | 950 | 690 | 0 | 150 | 500 | 2000 5000 |
Company Profile:
Founded in 1999, CEA Elecreic Co., Ltd is acknowledged as one of the most respected electrical apparatus and LED lighting manufacturer in China. The company located in Fuyang city Anhui Province, owns production area of 50,000m2 and employs more than 5oo staffs.The company is approved by ISO9001 Quality Management System and ISO14001 Environment Management System, GB/T 28001 Occupational Health and Safety Management System. Products certificated with UL, SAA, C-TICK, CB, CE, ROHS, CCC. CEA brand is registered in more than 40 countries and regions. Branch offices are established in USA, HK, and general agency in Brazil and Russia. With qualified R&D team and professional engineers, the company has established advanced test center. Company product line mainly includes LED lightings, cables & wires, industrial control apparatus, instruments, complete equipment and electronic parts & components. The company's LED lightings product included LED Flood Light, LED Tunnel Light, LED Street Light, LED High Bay Light, LED Tube, LED Bulb, LED Down Light. Products widely used in roadway, factory, department store, hospital, school, golf course, villa, farm and etc. With energy saving, environmental friendly, high efficiency performance, CEA LED lightings have gained reputation in over 80 countries and regions in Southeast Asia, North & South America, Europe, Africa, CIS.With enterprise tenet "Be NO.1 Electrical equipment supplier, Realize Green energy resource", and enterprise spirit "credit, unity, innovation and striving", we are willing to work with you and build a bright future.
| Prod Model: |
CEM3(NS100) |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: Auto-Recovery Mode/ Nomal Code: |
Installation: DIN-Rail and Screw |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CCC |
| Structure: |
Moulded Case Circuit Breaker |
| Function: |
Overcurrent Protection, Circuit-Breaker Failure P |
