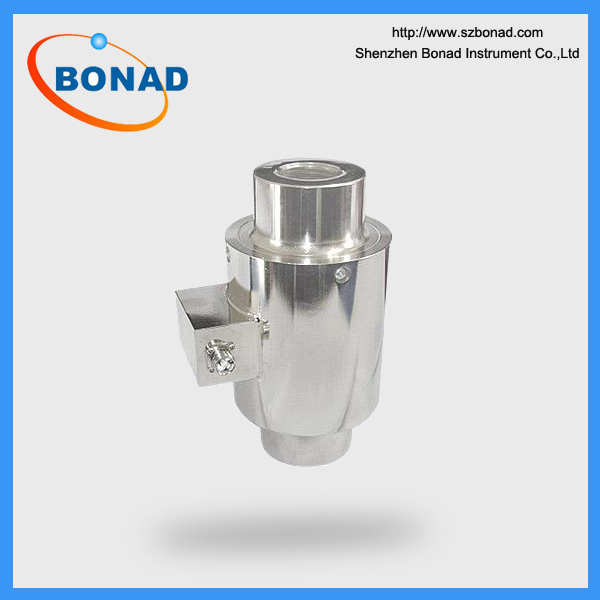

Cfblt 250t Cylinder Tension Pressure Load Cell

Name: Cfblt 250t Cylinder Tension Pressure Load Cell
Brand: all-electronics-online.com
SKU: 803801155
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 29-299/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBLT
Delivery Time:	3-7days
Product Name:	Cfblz Colum
Warranty:	1year
Temperature Sensitivity Coefficient:	≤%F·s/10ºC
Operating Temperature Range:	-20ºC~+80ºC
Input Resistance:	400±20Ω
Recommended Excitation Voltage:	10V-15V
Safety Overload:	150% F·s
Insulation Resistance:	≥5000mΩ(50VDC)

Product Description

CFBLT 250t cylinder tension pressure load cell

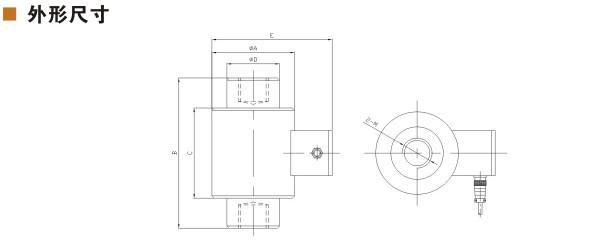

Measuring Range	ΦA	ΦD	C	B	2-M	E
10-30t	110	70	200	120	M40×3	140
50-100t	155	115	324	200	M72×4	190
150-200t	200	166	420	240	M110×6	240
250-300t	238	190	500	280	M130×6	280

Parameters	Unit	Technical Index	Parameters	Unit	Technical Index
Sensitivity	mV/V	1.0-1.5±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.1
Nonlinear	≤%F·S	±0.3	Operating Temperature Range	ºC	-20ºC~+80ºC
Lag	≤%F·S	±0.3	Input Resistance	Ω	750±20Ω
Repeatability	≤%F·S	±0.15	Output Resistance	Ω	700±5Ω
Motility changes	≤%F·S/30min	±0.3	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.1	Recommended excitation voltage	V	10V-15V
