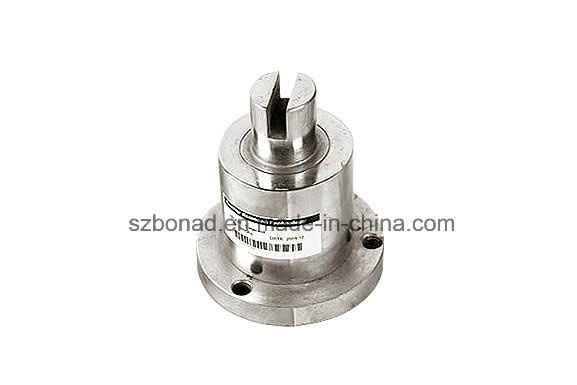

Cfn-1 Static Torque Sensor Easy to Use
| Price: |
US $ 45-299/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
CFN-1 Static torque sensor easy to useCFN-I static torque sensor use the principle of resistance stain.it has the advantage of high accuracy, high stability,large measuring range and easy to install.the way of connection is according to the user. Technical parameter:(5N.m~300N.m)| parameters | Unit | Technical Parameters | Parameters | Unit | Technical Parameters |
| Sensitivity | mV/V | 1.0±0.05 | temperature sensitivity coefficient | ≤%F·S/10°C | ±0.01 |
| Nonlinear | ≤%F·S | ±0.3 | Operating Temperature Range | °C | -20ºC~+80ºC |
| Lag | ≤%F·S | ±0.3 | Input Resistance | Ω | 400±20Ω |
| Repeatability | ≤%F·S | ±0.2 | Output Resistance | Ω | 350±5Ω |
| Motility changes | ≤%F·S/30min | ±0.3 | Safety overload | ≤%F·S | 150%F·S |
| Zero output | ≤%F·S | ±2 | Insulation Resistance | MΩ | ≥2000MΩ(50VDC) |
Zero temperature coefficient
| ≤%F·S/10°C | ±0.01 | Recommended excitation voltage | V | 10V-15V |
FAQWhat about your quality?Each equipment must be carry out 100% examination and test again before shipping What is the MOQ ?if we have in store MOQ can be 1 sample if we dont have in store , the MOQ will be 5 sample what is the lead time ?if we have in stock,it will be shipping to you within 3-5days.if we dont have it in store ,it will need 10-40days.How long the delivery time ?Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .What is the warranty of the products?One year ,but we can provide you life long support .What is the packageExport standard Solid wooden case What is the shipping way ?We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .What is the payment term ?T/T, Western Union,Money gram ,Paypal etc
| Prod Model: |
BND-CFN-1 |
| Delivery Time: |
3-7days |
| Warranty: |
1year |
| Product Name: |
Cfn-1 Static Torque Sensor |
| Insulation Resistance: |
≥2000m&Omega 50VDC |
| Measure Range: |
5n.M~300n.M |
| Driving Voltage: |
10V~15V |
| Zero Output: |
±2%Fs |
| Safety Overload: |
150%F·s |
| Sensitivity: |
1.0±0.05mv/V |

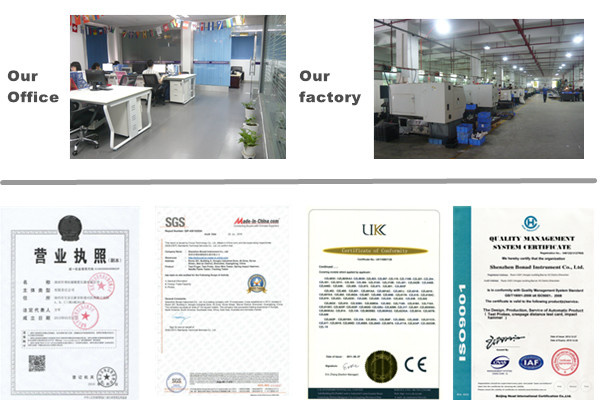

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
