Cfzc Double Shear Bearing Type Load Cells 1.5t to 10t

Name: Cfzc Double Shear Bearing Type Load Cells 1.5t to 10t
Brand: all-electronics-online.com
SKU: 803640955
Availability: InStock
Rating: 4.6 (95 reviews)

Price:	US $ 98-399/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

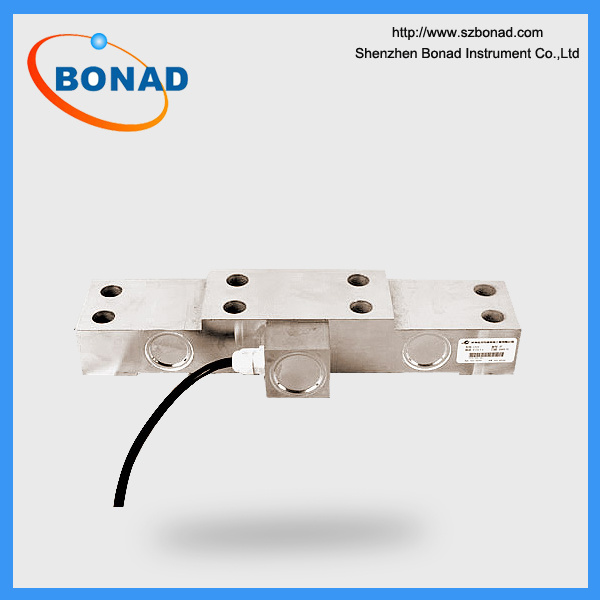

CFZC double shear bearing type load Cells 1.5t to 10t

Specifications

1. Double shear beam structure
2. Strong overload
3. High precision
4. Steady state force
5. Small transverse interference

Features and Uses
Sensor is flat double shear beam structure, height low profile , easy to install . Overload, stress state stability, small transverse interference, obtain higher accuracy. Suitable for lifting, water conservancy and other industries in the tension test and control system under the bearing .

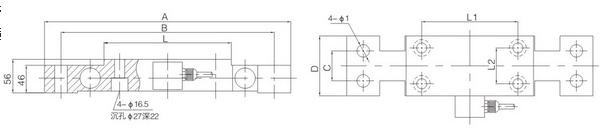

Technical indicators

Rated Load	A	B	C	D	L	L1	L2	Ф1
1.5t	350	310	38	75	152	100	40	17
2.5t	410	355	50	100	182	130	60	21
4t	410	355	50	100	212	160	60	21
10t	410	355	50	100	212	160	60	21

Parameters	Unit	Technical Parameters
Sensitivity	mV/V	1.0-2.0±0.05
Nonlinear	≤%F·S	±0.1
Lag	≤%F·S	±0.1
Repeatability	≤%F·S	±0.05
Motility changes	≤%F·S/30min	±0.05
Zero output	≤%F·S	±1
Zero temperature coefficient	≤%F·S/10°C	±0.05
Temperature Sensitivity Coefficient	≤%F.S/10ºC	±0.05
Operating Temperature Range	ºC	-20ºC~+80ºC
Input Resistance	Ω	750±20Ω
Output Resistance	Ω	700±5Ω
Safety Overload	≤%F·S	150%F·S
Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Recommended Excitation Voltage	V	10v-15v

What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
How to contact us ?

About us

Prod Model:	CFZC
Delivery Time:	3-7days
Warranty:	1year
Product Name:	10ton Shear Bearing Load Cell
Recommended Excitation Voltage:	10V~15V
Sensitivity:	1.0-2.0±0.05 Mv/V
Insulation Resistance:	≥5000mΩ(50VDC)
Output Resistance:	700±5Ω
Operating Temperature Range:	-20ºC~+80ºC
