Change Over Switch

Name: Change Over Switch
Brand: all-electronics-online.com
SKU: 704076465
Availability: InStock
Rating: 4.3 (105 reviews)

Price:	US $ 4.19/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

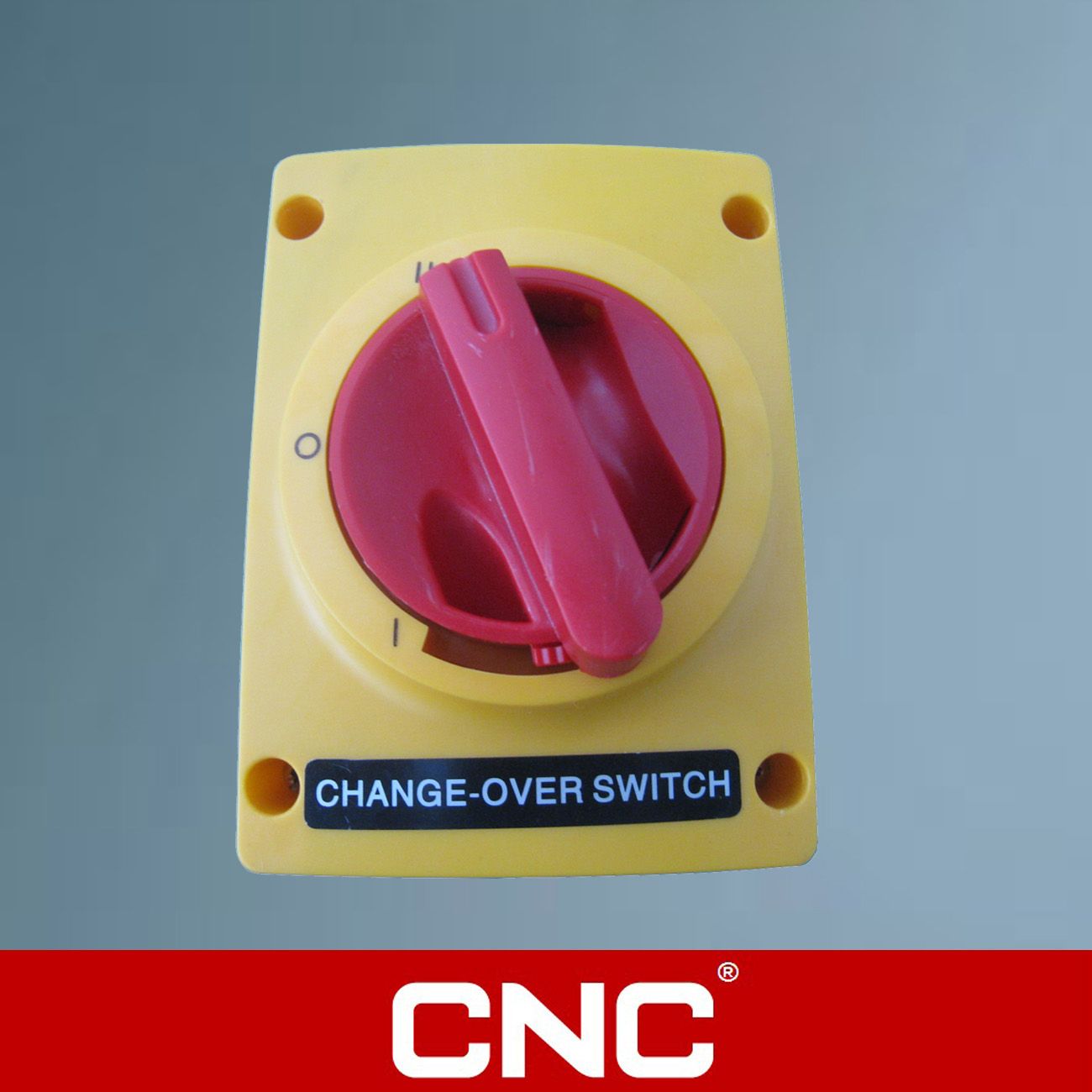

Change over switch

We can offer a comprehensive range of isolating switches designed with safely in mind in stand-alone and enclosed formats, this switch range are padlockable and available in yellow/red or gray/black making it deal for any electrical isolation requirement, such as repair, maintenance installation and inspection.

Compact and suitable were space is limited.
DIN rail mounting for easy installation.
Load-braking up to 8 times rated current making it ideal for motor isolation.
Double-break with silver rivets-superior performance, reliability and long lasting.
Highly visible red/yellow handle.

Large padlockable red/yellow or grey/black handles.
Comprehensive range, 16 to 32A modles
High IP 65 rating
High breaking capacity with 12.5 mm contact air gap.
Easy to install and operate
Easy snap-on fitting of auxiliary switches

3/4pole change over switch

main contacts		Type	change over switch-63
Rated thermal current I the		A	16	25	32
Rated insulation voltage U i		V	1000	1000	1000
Rated operational current leDC2IB
2 pole in series	600V	A	16	25	32
2 pole in series +2 poles parallel	600V	A	29	45	50
	900V	A	13	16	20
	1200V	A	9	11	13
3 poles in series	900V	A	16	25	32
3 poles in series	1000V	A	16	25	32
4 poles in series	600V	A	16	25	32
	1000V	A	16	25	32
	1200V	A	16	25	32
Rated operational current le DC228
2 poles in series	600V	A	5.5	6	6.5
	900V	A	2	2.5	3
	1200V	A	1	1.5	2

Prod Model:	change over
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Thermal Current:	16 25 32A
Rated Insulation Voltage:	1000V
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Un Grounded
Series:	Two
Run:	Turn the Horizontal
Switching Mode:	Single Throw-in

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
