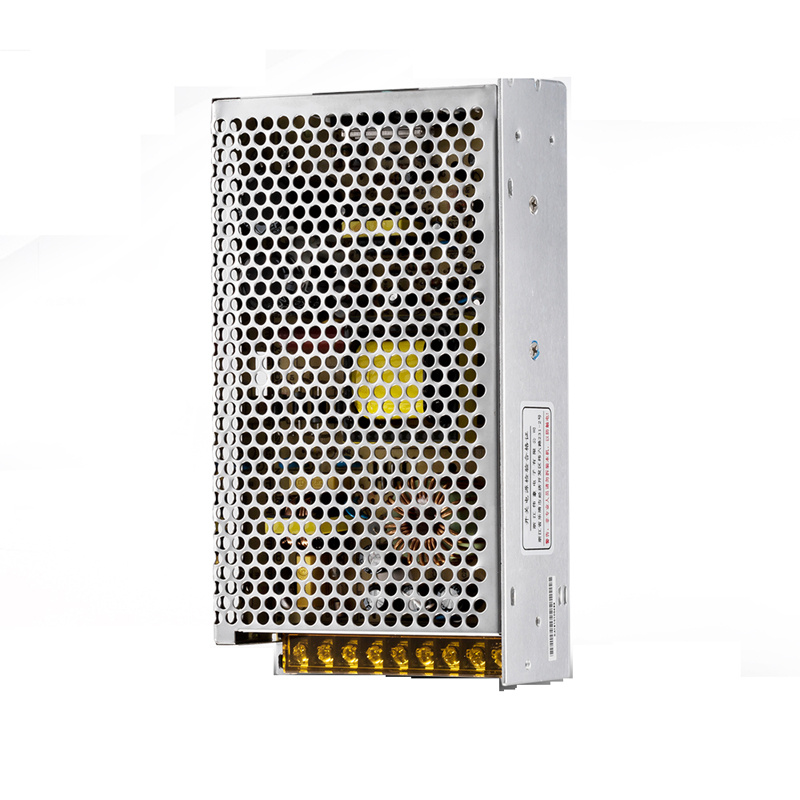

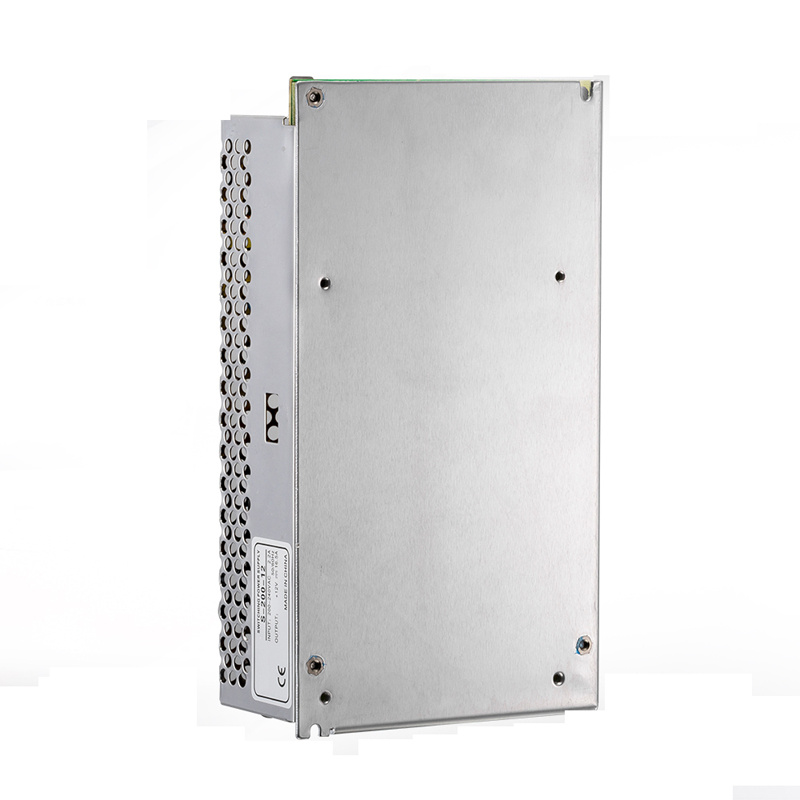

Universal Regulated Switching Power Supply 200W 24V

Name: Universal Regulated Switching Power Supply 200W 24V
Brand: all-electronics-online.com
SKU: 821196375
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Universal regulated switching power supply 200w 24v

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model	S-200-5	S-200-12	S-200-24	S-200-48
DC output voltage	5V	12V	24V	48V
Rated output current	40A	16.7A	8.3A	4.2A
Output current range	0-40A	0-16.7A	0-8.3A	0-4.2A
Wave and noise	100mVp-p	100mVp-p	150mVp-p	150mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	80%	85%	85%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	85~132VAC/176~264VAC selected by switch
Input current	4.5A/115VAC 2.5A/230VAC
AC INnrush current	Cold-start current 20A/115V 35A/230V
Over load protection	105%~150% rated output power
Over load protection	Protection:Hiccup mode,recover automatically
Over voltage protection	5.6~6.6V	13.8~16V	27.5V~32V	55~64V
Over voltage protection	Protection:Shut down output voltage
Setup rise hold up time	200s,100ms,20ms
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C,20~90%RH
Overall dimension	19911050mm /20pcs per carton
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC standards	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
Weight	0.85Kgs

WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.

CNC Electric Group Co.,Ltd.
Add:CNC High-tech industrial zone, north Baixiang,Wenzhou, Zhejiang province, China.325603

web:www.cncele.com

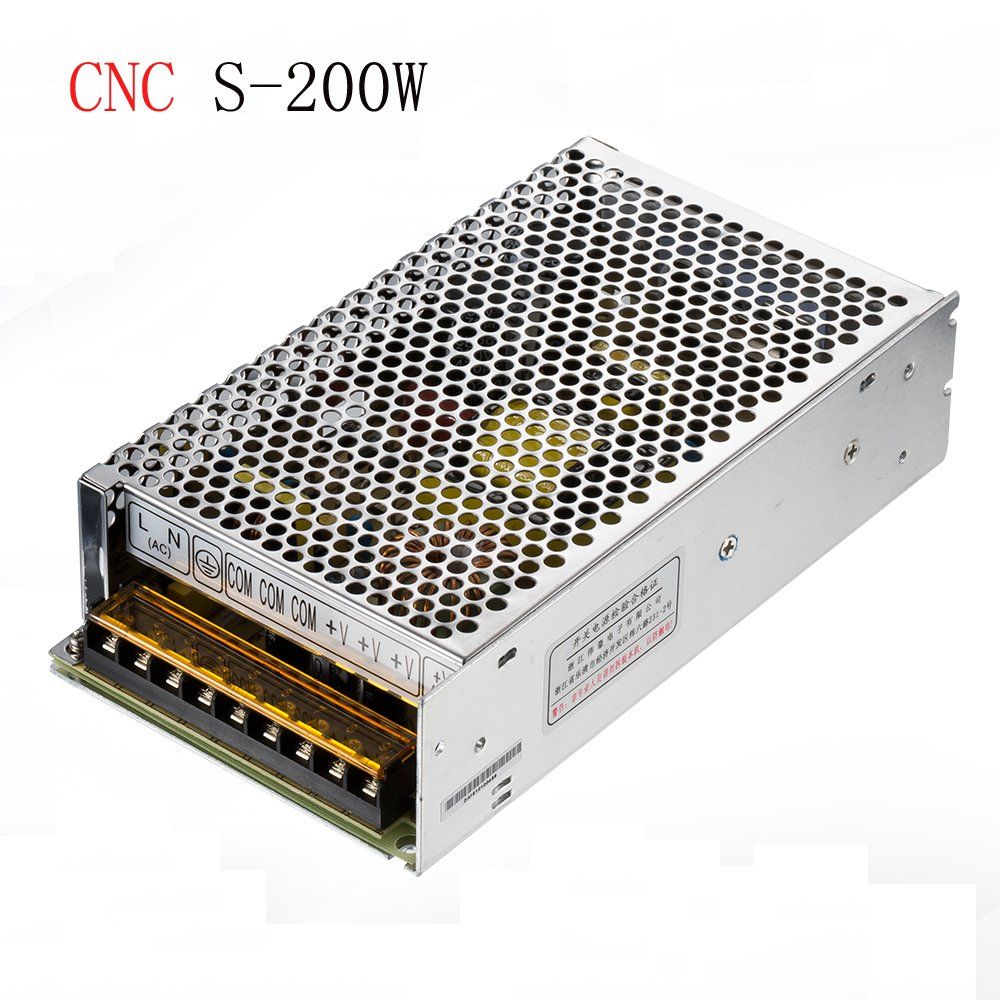

Prod Model:	S-200W
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	CCC
Power Supplying System:	Power
Brand:	CNC

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
