cheap copper core PVC insulation flexible electrical cable electric cable

Name: cheap copper core PVC insulation flexible electrical cable electric cable
Brand: all-electronics-online.com
SKU: 833183845
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	H07V-K
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Flexible
Application:	Household Wiring
Range Of Application:	Electricity Wiring
Brand:	Shanghai Ronda

Product Description

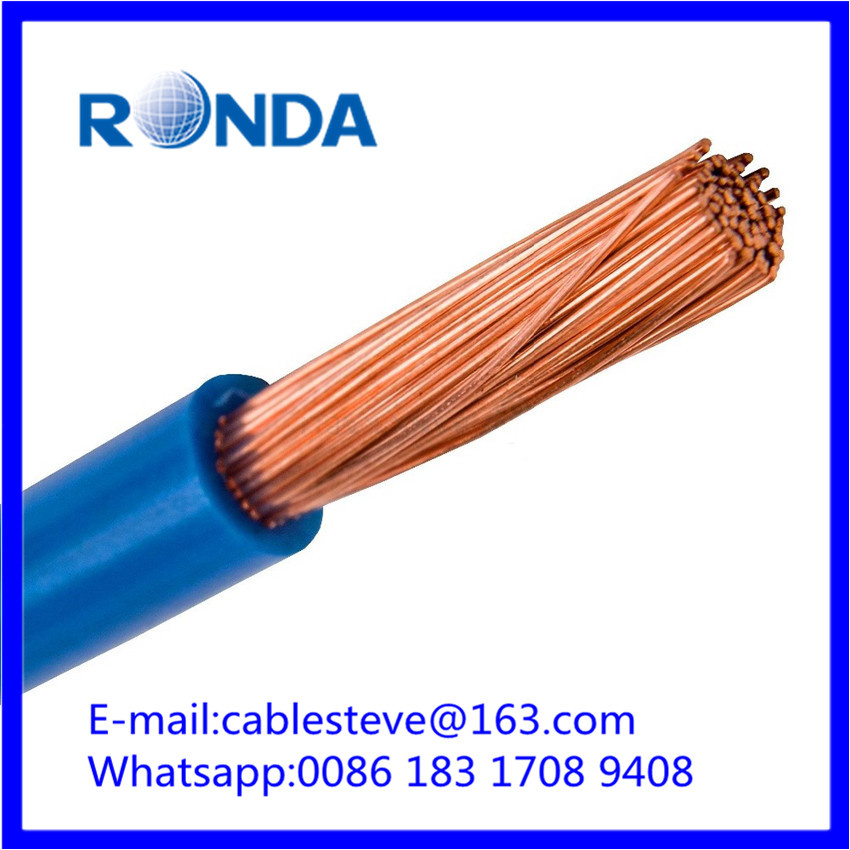

cheap copper core pvc insulation flexible electrical cable electric cable

Model: RV-470/750V Class 5 Conductor (European Code H07V-K)

PVC insulated conductor - fine wired

Application:

Flexible insulated conductor used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.

Construction:
Conductor: bare copper conductor, fine wired stranded, class 5. Acc. To IEC 60228
Insulation: PVC compound acc. To IEC 60227

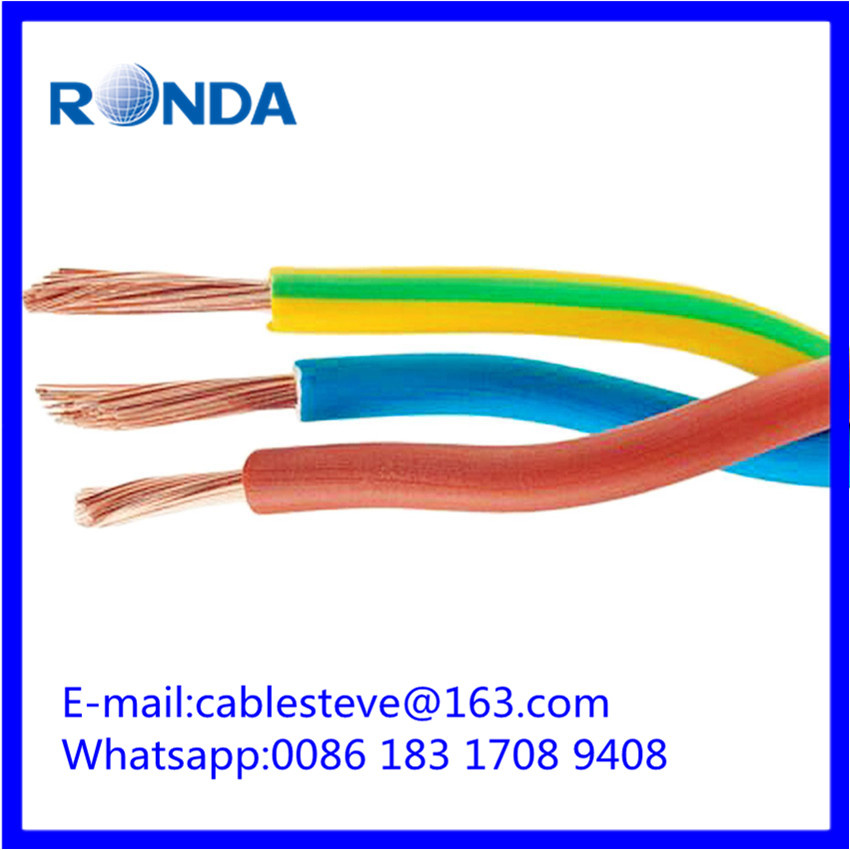

Insulation colors: White, Red, Yellow, Blue, Green, Yellow-Green, Brown

Technical Data:
During installation: +5 °C up to+70 °C Fixed installed: -30 °C up to+70 °C
At short circuit of max. 5 s: up to 160 °C Ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 450/750 V Test voltage: 2500 V
Minimal inner bending radius: 4D for D < 8 mm; 5D for 8 - 12mm; 6D for D > 12 mm

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
