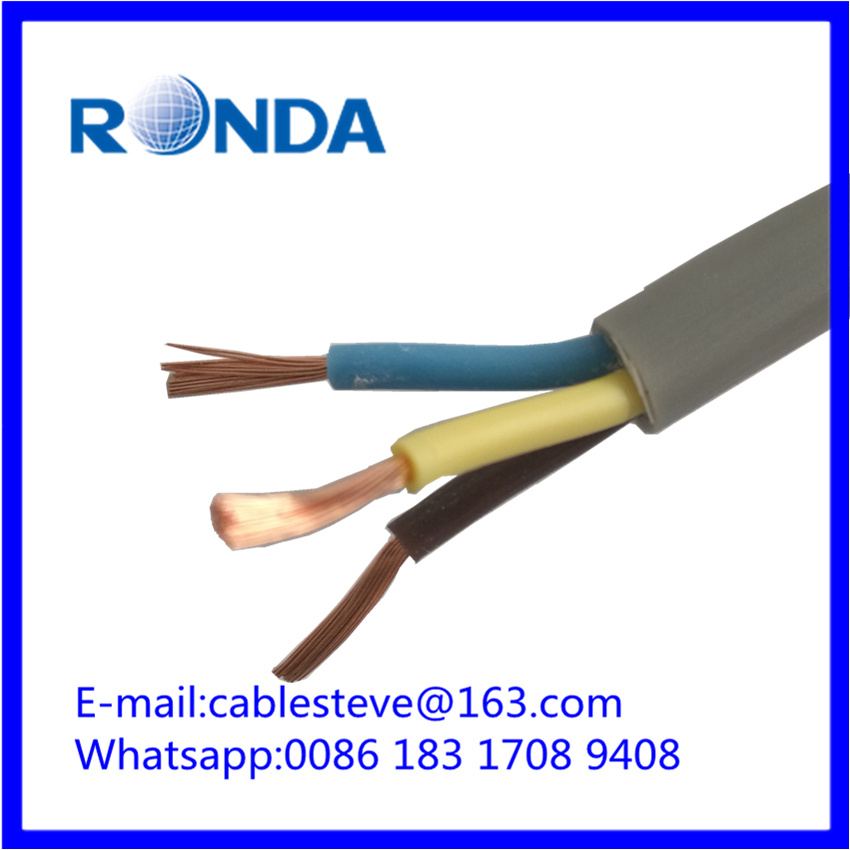

power supply copper conductor PVC Insulation flexible electrical wire cable

Name: power supply copper conductor PVC Insulation flexible electrical wire cable
Brand: all-electronics-online.com
SKU: 834029985
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 0.01-1/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

power supply copper conductor PVC Insulation flexible electrical wire cable

PVC insulated and sheathed light fine wired cable

Application:
Flexible cable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc., as long as the cable is adapted to essential specifications of the device.

power supply copper conductor PVC Insulation flexible electrical wire cable

Construction:
Conductor: bare copper conductor, fine wired stranded, class 5 acc. To IEC 60228
Insulation: PVC compound acc. To IEC 60227
Sheath:PVC compound for flexible insulated conductors acc. To IEC60227
Sheath colors: white or black

power supply copper conductor PVC Insulation flexible electrical wire cable

Technical Data:
During installation: +5 °C up to+70 °C
Fixed installed: -30 °C up to+70 °C
At short circuit of max. 5 s: up to 150 °C
Ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U =300/300 V
Test voltage: 2000V
Minimal inner bending radius: 4D for D < 8 mm; 5D for 8 - 12mm; 6D for D > 12 mm

Prod Model:	H05VV-F
Colour:	Customized
Application Standard:	IEC60228, IEC60227, IEC60331
Conductor:	Copper
Type:	Insulated
Application:	Household Wiring
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Flexible
Range Of Application:	Household Wiring
Brand:	Ronda

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
