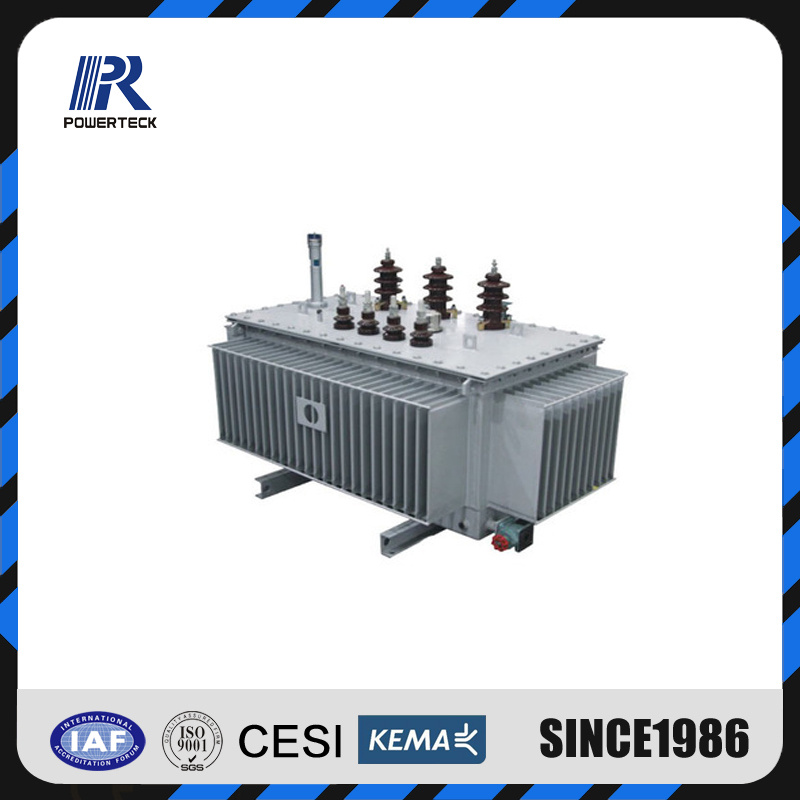

China High Quality Sh15 Wholly Sealed Amorphous Alloy Coil Three Phase Oil Immersed Power Transformer 30~2500kVA
| Price: |
US $ 1000-25000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Three phase amorphous alloy coil distribution transformer
Amorphous alloy Material Introduction
Amorphous alloy material is a low-loss transformer, using a novel energy-saving material . Amorphous alloy strip with iron as the basic elements tighter with silicon and other elements .
Under certain conditions melting using ultra rapid cooling technique and spraying it directly into the cooling
rollers to cast thin .
Amorphous alloy material characteristics
(1) Material is thin , the thickness only 0.025mm, 1/10 of silicon steel
(2) High resistivity is about three times as the silicon steel belt
(3) Non- directional of crystalline arrangement
(4) High frequency usually a few thousand Hertz
(5) Iron loss is small at 1.35T, the loss is only 0.21W/kg ,65% smaller than ordinary silicon steel
Technical parameter specifications:
3-phase oil immersed amorphous alloy distribution transformer | Rated voltage | 6.3KV |
| Rated capacity | 30KVA |
| Cooling type | ONAN |
| Winding type | Double winding/three winding/toroidal |
| Phase | Three phase/single phase |
| Type | Core type/shell type |
| Winding material | Copper |
| Frequency | 50HZ/60HZ |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
OUR SERVICE:
1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.
WHY CHOOSE POWERTECH:
1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.
CONTACT US:
Contact person: Mr. Chen Chengming
Tel:86-570-5657760
Mobile:86-18668777248
Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.
| Prod Model: |
SH15 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Amorphous Alloy Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Powertech |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
