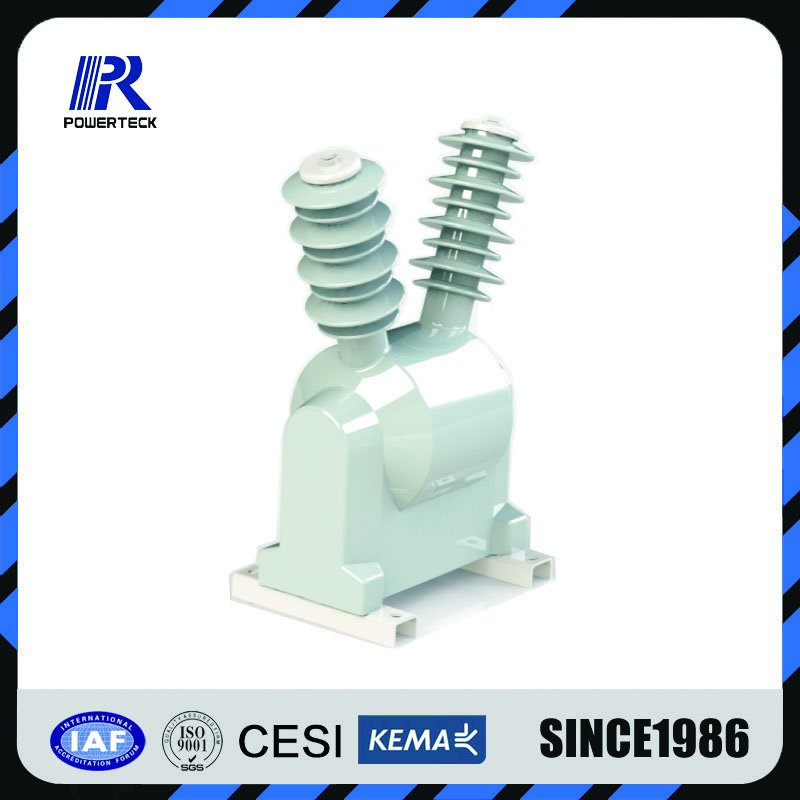

Jdz (X) W-10r Outdoor Voltage Transfromer

Name: Jdz (X) W-10r Outdoor Voltage Transfromer
Brand: all-electronics-online.com
SKU: 839350305
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 430-900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

JDZ(X)W-10R VOLTAGE TRANSFORMER

12KV outdoor single-phase epoxy resin type

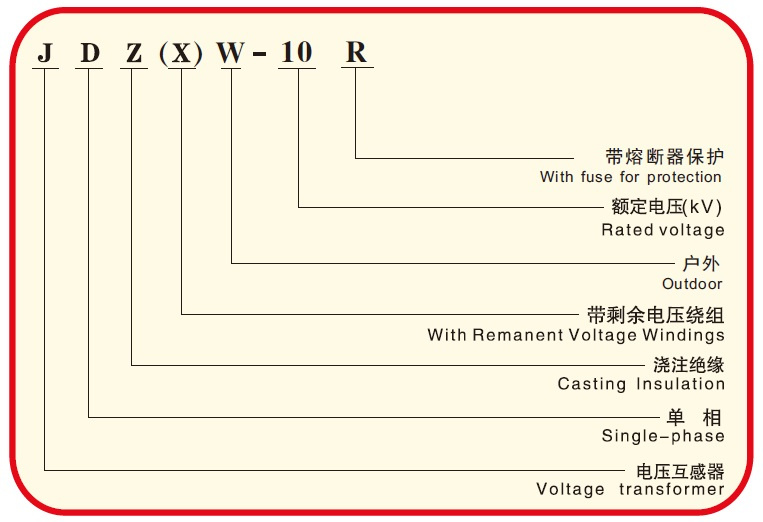

Type description

Technical data

1.swith fuse for protection: outdoor

2.rated frequency:50/60HZ

3.burden power factor): COSØ=0.8 lagging

4.technical standard accords with: GB1207-2006,IEC60044-2:2003

Specification

type	Rated primary voltage (KV)	Rated secondary voltage (KV)	Accuracy Classes combination	Rated output (VA)	Thermal limiting output (VA)	Rated insulation level (KV)
JDZW-10R	3 6 10	0.1 0.1/0.1 0.1/0.22 0.22	0.2(0.5)	30(50)	300/300	3.6/25/40 7.2/32/60 12/42/75
			0.2/0.2(0.5)	15/15(20)	300/300
			0.2/3	30/300	300/500
			3	500	800
JDZXW-10R	3/ 6/ 10/	0.1//0.1/3 0.1//0.1//0.1/3	0.2/6P(3P)	20/100	200/400	3.6/25/40 7.2/32/60 12/42/75
			0.5/6P(3P)	40/100	200/400
			0.2/0.5/6P(3P)	15/20/100	150/150/300

Note: upon request we are glad to offer transformers according to other technical specs.

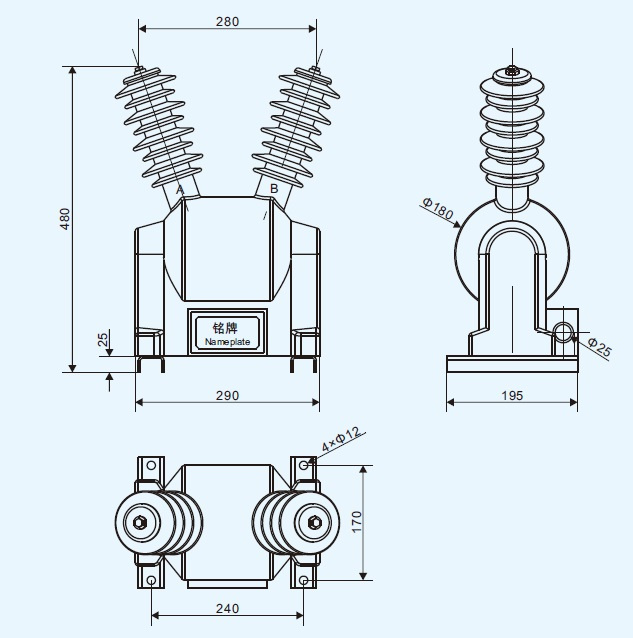

Outline drawing

ATTENTION:

1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.

OUR SERVICE:

1.quick response in before sales period help you got order.
2.excellent service in production time let you know each step we made.
3.reliable quality solve you after sale headache.
4.long period quality warranty ensure you can buy without hesitate.

WHY CHOOSE POWERTECH:

1. One-stop supplier globally.
2. More than 10 years professional experiences in electrical appliance industry.
3.We offer professional online technology support for perfecting your electrical solution free.
4. Experienced sales service and suggestion.
5. All the products with accessories under strict quality control and final inspection before shipping.
6. We can assure the powerful competitive price and reliable quality products.
7. Most competitive shipping rate from our own shipping forwarder.
8. Warranty assurance: 12 month
9. Whatever big or small order, we can provide you one-to-one service.

CONTACT US:

Contact person: Mr. Chen Chengming
Tel:86-570-5657760
Mobile:86-18668777248

Your Best Choice for Electrical Appliances Industry!!!
Please leave an inquiry to know more details about Price , Packing ,Shipping and Discount.

Prod Model:	JDZ(X)W
Application:	Electronic
Type:	Voltage Transformer
Phase:	Single
