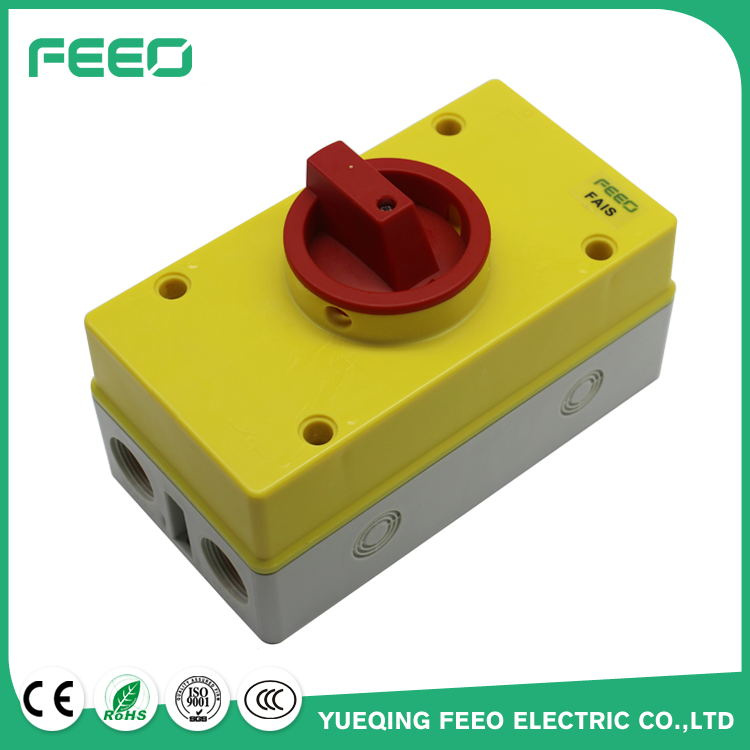

China Supplier Double Pole 20A 440V Isolator Switch
Product DescriptionRotary Switch Features:
1.Rated insulation voltage 690V, current 20A~160A,commonly used in single-phase or three-phase AC system;
2.IP66 box body design, with the import of the sealing strip of the safety seal and dust,waterproof, anti ultravioletmaterials;
3.Switch rotating operator (knob) with three lock position, reliable to prevent misuse;
4.Suitable for different cable connectors: M25, M20, M16 and M12, optional waterproof cable connectors;
5.Large wiring operation space, the product is fixed on the box body, the connection is still convenient;
6.Adequate internal space, good heat dissipation effect, the whole machine can be loaded at -25ºC -70ºC;
7.Large contrast color design, easy to distinguish;
8.Protection degree: IP66.
Rotary Switch Parameters:
| Technical Parameters | FAIS-20-3
FAIS-20-4 | FAIS-25-3
FAIS-25-4 | FAIS-32-3
FAIS-32-4 | FAIS-40-3
FAIS-40-4 | FAIS-63-3
FAIS-63-4 | FAIS-80-3
FAIS-80-4 |
| Rated Insulation | Ui | 690 | 690 | 690 | 690 | 690 | 690 |
| Rated Current | Ith | 20A | 25A | 32A | 40A | 63A | 80A |
| Rated Value@415V | AC21 | A | 20 | 25 | 32 | 40 | 63 | 80 |
| AC22 | A | 20 | 25 | 32 | 40 | 63 | 80 |
| AC23 | KW | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Switching Capacity@415V | Aeff | 120 | 150 | 220 | 300 | 370 | 440 |
| Breaking Capacity@415V | Aeff | 110 | 135 | 200 | 250 | 330 | 380 |
| Mechanical Life | ×103 | 20 | 20 | 20 | 20 | 10 | 10 |

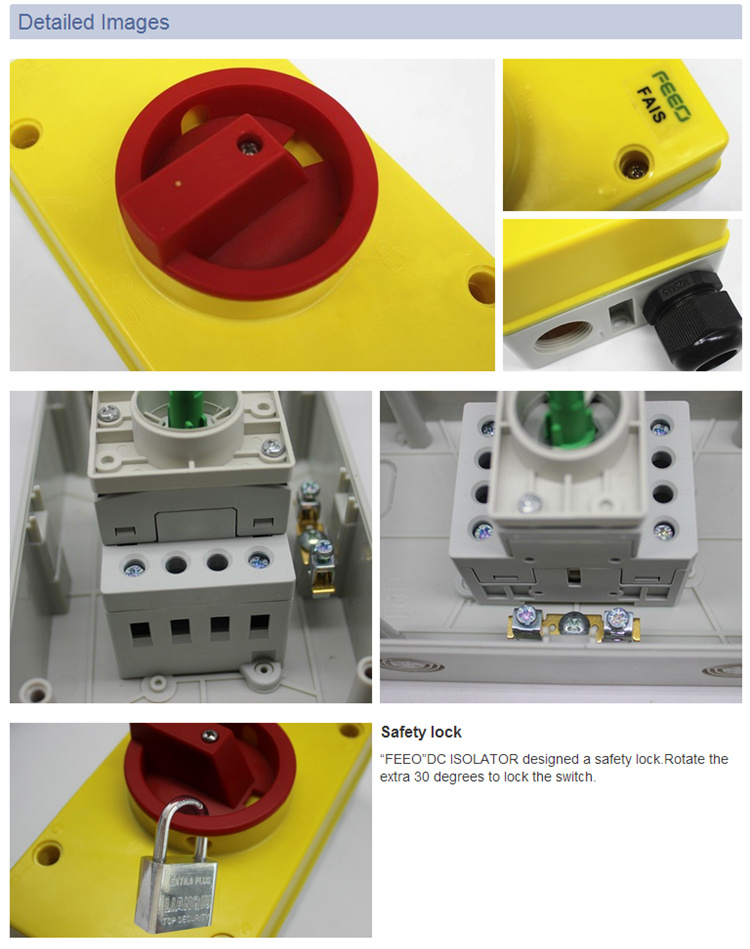

Detailed Images

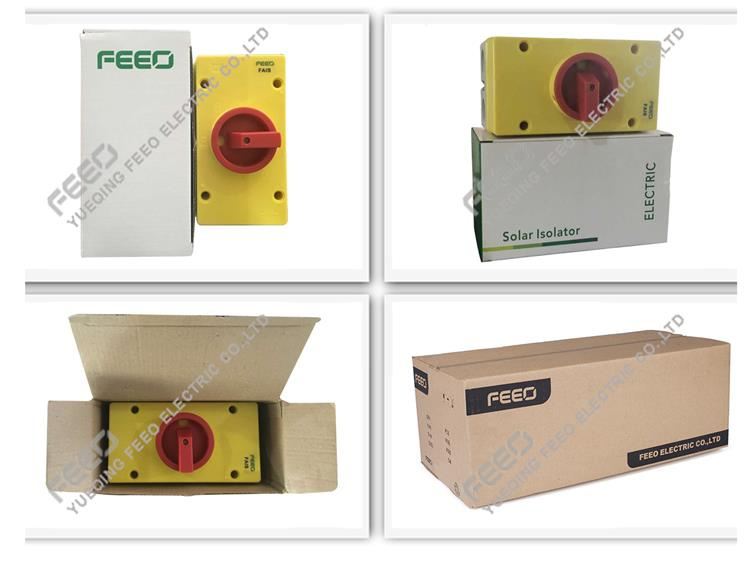

Packaging & ShippingRotary Switch Package:
Standard export carton packing:
AC ISOLATOR with MC4 10pcs/ctn
AC ISOLATOR without MC4 20pcs/ctn
Carton Size 52*40*25CM3
Rotary Switch Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Rotary Switch Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company InformationYUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQQ: If I'm interested in your AC isolator when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q: Can I get a sample before the order because I really don't how is your AC isolator quality?
A: Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: I need your price list of all your products, do you have a price list?
A:We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
