Electrical Power Disconnect Mc4 16A 3p 500VDC Solar Electrical Switch
Product Description
Electrical Switch Features:
1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible red/yellow handle
6.Large padlockable red/yellow or grey/black handles
7.Comprehensive range, 16 to 32A models
8.High IP 66 rating
9.Easy to install and operate
10.10 years warranty
Electrical Switch Parameters:
| Item | Electrical Switch |
| Code | FDIS-32 |
| Rated insulation voltage | 1500VDC |
| Rated heating current | 32A |
| Rated impulse withstand voltage | 8000V |
| Rated short-circuit current | 5000A |
| Protection Degree | IP66 |
| Maximum fuse specifications | 80A |
| Mechanical life | 10000 |
| Operating temperature | "-25°"to +70° |
| Storage temperature | "-40°"to +70° |
| DC poles | 2 or 4 |
| Connection Type | MC4 |
| Class of pollution | 2 |

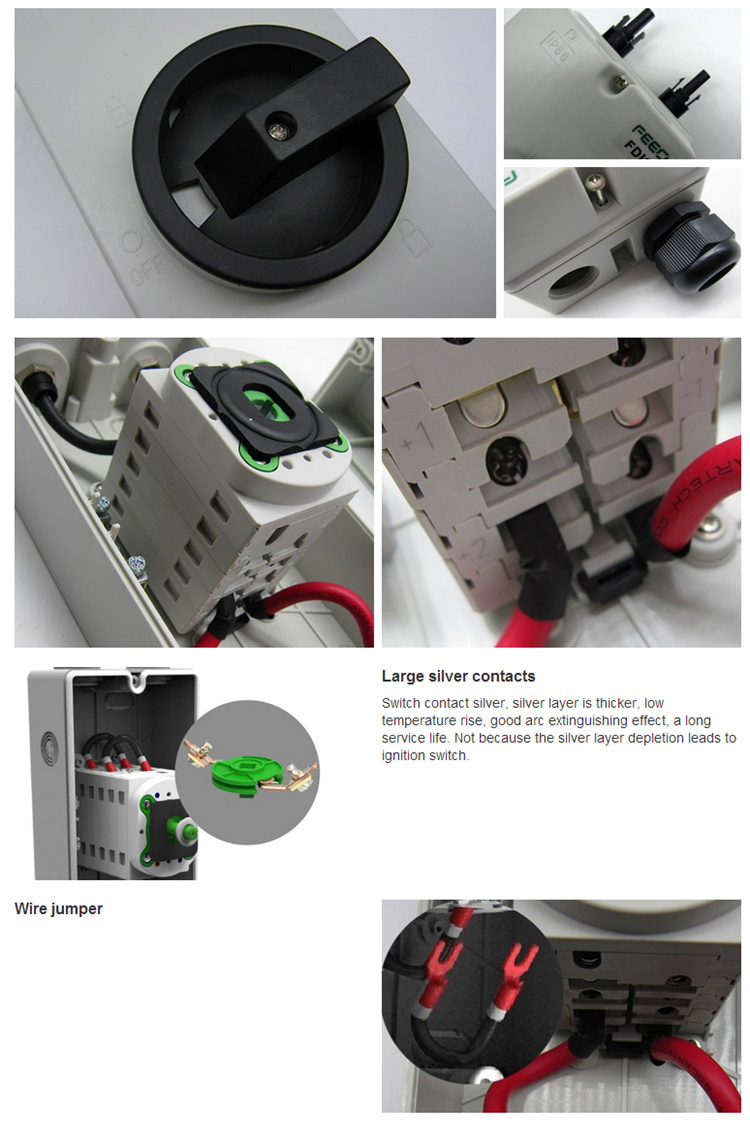

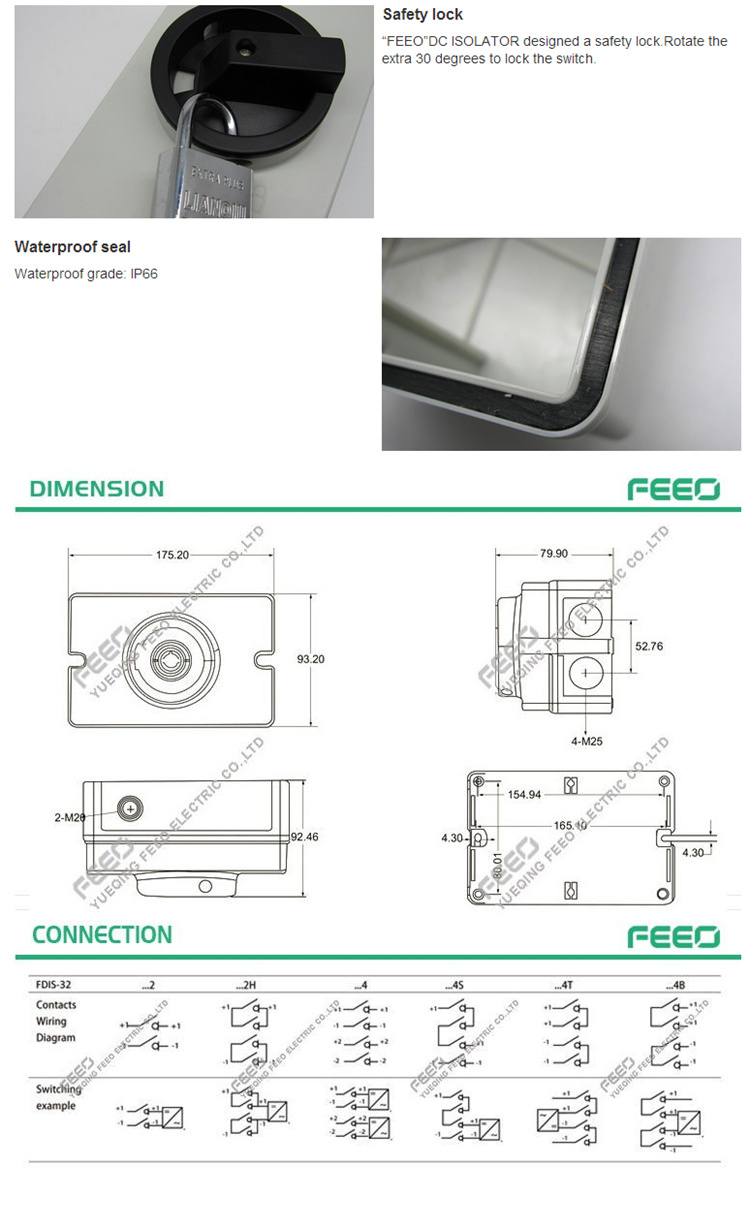

Detailed Images
Packaging & Shipping
Electrical Switch Package:Standard export carton packing:
DC ISOLATOR with MC4 10pcs/ctn
DC ISOLATOR without MC4 20pcs/ctn
Carton Size 52*40*25CM3
Electrical Switch Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Electrical Switch Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Company Information
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your DC Isolator when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your DC Isolator seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our DC Isolator is IP66 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your DC Isolator quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your DC Isolator?
A:We offer one year warranty for our customer.
