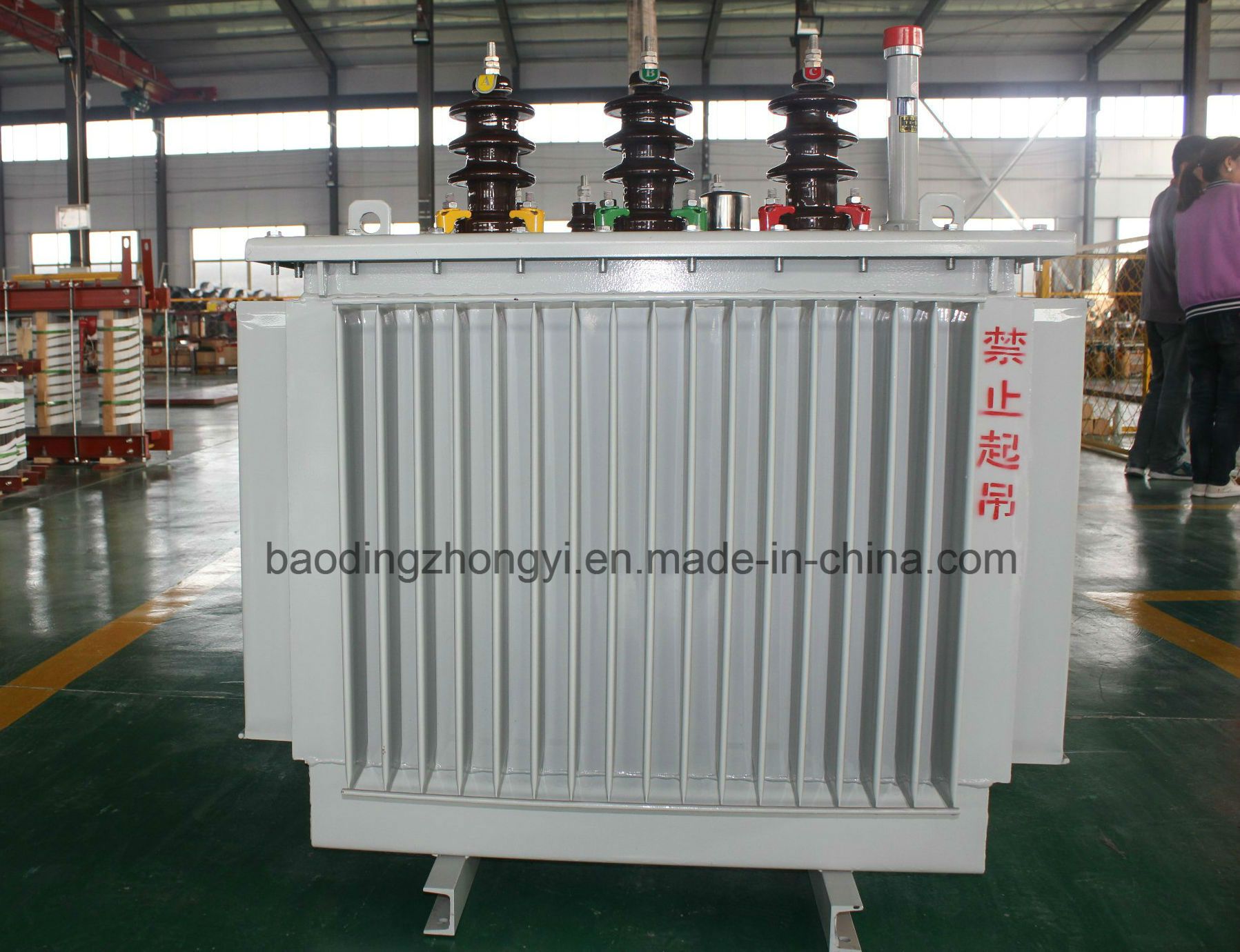

[ Product description] China supplier oil type step up and step down power distribution transformer
| Model Name: | Oil immersed transformer
|
| Advantages: | a. The cancellation of oil conservator makes the transformer more c onvinient to use;
b. The replacement of oil tube into corrugated tank makes the transformer easier to cool;
c. The physical property of corrugated tank increases the reliability of the transformer
d. The adoption of sanforizing makes sure the robustness of long distant transportation. |
| .Applications: | A.Mentallurgy and petrifaction;
B.Electric power system. |
| Detailed images | 1.Reliable Structure:
Spiral loops with longitudinal oil path to produce a better interior cooling effect; Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability; New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.
2.Excellent Materials:
Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
High-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit.Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
High quality rubber sealing material, which can prevent the transformers form aging or leakage. |
[ Technical Parameter ]
6Kv, 10kV & 30kVA-2500kVA Power Transformer With Off Circuit Tap Changer
(kVA)
Rated Capacity |
Voltage Combination | Connection Group Symbol
| No-load Loss R(W) | Load Loss R(W)75ºC | Impedance Voltage (%) | No-load Current(%) | Length L(mm) | Width
W (mm) | Height
H(mm) | · *Gauge Horizontal*Vertical
(mm) | Active parts Weight(Kg) |
Oil Weight(Kg) |
Total Weight(Kg) |
| | (KV)
High Voltage | Tapping Range of High Voltage | (KV)
Low Voltage | | | | | | | | | | | | |
| 30 | 6
6.3
10
10.5 |
±5%
±2×2.5%
|
0.4 |
Dyn11
Yzn11
Yyn0
| 100 | 630/600 |
4.0
| 2.8 | 980 | 735 | 1145 | 400*400 | 178 | 78 | 355 |
| 50 | | | | | 130 | 910/870 | | 2.5 | 1017 | 758 | 1205 | 450*400 | 240 | 92 | 415 |
| 63 | | | | | 150 | 1090/1040 | | 2.4 | 1035 | 785 | 1285 | 450*400 | 285 | 105 | 505 |
| 80 | | | | | 180 | 1310/1250 | | 2.2 | 1065 | 800 | 1290 | 450*400 | 330 | 110 | 540 |
| 100 | | | | | 200 | 1580/1500 | | 2.1 | 1072 | 820 | 1305 | 450*400 | 345 | 116 | 590 |
| 125 | | | | | 240 | 1890/1800 | | 2.0 | 1155 | 1105 | 1310 | 450*550 | 415 | 135 | 705 |
| 160 | | | | | 280 | 2310/2200 | | 1.9 | 1235 | 850 | 1535 | 550*550 | 485 | 155 | 835 |
| 200 | | | | | 340 | 2730/2600 | | 1.8 | 1282 | 860 | 1557 | 550*550 | 582 | 168 | 965 |
| 250 | | | | | 400 | 3200/3050 | | 1.7 | 1310 | 940 | 1605 | 550*550 | 695 | 210 | 1135 |
| 315 | | | | | 480 | 3830/3650 | | 1.6 | 1465 | 1120 | 1915 | 660*650 | 855 | 255 | 1520 |
| 400 | | | | | 570 | 4520/4300 | | 1.5 | 1440 | 1165 | 1725 | 660*660 | 950 | 295 | 1590 |
| 500 | | | | | 680 | 5410/5150 | | 1.4 | 1510 | 1250 | 1845 | 660*650 | 1150 | 320 | 1905 |
| 630 | | | | | 810 | 6200 | | 1.3 | 1650 | 1140 | 1920 | 660*650 | 1500 | 435 | 2015 |
| 800 | | | | | 980 | 7500 |
4.5 | 1.2 | 2125 | 1175 | 2315 | 820*820 | 1910 | 760 | 3510 |
| 1000 | | | | | 1150 | 10300 | | 1.1 | 2150 | 1380 | 2570 | 820*820 | 2125 | 880 | 3850 |
| 1250 | | | | | 1360 | 12000 | | 1.0 | 2355 | 1485 | 2570 | 820*820 | 2605 | 960 | 4610 |
| 1600 | | | | | 1640 | 14500 | | 0.9 | 2385 | 1750 | 2630 | 820*820 | 3125 | 1150 | 5420 |
| 2000 | | | | | 1940 | 18300 | 5.0 | 0.4 | 1940 | 1400 | 1700 | 820*820 | 2420 | 780 | 4200 |
| 2500 | | | | | 2290 | 21200 | | 0.4 | 2050 | 1480 | 1800 | 820*820 | 2560 | 880 | 4680 |
Technical Parameter for S11 Series 20kV Power Transformer With Off Circuit Tap Changer
| (KVA)Rated capacity | Voltage Combination | Connection Group Symbol |
No-load Loss(W) |
Load Loss (W)75ºC | No-load Current (%) |
Short-circuit Impedance(%) |
| |
High Voltage (KV) |
Tapping ranges of High Voltage |
Low Voltage(KV) | | | | | |
| 30 |
20 |
±5%
±2×2.5% |
0.4 |
Dyn11
Yzn11
Yyn0
| 100 | 690/660 | 2.1 |
5.5 |
| 50 | | | | | 130 | 1010/960 | 2.0 | |
| 63 | | | | | 150 | 1200/1150 | 1.9 | |
| 80 | | | | | 180 | 1440/1370 | 1.8 | |
| 100 | | | | | 200 | 1730/1650 | 1.6 | |
| 125 | | | | | 240 | 2080/1980 | 1.5 | |
| 160 | | | | | 290 | 2540/2420 | 1.4 | |
| 200 | | | | | 340 | 3000/2860 | 1.3 | |
| 250 | | | | | 400 | 3520/3350 | 1.2 | |
| 315 | | | | | 480 | 4210/4010 | 1.1 | |
| 400 | | | | | 570 | 4970/4730 | 1.0 | |
| 500 | | | | | 680 | 5940/5660 | 1.0 | |
| 630 | | | | | 810 | 6820 | 0.9 |
6.0 |
| 800 | | | | | 980 | 8250 | 0.8 | |
| 1000 | | | | | 1150 | 11330 | 0.7 | |
| 1250 | | | | | 1380 | 13200 | 0.7 | |
| 1600 | | | | | 1660 | 15950 | 0.6 | |
| 2000 | | | | | 1950 | 19140 | 0.6 | |
| 2500 | | | | | 2340 | 22220 | 0.5 | |
[ Packing & delivery ]
Safe , timely, efficient
Long time shipment & seaworthy wooden box |
| Wooden package optional: | 1,choose one unit/ wooden box |
| 2,choose 2units/ wooden box to save cost |
[ Why choose us ]
Baoding zhongyi electrical material manufacturing co., ltd.Mainly produces:Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.The hoisting, tooling and testing equipments are complete.Our company has passed the iso9001-2015 international standard quality management system certification.All performance indicators of the products have reached the relevant national standards and international standards.
Baoding zhongyi electrical material manufacturing co., ltd.Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
[ FAQ ]
| Are you manufacturer or trading company? | Hebei zhongyi group is a specialized manufacturer with over 20years production experience, and have our own trade mark "zhongyi group".
|
| How do you control the quality ? | Professional QC team comply with tqm insure you the quality.Each step is in compliance to the standards,at the same time ,we will take photos or shoot video for you.
|
| What about lead or shipping time? | The lead time depends on the quantity you ordered, generally within 20-30 days upon receipt of advance payment.
|
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
