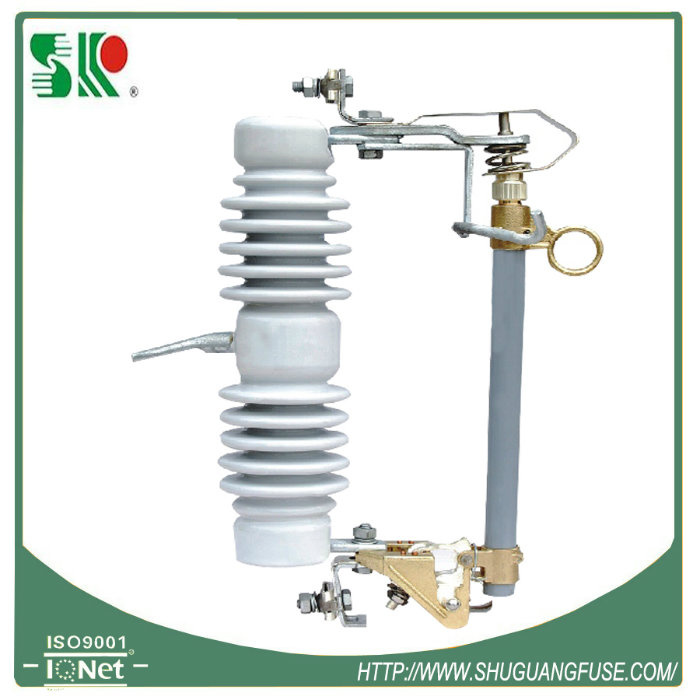

China Supplier Practical Expulsion Symbol Mv&Fuse Thermal Drop out Cutout

Name: China Supplier Practical Expulsion Symbol Mv&Fuse Thermal Drop out Cutout
Brand: all-electronics-online.com
SKU: 835707945
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Outdoor electrical brass parts for fuse cutout

Product Description
1.Made of high quality material, it has long service life. The fusant is made of pure copper strip. The fusion tube is made of high strength china. The extinguishing medium is made of pure quartz sand.
2.Easy installation and maintenance. The terminal of fusant contacting with the end-plate (or the connecting plate) use the technology of spot welding.
3.Safe indication. The fuse with the indicator can be show the fusing when the indicator pop-up.
4.Durable and reliable

Specifications

TYPE	RATED VOLTA GE(KV)	RATED CURRE NT(A)	BREAK ING CURRE NT(A)	LEAKA GE DISTAN CE(MM)	WEI GHT (KG)	DIMENSIO NS(CM)
PD-1	12	100	6300	250	6.5	40 × 36 × 11.5
PD-1	12	200	10000	250	6.5	40 × 36 × 11.5
PD-1	15	100	8000	320	7.5	50 × 36 × 12.5
PD-1	15	200	12500	320	7.5	50 × 36 × 12.5
PD-1	24	100	8000	530	12	50 × 38 × 16
PD-1	24	200	12500	530	12	50 × 38 × 16
PD-1	33	100	10000	720	15	64 × 35 × 18
PD-1	33	200	12500	720	15	64 × 35 × 18
PD-1(F)	15	100	8000	320	8	58 × 40 × 15
PD-1(F)	15	200	12500	320	8	58 × 40 × 15
PD-1(X)	15	100	8000	320	7.5	50 × 36 × 12.5
PD-1(X)	15	200	12500	320	7.5	50 × 36 × 12.5
PD-2	12	100	6300	250	40	40 × 36 × 11.5
PD-2	12	200	10000	250	40	40 × 36 × 11.5
PD-2	15	100	8000	320	45	50 × 36 × 12.5
PD-2	15	200	12500	320	45	50 × 36 × 12.5
PD-2	24	100	8000	540	65	50 × 36 × 16
PD-2	24	200	10000	540	65	50 × 36 × 16

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Trading Process

Contact Us

Prod Model:	PD-2
Rated Voltage:	12/15/24/33/36kv
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Fuse Cutout
Shape:	Cutout
Fusing Device:	Porcelain
Standard:	IEC

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
