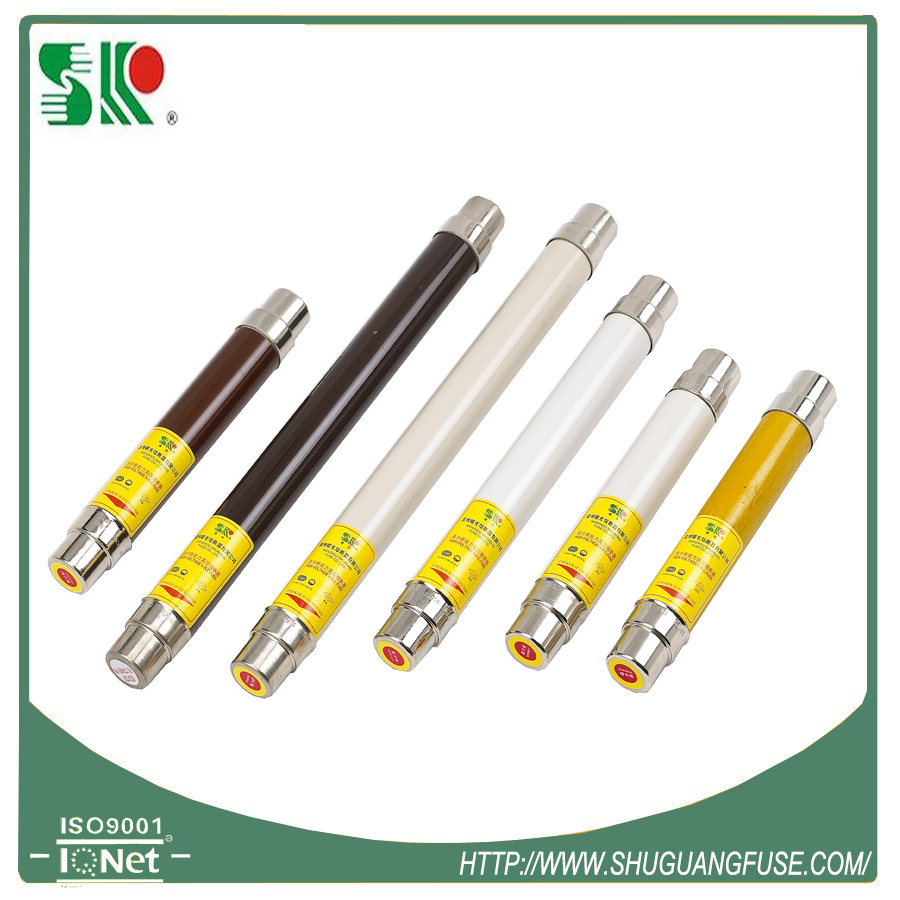

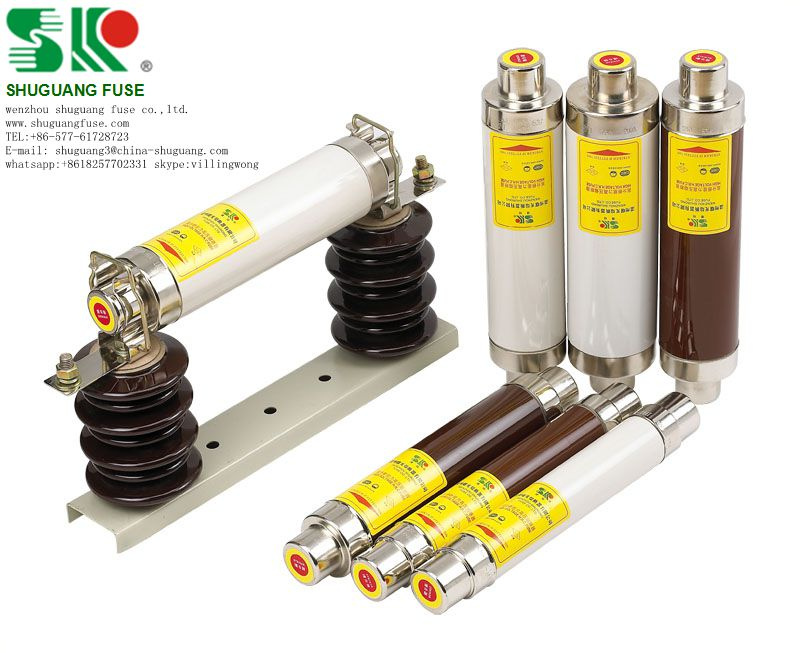

High Voltage Current-Limiting Fuse Used for Transformer Protection

Name: High Voltage Current-Limiting Fuse Used for Transformer Protection
Brand: all-electronics-online.com
SKU: 807339595
Availability: InStock
Rating: 4.6 (90 reviews)

Price:	US $ 10-40/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Manufacturers on XRNT Plug-in Type fuses for transformer protection

Product Description

The Ceramic Fuse Holder can be used in indoor system of Ac50Hz and rated voltage of 7.2-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circuit break.(Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and lEC282-1).

current-limiting fuses has many merits as high current-limiting ablilty, high breaking capacity, quick and punctual in action, reliable in performance.

Specifications

TYPE	RATED VOLTAGE(KV)	RATED CURRENT(A)	LENGTH	DIAMETER	RATED CUTOFF CURRENT(KA)
SDO*J	7.2	3.15,6.3,10,16	192	51	50
SFO*J	7.2	20,25,31.5,40,50,63	192	76
SDL*J	12	3.15, 6.3,10,16,20,25,31.5, 40,50,63	292	51
SFL*J		50,63,80,100	292	76
SKL*J		125	292	76
SXL*J		160,200	292	88
SDM*J		6.3,10,16,20	442	51
SDM*J		25,31.5,40,50,63	442	63
SFM*J		63,80,100,	442	76
SFM*J		125,160	442	88
SXM*J		200,250	442	88
SDL*J	24	3.15,6.3,10,16	292	51
SFL*J		20,25,31.5,40,50,63	292	76
SDM*J		3.15,6.3,10,16,20,25,31.5,40	442	51
SFM*J		50,63,80,100	442	76
SXM*J		125,160	442	88
SDQ*J	40.5	10,16,20	537	51	31.5
SFQ*J		25,31.5,40,50	537	76
SXQ*J		63,80	537	88

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Trading Process

Contact Us

Prod Model:	xrnt series
Production Capacity:	50000PCS/Year
Hsc:	8536100000
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	ISO/Ce

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
