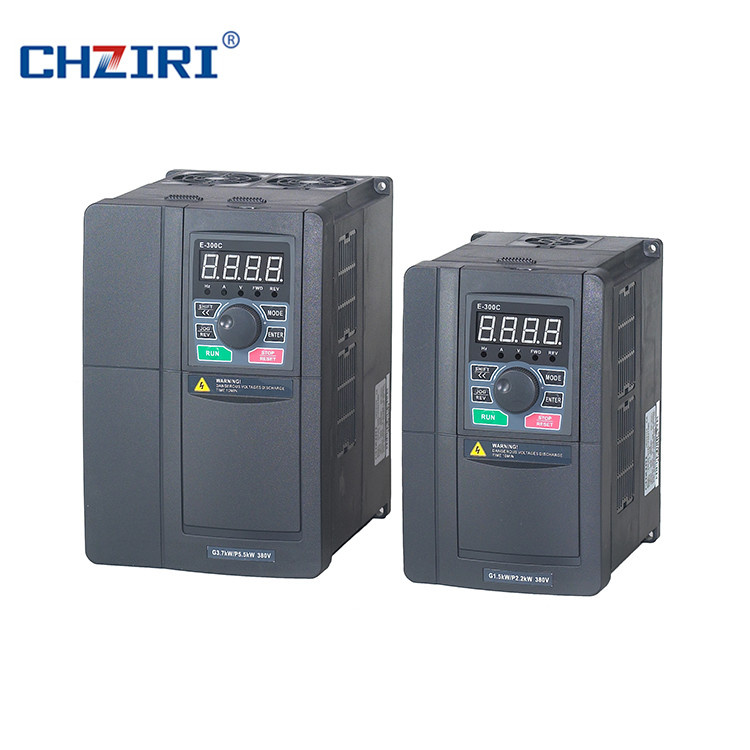

| Prod Model: |
ZVF300-G1R5T4MD, ZVF300-G0R7T4MD, ZVF300-G2R2T4MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power: |
1.5kw |
| Model: |
Zvf300-G1r5t4md |
| Input Voltage: |
380V,440V |
| Input Frequency: |
50/60Hz |
| Output Frequency: |
0.00-600Hz |
| Modulation Mode: |
Optimal Space Voltage Vector PWM Modulation |
| Control Mode: |
SVC, V/F Control . Torque Control |
| Gross Weight For One Carton: |
17kg |
| Net Weight 1PCS: |
3.5kg |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Chziri |
Product Description
1. ZVF300 Frequency Converter is suitable for all kinds of devices such as metallurgy, plastic, textile machinery, paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment, printing mechanism, packing machinery, blower fan, water pump, hoisting equipment, building materials and so on for driving and speeding control of AC asynchronous motor.
2.ZVF300 Frequency Converter has the good effect energy conservation, fine speed adjustment performance, stable operation, stable operation, electrical machinery soft start, protect function and self diagnostics fault and other advantages.
Main Features for ZVF300 Series Frequency Converter
| Item | Item Description |
| Control Function | Automatic energy-saving operation | Auto optimize V/F curve according to the load changes to realize the energy saving operation . |
| Auto voltage regulation (AVR) | When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage. |
| Built-in PID | This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control . |
| Operation Function | Operating command | Operation panel control ,external terminal control and COM control |
| Frequency setting | Keypad potentiometer setting , operation panelsetting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on. |
| Input Signal | Forward/Reverse signal,multi-speed signal , fault signal ,
reset signal etc. |
| Output signal | Programmable relay, open collector output , Fault signal output. |
| Multi-function analog and digital output terminal | This can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output. |
| Braking function | Dynamic braking | With an external braking resistor, the maximum braking torque may reach 100%. |
| DC Braking | This can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence. |
| Other Function | Skip frequency,Jog function, Counter ,Rotation speed tracking, Momentary power loss restart ,Frequency upper/lower limiting, Acceleration/ Deceleration mode can be adjusted ,Frequency meter and Voltmeter output ,Multi-speed/ program running ,Two wire mode/ three wire mode control ,Wobble frequency control, Multi-function input terminal selection , Fault auto reset,RS485 serial communication . |
| Protection Function | Input phase loss protection, Over current protection ,Overload protection, Over voltage protection ,Under voltage protection, Over heat protection ect. |
Product DescriptionZVF330 Series Mini Type AC Drive ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission. Main Features of AC drive ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Guide Model for AC drive

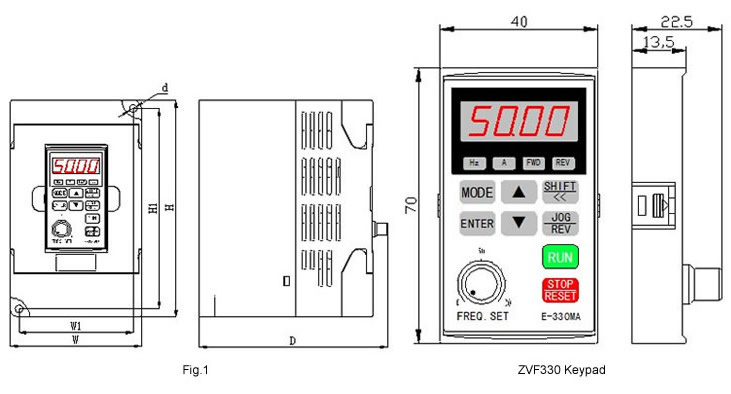

| Inverter Model | Voltage | Power | Current | Dimension (mm) | Packing Size(mm) | G.W.(kg) |
| (V) | (KW) | ( A) | H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V | 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M0R7S2MD | 0.75 | 4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2SD | 1.5 | 7.5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2SD | 2.2 | 10 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M0R7T4SD | 380V | 0.75 | 2.3 | 151 | 140 | 100 | 89.5 | 128.5 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M1R5T4SD | 1.5 | 3.7 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2T4SD | 2.2 | 5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |

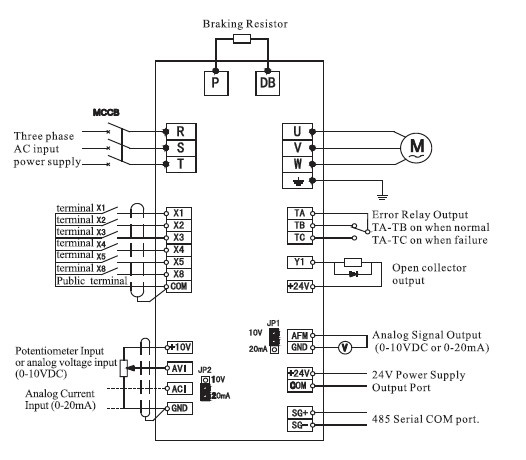

Inverter's Standard Wiring Diagram
ZVF330 AC Drive Application RangePacking machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.
Why you choose the products from CHZIRI Electrical ?
- low voltage frequency inverter and soft starter manufacturer and exporter .
- More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
- CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
- Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
- CHZIRI frequency inverters and soft starters are easy and convenient to operate .
- CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
- CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
- CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
- CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
- CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
- CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
- OEM service can be offered .
- Prompt delivery :5-12 days after receipt your money.
- Warranty time :12 ~16 months .
.
