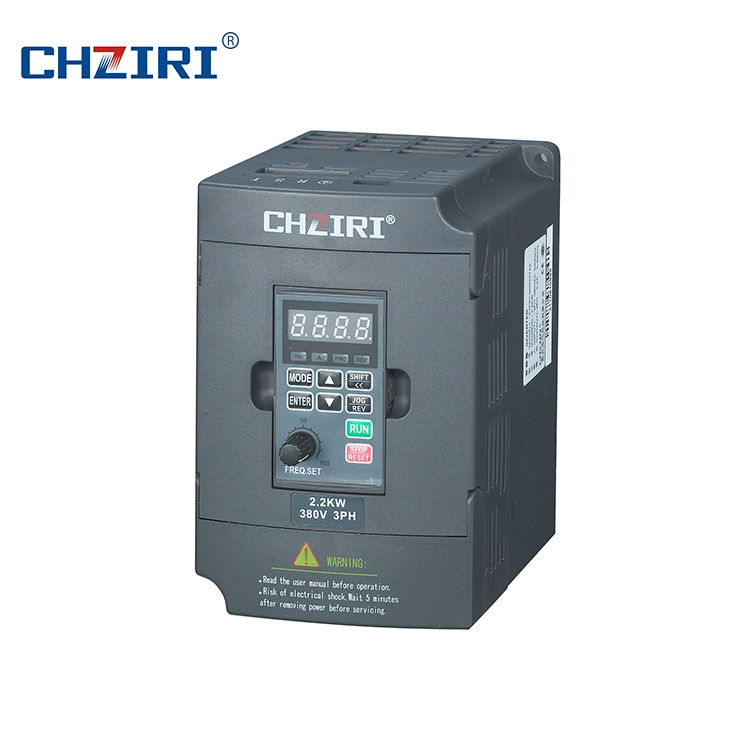

Chziri 1HP Fequency Drive with Built-in RS485 Port Zvf300-G0r7t4MD

Main Features of frequency inverter
ZVF300 Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .

Output frequency :0-600Hz.
Multiple password protection mode
Remote control operation keypad, convenient for remote control.
V/F curve &multi-inflection point setting, flexible configuration .
Keyboard parameter copy function . easy to set the parameters for multi-inverters .
Wide industry application . to expand special function according to different industries.
Multiple hardware and software protection and optimized hardware for anti-interference technology.
Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Guide Model for Frequency Converter


Inverter Model	Power (kW) G/P	Current (A)	Dimension (mm)						Figure
			H	H1	W	W1	D	d
ZVF300-G0R4S2MD	0.4	2.4	185	175	118	108	170	4	Fig.1
ZVF300-G0R7S2MD	0.75	7.5
ZVF300-G1R5S2MD	1.5	7.0	185	175	118	108	190	4
ZVF300-G2R2S2MD	2.2	10
ZVF300-G0R7T4MD	0.75	2.5	185	175	118	108	170	4	Fig.1
ZVF300-G1R5T4MD	1.5	3.7
ZVF300-G2R2T4MD	2.2	5.0
ZVF300-G3R7/P5R5T4MD	3.7/5.5	9.0/13	215	205	145	135	193	4
ZVF300-G5R5/P7R5T4MD	5.5/7.5	13/17
ZVF300-G7R5/P011T4MD	7.5/11	17/25	265	253	185	174	215	5.5
ZVF300-G011/P015T4MD	11/15	25/33
ZVF300-G015/P018T4MD	15/18.5	33/37	380	360	220	140	230	6	Fig.2
ZVF300-G018/P022T4MD	18.5/22	37/45
ZVF300-G022/P030T4M	22/30	45/60	460	443	260	177	268	6
ZVF300-G030/P037T4M	30/37	60/75
ZVF300-G037/P045T4M	37/45	75/90	620	603	265	182	300	8
ZVF300-G045/P055T4M	45/55	90/110
ZVF300-G055/P075T4M	55/75	110/150
ZVF300-G075/P090T4M	75/90	150/176	720	702	365	240	360	9
ZVF300-G090/P110T4M	90/110	176/210
ZVF300-G110/P132T4M	110/132	210/253
ZVF300-G132/P160T4M	132/160	253/300	1190		493		390		Fig.3
ZVF300-G160/P185T4M	160/185	300/340
ZVF300-G185/P200T4M	185/200	340/380
ZVF300-G200/P220T4M	200/220	380/420	1600		660		415
ZVF300-G220/P250T4M	220/250	420/470
ZVF300-G250/P280T4M	250/280	470/520
ZVF300-G280/P315T4M	280/315	520/600
ZVF300-G315/P350T4M	315/350	600/640	1750		750		470
ZVF300-G350/P400T4M	350/400	640/690
ZVF300-G400/P450T4M	400/450	690/790
ZVF300-G450/P500T4M	450/500	790/860	1900		950		520		Fig.4
ZVF300-G500/P560T4M	500/560	860/950
ZVF300-G560/P630T4M	560/630	950/1100
ZVF300-G630T4M	630	1100

Why you choose the products from CHZIRI Electrical ?
1.Low voltage frequency inverter and soft starter manufacturers and exporter .
2.More than 12 years experience and professional. we want to be the best to serve our clients.
3.CHZIRI frequency inverters and soft starters are easy and convenient to operate .
4.We can also provide clients with customized control panel.
5.CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .
6.CHZIRI frequency inverter and soft starters are certificated with CE and ISO9001.
7.CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
8.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost have advantage .
9.CHZIRI Frequency Inverters and Soft starters are selling to all over the world .
10.OEM  service can be offered .
11.Prompt delivery :7-15 days .
12.Warranty time :12 months .
ZVF330  Series Mini Type AC Drive

ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for  small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.

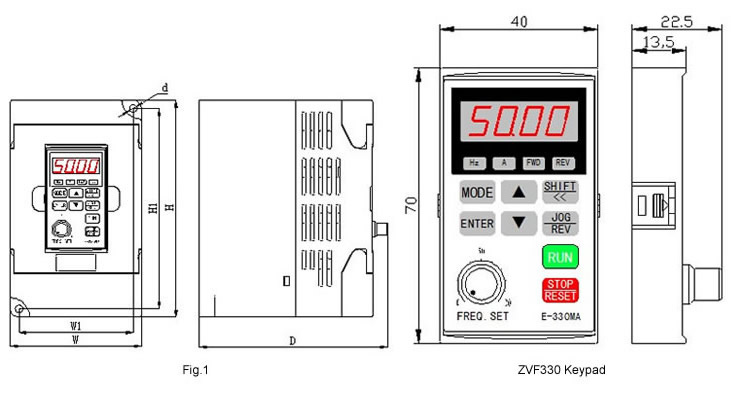

AC Drive outline Dimension (Unit:mm)






Specification for ZVF330  Series Mini Type AC Drive

Inverter Model	Voltage	Power	Current	Dimension (mm)						Packing Size(mm)	G.W.(kg)
	(V)	(KW)	( A)	H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	141.5	130.5	85	74	125	5	570*380*460mm/16PCS	25kg
ZVF330-M0R7S2MD		0.75	4	141.5	130.5	85	74	125	5
ZVF330-M1R5S2SD		1.5	7.5	151	140	100	89.5	128.5	5
ZVF330-M2R2S2SD		2.2	10	151	140	100	89.5	128.5	5



Main Features of AC drive
     ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .

1. Output frequency :0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration .
5. Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6. Wide industry application . to expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.  Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
12. Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

CHZIRI Package for AC Drive 2.2kW


 ZVF330 AC Drive Application Range
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.

CHZIRI Clients for AC Drive


FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
