| Prod Model: |
ZVF9V-P1320T4M, ZVF9V-P1600T4M, ZVF9-P1850T4M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.75kw~400kw |
| Warranty Times: |
12 Months |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Slip Frequency Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
Product Description

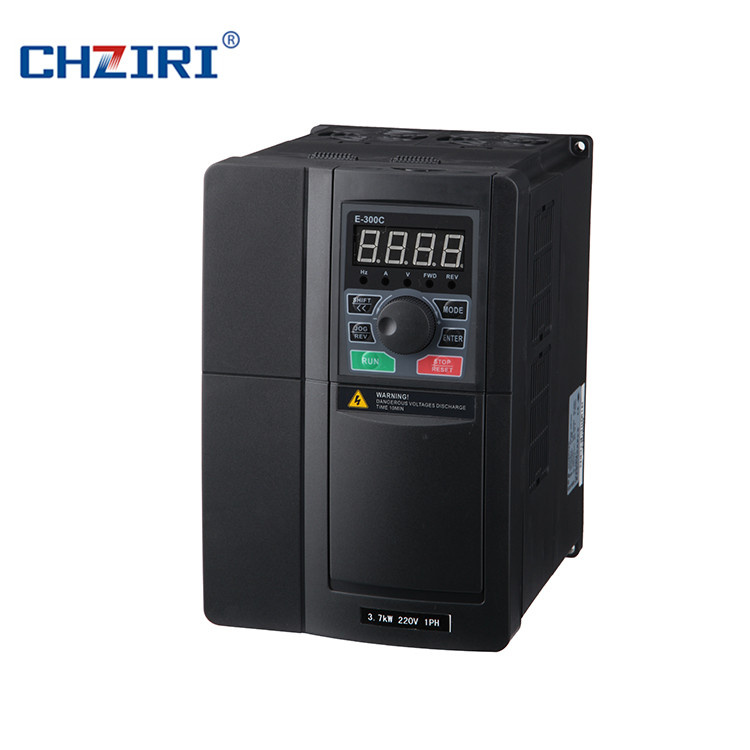

ZVF9V-P1320T4M is Blower/ Water Pump Type Inverter.
The ZVF9V-P series frequency inverter suitable for many kinds of blower/water pump model of high quality, low noise and multi-purpose.
This inverters has the following characteristic:
1. Adopt the Magnetic Flux Vector PWM control algorithm, advanced technique, resonant wave of output current is few and high efficiency.
2. Good at characteristic of low frequency operation, It can output of torsion on low frequency reting.
3. Maximum carrier wave frequency are 13kHz, It can oeration with Static sound
4. Numeral keyboard, simulation Potentiometer, Exterior intelligence terminal, COM and etc that so many kinds of input mode. The control mode is extremely agility.
5. Prolific function, for example: Voltage control in automatism, dead-time compensation, automatic slip compensation and DC braking, restarting after power interruption and etc. It can according to the require of control of high precision and complexity.
6. Program operation(multiple speed), Pendulum-frequency operation. In sets at the PI regulator, It can structure expediently to satisfy different need automatization control system.
7. In sets RS485 standard communication interface, It can realize the networking control or the proportion gearing control.
8. Consummation malfunction management and protection function, and guarantee the frequency inverter and motor are not damaged in any malfunction situation.
9. Advanced technology, compact-structure, and the product contour artistic is natural.
From more details, Feel free to contact us!

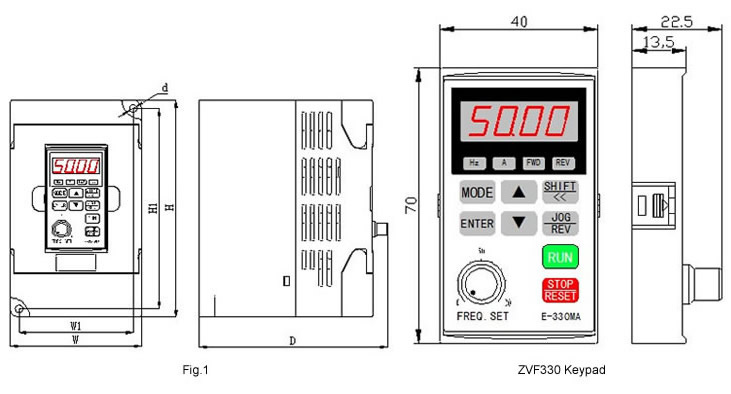

Inverter Model | Power
(KW) | Current
(A) | Dimension (mm) |
| H | W | A | B | D | d |
| ZVF9V-P0015T4MDR | 1.5 | 3.7 | 185 | 175 | 118 | 108 | 175 | 4 |
| ZVF9V-P0022T4MDR | 2.2 | 5.0 |
| ZVF9V-P0037T4MDR | 3.7 | 9.5 | 215 | 205 | 145 | 135 | 178 | 4 |
| ZVF9V-P0055T4MDR | 5.5 | 13 |
| ZVF9V-P0075T4MDR | 7.5 | 17 |
| ZVF9V-P0110T4MDR | 11 | 25 | 265 | 253 | 185 | 174 | 200 | 5.5 |
| ZVF9V-P0150T4MDR | 15 | 33 |
| ZVF9V-P0185T4MDR | 18.5 | 39 | 380 | 360 | 210 | 160 | 204 | 10 |
| ZVF9V-P0220T4M | 22 | 45 | 470
| 450 | 270 | 206 | 255 | 10 |
| ZVF9V-P0300T4M | 30 | 60 |
| ZVF9V-P0370T4M | 37 | 75 |
| ZVF9V-P0450T4M | 45 | 90 | 630 | 605 | 360 | 270 | 300 | 10 |
| ZVF9V-P0550T4M | 55 | 110 |
| ZVF9V-P0750T4M | 75 | 150 |
| ZVF9V-P090T4M | 90 | 176 | 750 | 726 | 470 | 376 | 346 | 12 |
| ZVF9V-P1100T4M | 110 | 210 |
| ZVF9V-P1320T4M | 132 | 250 |
| ZVF9V-P1600T4M | 160 | 310 | 1270 | | 574 | | 380 | |
| ZVF9V-P1850T4M | 185 | 360 |
| ZVF9V-P2000T4M | 200 | 380 |
| ZVF9V-P2200T4M | 220 | 415 | 1700 | | 710 | | 410 | |
| ZVF9V-P2500T4M | 250 | 470 |
| ZVF9V-P2800T4M | 280 | 510 |
| ZVF9V-P3150T4M | 315 | 585 |
| ZVF9V-P3500T4M | 350 | 645 | 2020 | | 750 | | 550 | |
| ZVF9V-P3750T4M | 375 | 675 |
| ZVF9V-P4000T4M | 400 | 750 |
- Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .- What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .- What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.- What's your warranty terms?
We offer 12 months warranty time .- Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .- Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .- How does your factory do the quality control?

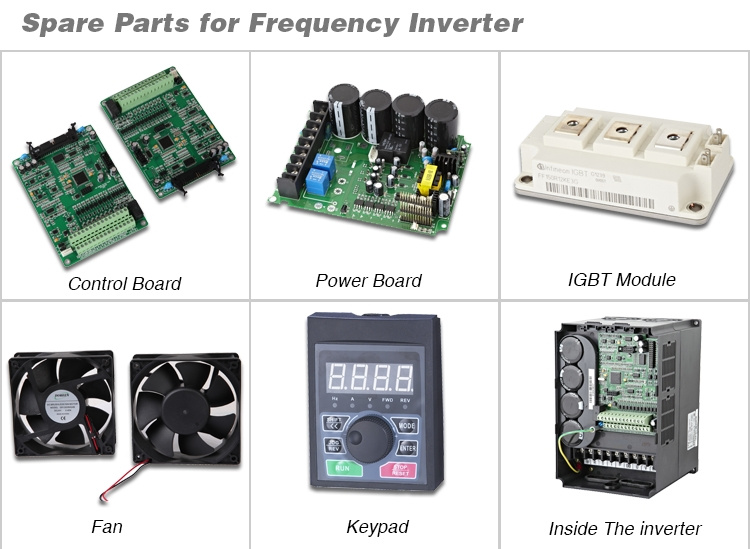

Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .- Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.9.I would like to know if you have a partner for export?Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..10. Can you make the inverter and soft starter control boards (switchgear)?Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .11.Can the inverter connect with computer?Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. 12.How can I trust you ?The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
