Multi-Function input signal: Multi-phase speed, counter, Program running, Communication Running.
Multi-Function output signal: Failure, running k countering, Frequency arrival m Program running.
Analogy output signal: Running Frequency, Output Voltage, current, motor rotation speed.
Other function: AVR, Over Voltage, over current stall, reverse forbid.
Protection Function: Over voltage, over current, overload, over thermal, short cut.
Cooling code: Air cooling code
| Input Voltage(V) | Output Voltage (V) | Power Range (kW) |
| Single phase 220V± 20% | Three phase 0~input voltage | 0.75kW~2.2kW |
| Three phase 380V± 20% | Three phase 0~input voltage | 0.75kW~2.2kW |
| Overload Capacity : 150% 1 minute ;180% 1 second ;200% transient protection . |

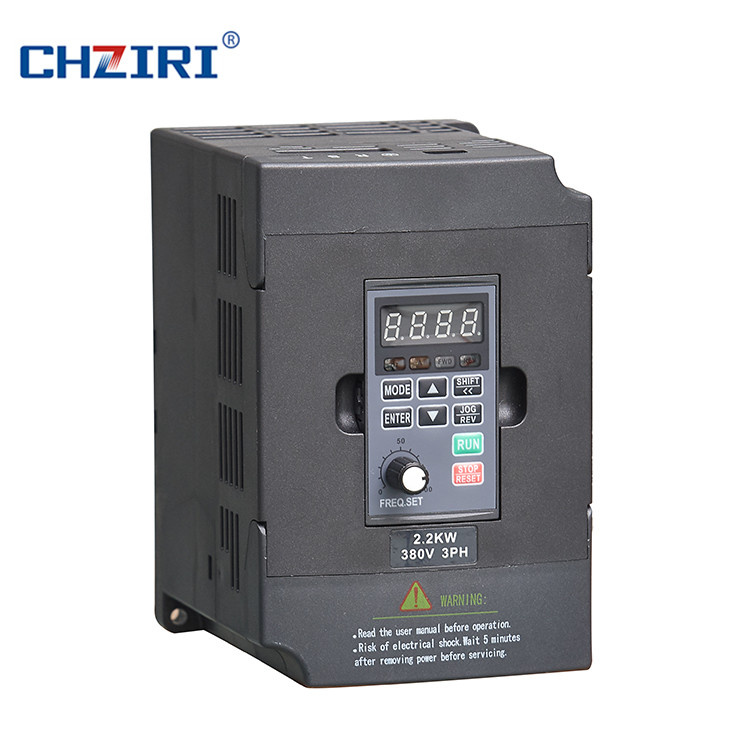

Technical Indications for Mini Type Frequency Converter ZVF9V-M Series.
1.Control Mode: SAPWM vector control .
2.Output Frequency range: 0.00~400.00HZ
3.Operation command selection : Keyboard control ,Terminal Control, Multi-stage control , External analog voltage input control . External analog current input control .RS485 control .
4.Frequency setting Mode: Digit keypad setting, Analog setting ( current , voltage signal ). Remote communication setting , Multi-step speed setting. Terminal assembled setting . PID closed-loop setting.
5.Start torque control :0-20% can be adjusted .
6.Carrier frequency range:1.0K~15KHz
7.DC current braking : Start and stop DC current braking can be adjusted solely .
8. Automatism voltage Modulate : ( AVR): Automatically keep output voltage stable when input voltage fluctuation .
9.Automatic limiting current : can limit the Maximum current of the motor. And can protect the inverter and the motor reliably.
10. PLC programmable control: Single Cycle, continuous loop, wobble control and are suitable for all kinds of applications
11.Input ,output terminal are programmable and It's convenient for user.
12.Analog signals output , voltage and current can be selected .
Model Selection for Mini Type Frequency Converter ZVF9V-M Series
| Inverter Model | Voltage
(V) | Power
(KW) | Current
( A) | Dimension (mm) |
| H | W | A | B | D | d |
| ZVF9V-M0007S2 | 220V
| 0.75 | 4.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0015S2 | 1.5 | 7.5 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0022S2 | 2.2 | 10 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0007T4S | 380V | 0.75 | 2.3 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0015T4S | 1.5 | 3.7 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0022T4S | 2.2 | 5.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
ZVF300 Series High Performance VFD
ZVF300 series VFD inverter is ZIRI Electrical developed the new type frequency inerter . General type and fan/pump type are in one model . support Modbus communication protocol. can be widely used to control and drive the speed of induction motors and synchronous motor . superior performance, abundant functions, easy operation, high accountability and a complete range of specifications.Can fully meet the individual needs of customers in the industry.Specification for ZVF300 VFD
| Input Voltage (V) | Output Voltage(V) | Power Range (kW) |
| Single phase 220V± 20% | Three phase 0~Input Voltage | 0.4kW~3.7kW |
| Three phase 380V ± 20% | Three phase 0~Input Voltage | 0.75kW~630kW |
| Overload capacity :150% 1 minute; 180% 1 second;200% transient protection |
Main Features of ZVF300 VFD
ZVF300 Series VFD are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Application Range of ZVF300 VFD

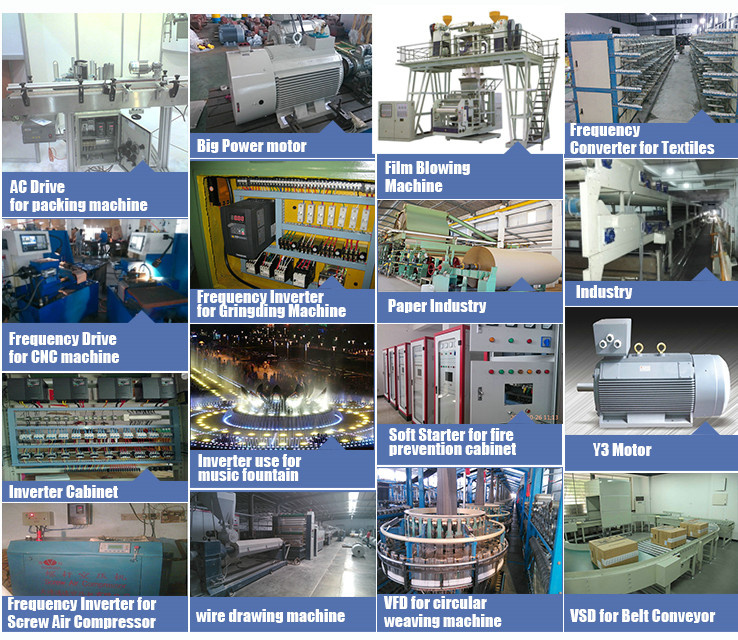

CHZIRI ZVF300 VFD is suitable for all kind of mechanical devices such as metallurgy, plastic ,textile .food . petrification ,paper making , drug manufacture .printing . construction materials and hoisting for driving and speeding control of AC asynchronous motor .
Guide Model for Frequency Inverter
| Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |
| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | 4 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 | 460 | 443 | 260 | 177 | 268 | 6 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 300 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 360 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1190 | | 493 | | 390 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1600 | | 660 | | 415 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1750 | | 750 | | 470 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P450T4M | 400/450 | 690/790 |
| ZVF300-G450/P500T4M | 450/500 | 790/860 | 1900 | | 950 | | 520 | |
Fig.4 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |
CHZIRI Office and Workshop
Why you choose the products from CHZIRI Electrical ?
1.Low voltage frequency inverter and soft starter manufacturers and exporter .
2.More than 12 years experience and professional. we want to be the best to serve our clients.
3.CHZIRI frequency inverters and soft starters are easy and convenient to operate .
4.We can also provide clients with customized control panel.

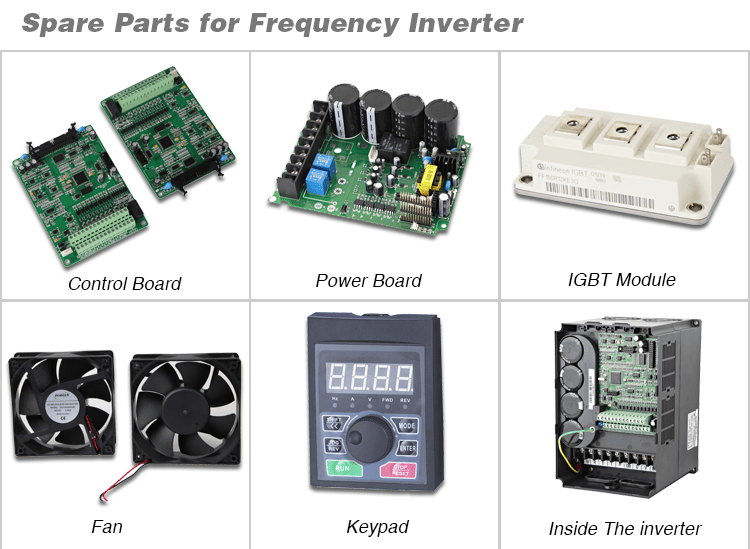

5.CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .
6.CHZIRI frequency inverter and soft starters are certificated with CE and ISO9001.
7.CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
8.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost have advantage .
9.CHZIRI Frequency Inverters and Soft starters are selling to all over the world .
10.OEM service can be offered .
11.Prompt delivery :7-15 days .
12.Warranty time :12 months .For more details .Feel free to contact with ZIRI Electrical.For more details, Welcome to contact us!
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
