| Prod Model: |
ZVF200-M0015S2MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power: |
1.5kw |
| Input Voltage: |
Single Phase 220V |
| Input Frequency: |
50/60Hz |
| Output Voltage: |
Three Phase 0~Input Voltage VAC |
| Output Frequency: |
0.00~400.00Hz |
| Overload Capacity: |
150% 1 Minute; 180% 1 Second;200% Transient |
| Modulation: |
Optimal Space Voltage Vector PWM Modulation |
| Control Method: |
Speed Sensorless Vector Control (SVC) |
| Brand: |
Chziri |
Product Description

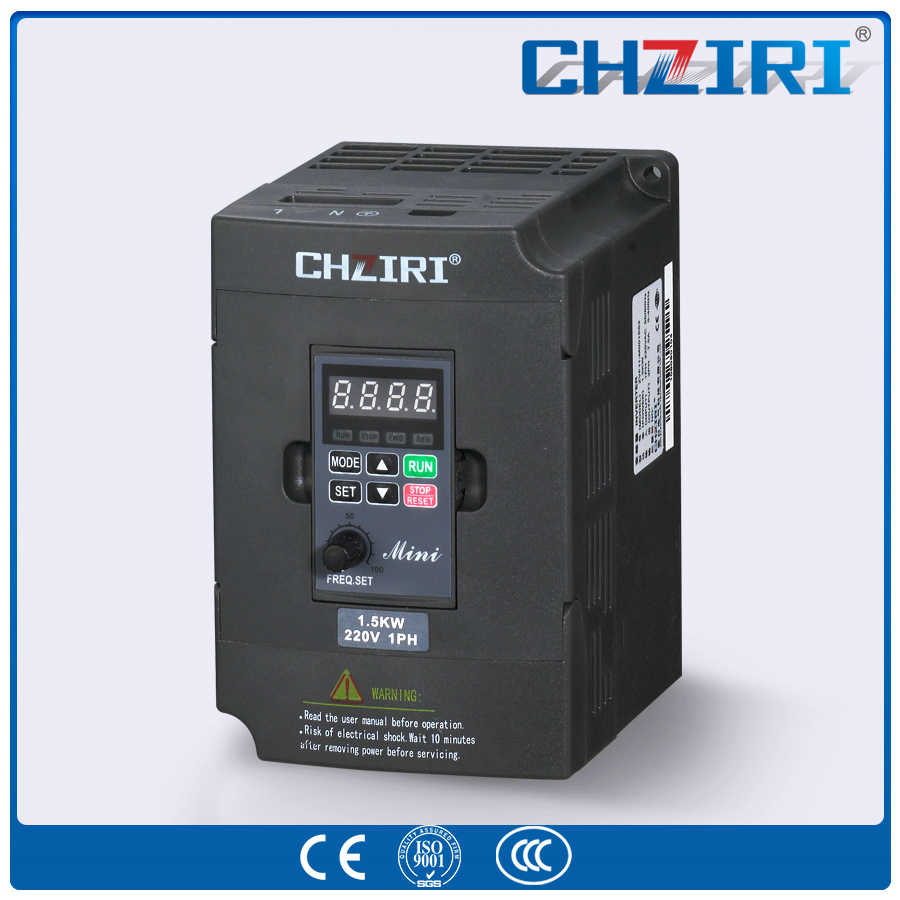

ZVF200-M Series Frequency Inverter is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
1:Control Mode: SAPWM vector control.
2:0.00~400.00Hz Output frequency range:0.00~400HZ
3: Instruction Passage Mode: Operator Panel , Terminal Control, Long-distance communication control.
4:Frequency setting the signal :number keyboard , Analog setting ( current , voltage signal ). Long-distance setting , Multi-Phase speed setting. Terminal assembled . PID closed-loop setting.
5:big Jump-start torque: 0.5 HZ/150%
6:1.0K~10.0KHz Carrier frequency range:1.0K~10KHz
7: DC Current Braking : Start and Stop DC current braking can be adjusted solely.
8:Speed control precision: -0.5%/+0.5% the top speed (SVC) Automatism voltage modulate: ( AVR): Can keep output voltage invariableness automatically when the power net and voltage changes.
9:Automatism restrict current : can restrict the Maximum current of the motor. And can protect the inverter and the motor reliably.
10:PLC program control: Single Cycle, continuous loop, wobble control and are fit for all kinds of field's demand.
11: Input ,output terminal are programmable and are convenient for user
12: Analog signals output , voltage and current can be selected.

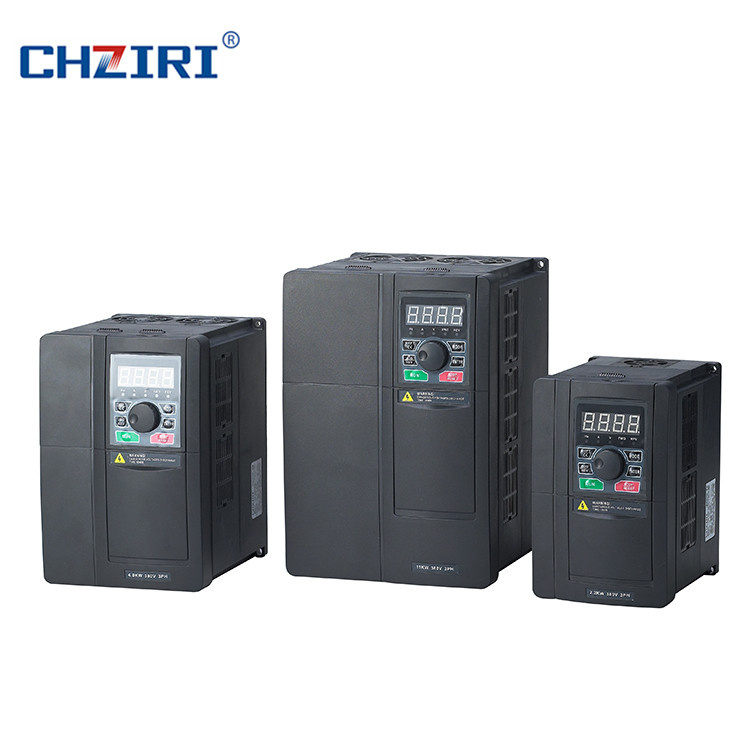

VVVF drive model selection
| Inverter Model | Voltage
(V) | Power
(KW) | Current
( A) | Dimension (mm) | Figure |
| H | W | A | B | D | d |
| ZVF200-M0004S2MD |
220V
| 0.4 | 2.5 | 141.5 | 85 | 130.5 | 74 | 113 | 5 | Fig.1 |
| ZVF200-M0007S2MD | 0.75 | 5.0 | 141.5 | 85 | 130.5 | 74 | 113 | 5 |
| ZVF200-M0015S2MD | 1.5 | 7.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0022S2MD | 2.2 | 10 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0007T4MD |
380V | 0.75 | 2.3 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0015T4MD | 1.5 | 3.7 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0022T4MD | 2.2 | 5.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0037T4MD | 3.7 | 8.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 | Fig.2 |
| ZVF200-M0055T4MD | 5.5 | 9.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 |

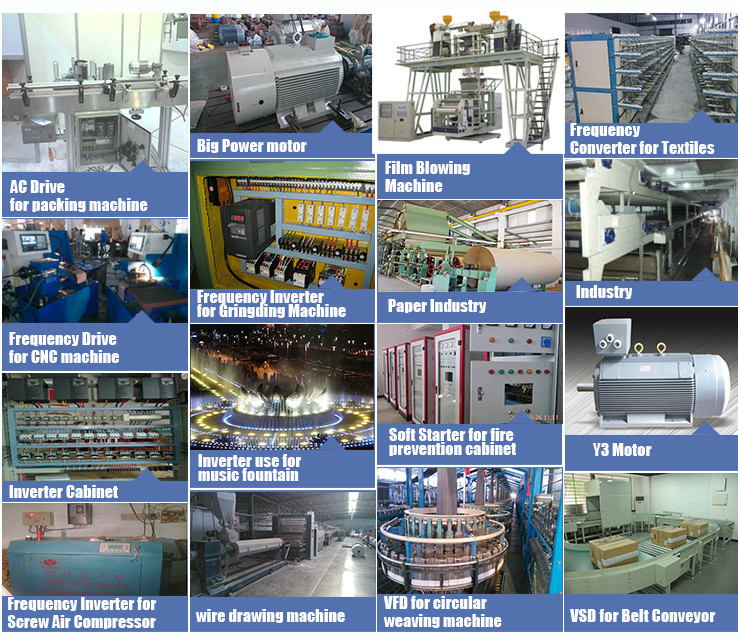

Application Range:
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. Etc.
