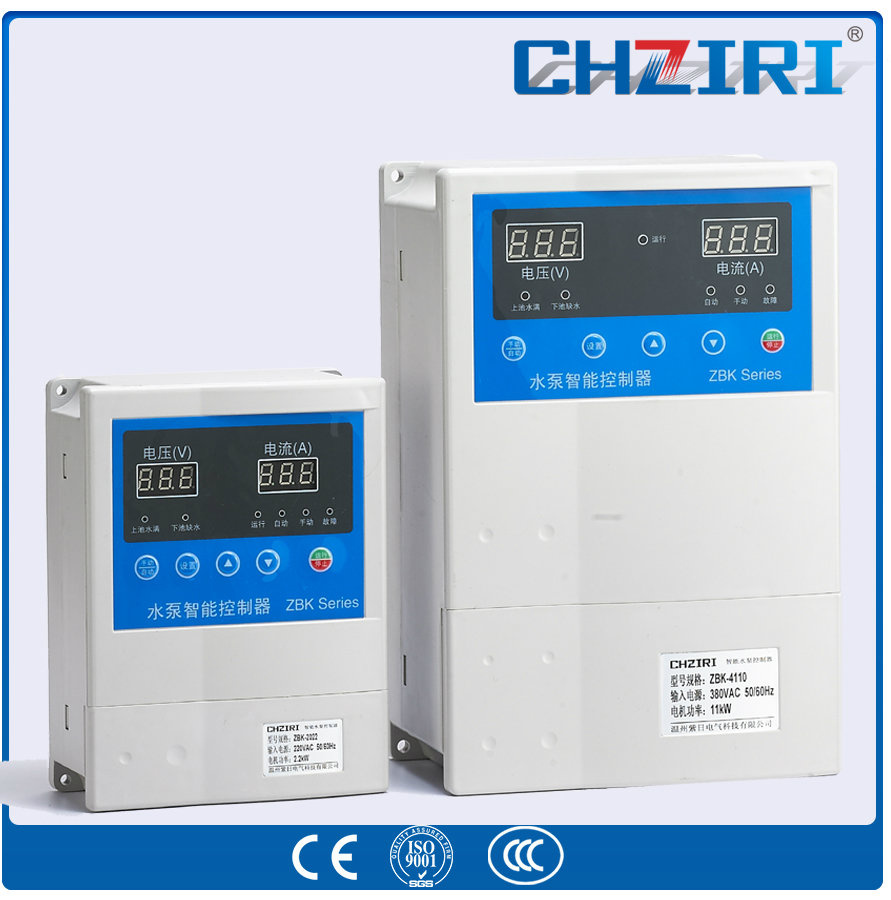

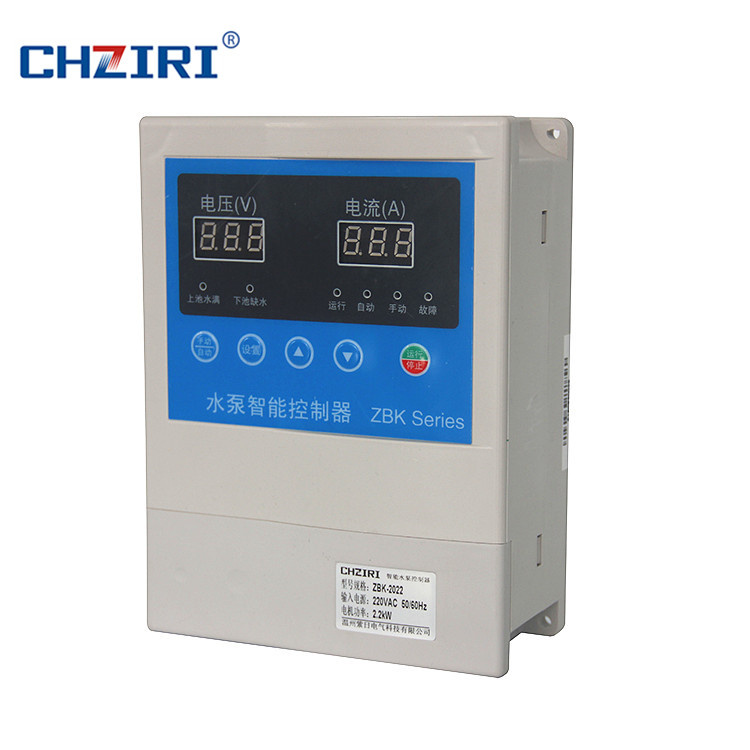

Chziri Water Pump Controller 10HP for Ce Approval
| Price: |
US $ 40-55/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
ZBK Intelligence Pump Controller
1.ZBK Intelligence Pump Controller Main Feature
ZBK Intelligence Pump Controller adopt the digital control chip, set upper and down liquid level and automatic control in one function. Automatic and manual two working mode can be selected..the controller have loss phase, overload, empty load, over voltage and under voltage function protection. Small size .elegant appearance. Applicable to a variety of water supply control occasions.
2.ZBK Intelligence Pump Controller Product Characteristics
1) Rated working voltage: single-phase AC220V / 50 ~ 60Hz; three-phase AC3800V / 50 ~ 60Hz
2) The matched motor power: 0.37 ~ 15kW
3) Set upper and down liquid level and automatic control in one function
4) Automatic and manual two working mode can be selected .
5) Have loss phase, overload, empty load, over voltage and under voltage function protection
6) The restart time 1-999 minutes can be adjusted while without load.
7) Fault memory function
8) Rust protection, can effectively prevent the motor rust
9) AC digital signal detection, The probe is durable.
10)Easy installation, simple debug.
3.ZBK Intelligence Pump Controller Model Selection| Model | Applicable power | Voltage | Figure |
| ZBK-2022 | 0.37-2.2 | 220 | Fig1 |
| ZBK-4055 | 0.75-5.5 | 380 | Fig 2 |
| ZBK-4075 | 7.5 | 380 | Fig 2 |
| ZBK-4110 | 11 | 380 | Fig 2 |
| ZBK-4150 | 15 | 380 | Fig 2 |

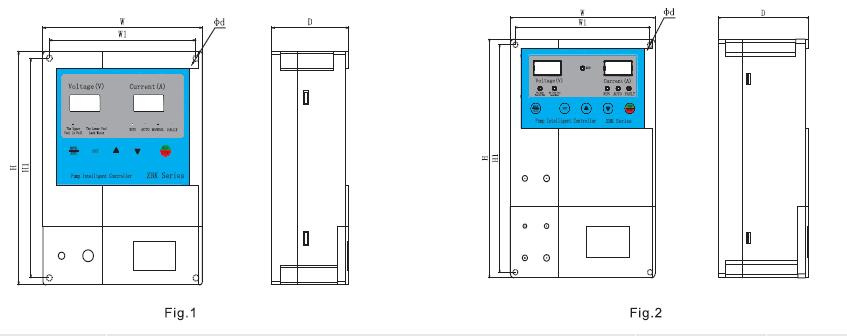

4.ZBK Intelligence Pump Controller Outline& Mounting Dimension
| Model | Dimension(mm) | Picture | Gross Weight
(kg) |
| H | H1 | W | W1 | D | d |
| ZBK-2022 | 200 | 188 | 150 | 138 | 73 | Ф5 | Fig.1 | |
| ZBK-4055 | 300 | 286 | 200 | 186 | 125 | Ф6.5 | Fig.2 | |
| ZBK-4075 |
| ZBK-4110 |
| ZBK-4150 |

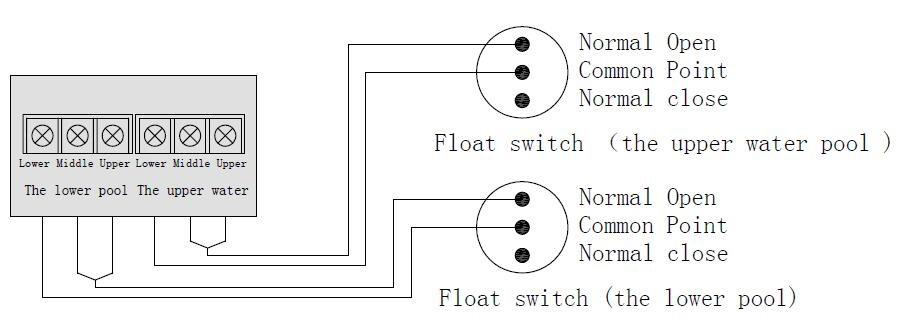

ZBK Intelligence Pump Controller Wiring Diagram
FAQ
1. Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2. What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What's your warranty terms?
We offer 12 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8. Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
| Prod Model: |
ZBK-4075 |
| Rated Working Voltage: |
AC380V/50~60Hz |
| The Matched Motor Power: |
7.5kw |
| Rust Protection: |
Can Effectively Prevent The Motor Rust |
| Fault Memory Function: |
Yes |
| Installation: |
Easy, Simple Debug |
| Working Mode: |
Automatic, Manual |
| OEM: |
Yes |
| Warranty Period: |
18 Months |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Shell Material: |
Plastic |
| Brand: |
Chziri |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
