SpecificationStandard Conformity: IEC: 60947-4-1
Insulation Voltage Ui: 750V
Operation Voltage Ue: 690V
Ambient Temperature Range: -5º C + 55º C
Altitude: not over 3000m
Pollution degree: 3class
Mounting category: III
Mounting Position: ± 5° (Vertical Plane)
Action Particularity
Coil voltage: 50Hz, 110V, 127V, 220V, 380V, 440V.
Pull-in voltage: 85%~110% Us
Release voltage: 20%~75% Us
| Type | CJX2-09 | CJX2-12 | CJX2-25 | CJX2-32 | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 |
Rated working
current (A) | AC3
AC4 |
9
3.5
|
12
5
|
25
8.5
|
32
12
|
40
18.5
|
50
24
|
65
25
| 80
32 | 95
45 |
| Standard Power rating of 3-phase motors 50/60Hz in Category AC-3 | 380V
440V
660/690V | 4
4
5.5 | 5.5
5.5
7.5 | 11
11
15 | 15
15
18.5 | 18.5
22
30 | 22
30
33 | 30
37
37 | 37
41
45 | 45
45
45 |
| Rated heat current (A) | 20 | 20 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
| Electrical life(X 104) | AC3
AC4 | 200
20 | 200
20-15 | 200
20-7 | 200
15-7 | 200
10-7 | 200
7 | 160
7-6 | 160
7-5 | 160
7-5 |
| Mechanical life (X 104) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1000 | 1000 |
| Number of contacts | 3P+NO | 3P+NC+NO |
| Frame Size | AC-3 Duty Rating at 415V 50Hz | AC-1 Duty Rating at 415V 50HZ | Poles | Type |
| Amp | KW | HP | Amp |
| 1 | 115 | 59 | 75 | 200 | 3 | CJX2-115 |
| 150 | 80 | 100 | 250 | 3 | CJX2-150 |
| 2 | 185 | 100 | 125 | 275 | 3 | CJX2-185 |
| 225 | 110 | 150 | 315 | 3 | CJX2-225 |
| 3 | 265 | 132 | 180 | 350 | 3 | CJX2-265 |
| 4 | 330 | 180 | 220 | 400 | 3 | CJX2-330 |
| 5 | 400 | 220 | 270 | 500 | 3 | CJX2-400 |
| 6 | 500 | 280 | 340 | 700 | 3 | CJX2-500 |
| 7 | 630 | 375 | 450 | 1000 | 3 | CJX2-630 |

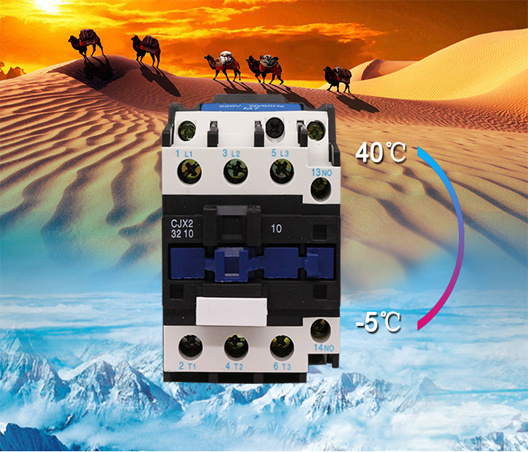

Working ambient temperature

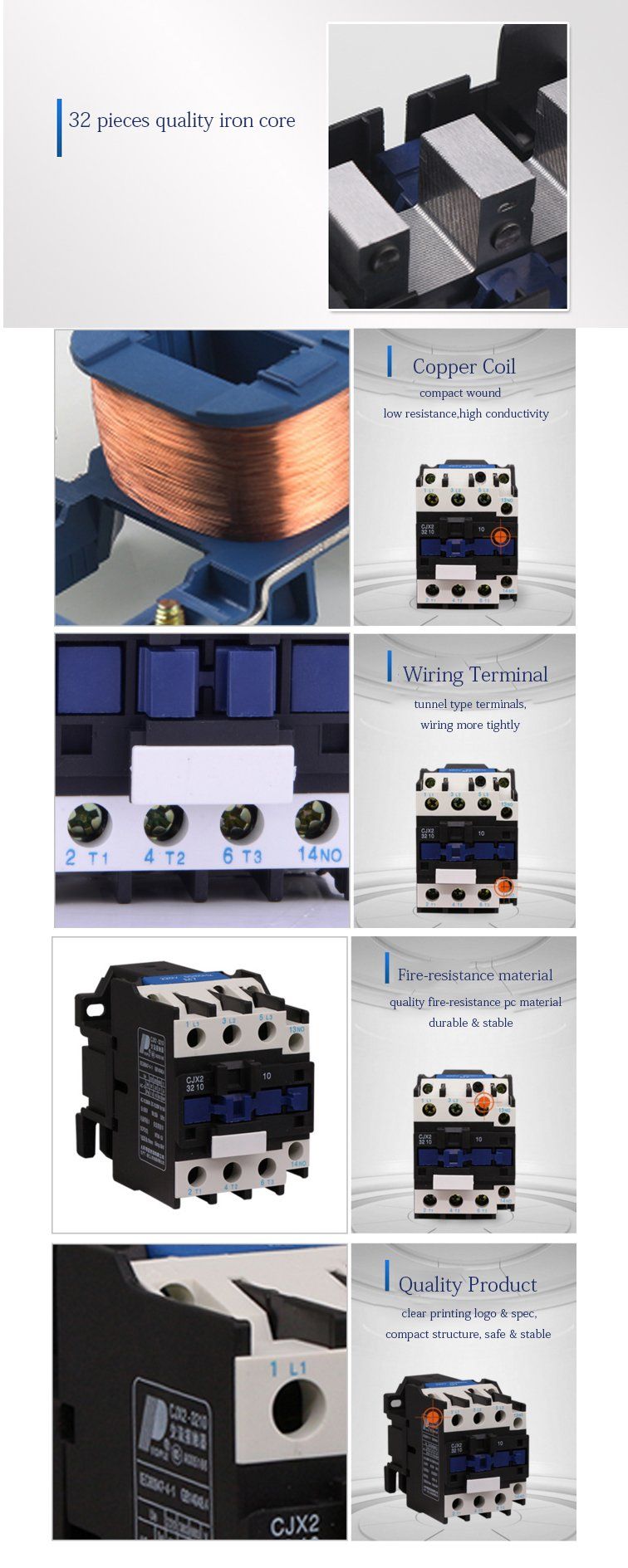

Product details
Packing and shipping-- Originary paper box for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, 21 years professional production experience
-- With strong support of our logistic partners, samples can be sent within 3 days.
-- OEM & ODM services are available .
-- With 150 engineers team, we can answer & slove your questions at first time
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
