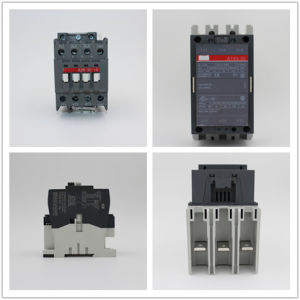

Cjx7 Top Quanlity Power Contactor with Ce Certificate

Name: Cjx7 Top Quanlity Power Contactor with Ce Certificate
Brand: all-electronics-online.com
SKU: 838164195
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 2.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX7
Delivery Time:	2 Weeks
Service:	OEM and ODM
Items:	Motor Protector Contactor

Product Description

AC Contactor General Specifications
1. The installation altitude less than 2000m.
2. The surrounding temperature range: From -5° C ~ +40° C.
3 In the non-explosive condition. Or without adequate erosion and destruction of gas and dust conductive area.
4. Without rain and snow invade.
5. Pollution level 2.

Type	Insulation Voltage Ui V	Conversional free air heat current lth	AC-3 rated operating current le A			AC-3 control the max. power KW of generator
Type	Insulation Voltage Ui V	Conversional free air heat current lth	220V	380V	660V	220V	380V	660V
CJX7-9	1000	26	9	9	7	2.2	4	5.5
CJX7-12		28	12	12	9	3	5.5	6.5
CJX7-16		30	17	17	10	4	7.5	9
CJX7-26		45	26	26	17	6.5	11	15
CJX7-30		65	32	32	21	9	15	18.5
CJX7-40		65	37	37	25	11	8.5	22
CJX7-50		100	50	50	35	15	22	30
CJX7-63		125	65	65	43	18.5	30	37
CJX7-75		125	75	75	46	22	37	40
CJX7-95		145	96	96	65	25	45	55
CJX7-110		160	110	110	82	30	55	75
CJX7-145		250	145	145	120	40	75	100
CJX7-185		275	185	185	170	50	90	120
CJX7-210		350	210	210	210	60	110	150
CJX7-260		400	260	260	260	78	140	190
CJX7-300		450	300	300	280	88	160	220

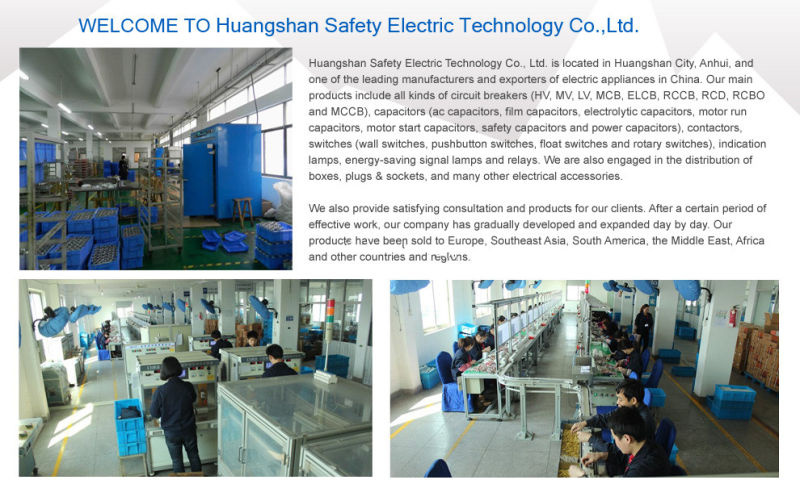

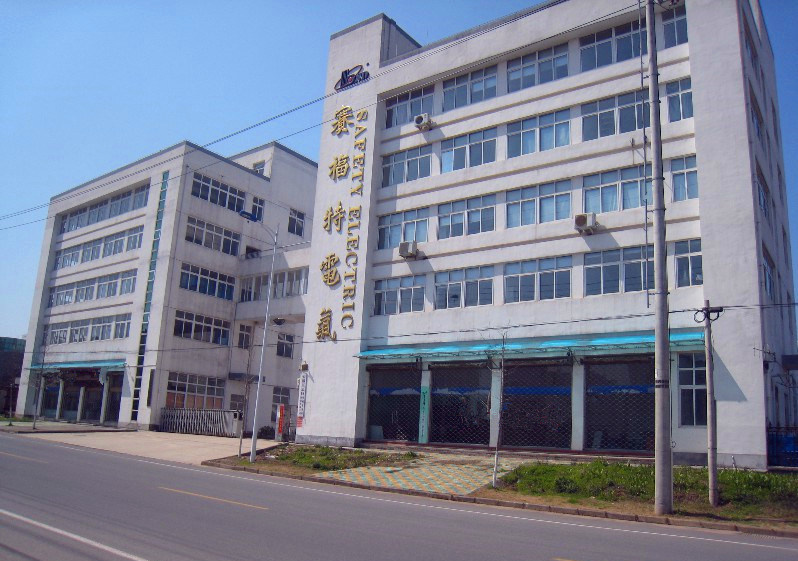

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
