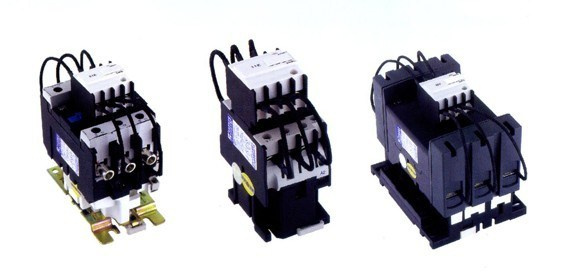

CJ19/16 Switch-over capacitor contactor:

Application of AC contactor

CJ16/19 is developed by our company on the base of 3TK44 capacitor contactor of Siemens company Germany.

It's structure is compact, main circuit composed with resistance on -off switch joint the main circuit is convenience,

is nidely used as a contactor in controlling small electric capacitor, the model meaning as right .

The contact system of contactor is three-phase main circuit, composed by eight pieces contact block from upside and daminside. There is one contact block was switch on in advance in each main circuit, switch-overressistor only two,

the cpacitor group is jointed as triangle, so when resistor switch over circuit was sitchon, every capacitor circuit will connected with resistor.

The contacor have two pieces of auxilliary contact block, the function is 2NO, 2NC or 1NO+1NC, this is chosed by user.

The mounting of this contactor is very convenience, you can use two pieces of M4 screw make it stable, or can use 35mm Din real mou

Model							CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-95	CJ19-115	CJ19-150	CJ19-170
Conventional thermal current (A)							25	32	43	63	108	250	250	250
Rated current(A) AC-6b A							17	25	29	43	74	87	115	130
Controlled capacitor kvar				230V-250V			6	9	10	15	29	35	45	52
				400V-450V			12	15	20	30	50	60	80	90
				690V			10	15	20	30	45	55	65	75
Capability to restrain surge							20In
Coil		Working voltage Us 50Hz V					220,380 according to the customer's requirement
		Operating range					0.85-1.1 Us
		Consumed power VA			Start		115			200		300
					holding		11			20		22
Electrical endurance 104 times							10			8	6	2
Mechanical life 104 times							100			80	60	20
The max operation frequency times/h							300				120
Insulation voltage (V)							500V				660V	1000V
Auxiliary contact	Convention thermal current (A)						10
	Electrical endurance 104 times		AC-15			360VA	12
			DC-13			33W	12
	The smallest load to connect						6V x 10 mA
Current-limited resistor input time (ms)							7-9

Prod Model:	CJ19/16
Warranty Time:	3 Years
Delivery Time:	2 Weeks
