Lnc1 Home Contactor with 4p (3NO+1NC) 230VAC

Name: Lnc1 Home Contactor with 4p (3NO+1NC) 230VAC
Brand: all-electronics-online.com
SKU: 838162585
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 3.1-6.4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Modular contactors:

LNC1 series are used for commutation of mono-phase and three-phase low power electrical consumers. They provide connection between the consumers in small overall dimensions silent work, mounting only at Din-rails

Functions:

Switching on of consumers
making of control systems
remarkable with high reliability of current characteristics
reliable switching on or separation of power contacts

Technicaol Data:

*Operation class: AC -3
* Rared operating voltage of the controlling coil:230V AC; 50/60Hz
* Rated operating voltage of the power circuit:up to 690V AC
* Insulation voltage: 690V
* Surge voltage wear resistance: > 8000V
* Joining terminal:screw terminal
* Connecting:
- flexible conductors with or without cable termial
-rigid conductors
- Mounting: on DIN-rail or mounting position: vertical gradient maximum ±5°
* Plastic: wear resistance of UV rays and non-flammable(self-extinguishing material)
* Ambient temperature: -10oC~60 oC
* Altitude: up to 2000m

Type	In	Coil voltage(V)	Contacts
LNC1-20	20A	230	2NO
LNC1-20	20A	230	NO+NC
LNC1-20	20A	230	2NC
LNC1-63	40A/63A	230	2NO+2NC
LNC1-63	40A/60A	230	4NO

Prod Model:	LNC1
Warranty Time:	3 Years
Service:	OEM & ODM
Rated Current:	25A,40A,63A,80A,100A

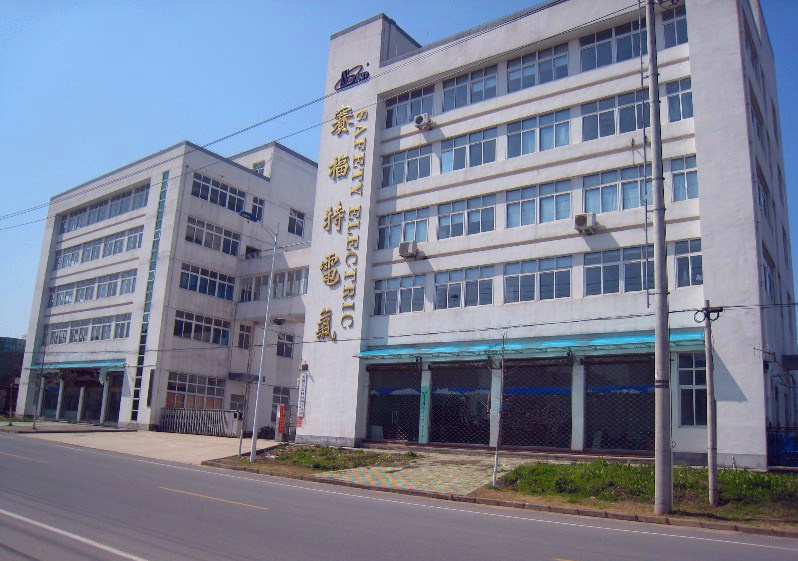

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
