Clamp High Precision Current Sensor

Name: Clamp High Precision Current Sensor
Brand: all-electronics-online.com
SKU: 688572832
Availability: InStock
Rating: 5 (21 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q125B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hot Searching:	High Precision Current Sensor
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 3000A AC
Nominal Input Current:	3000 a
Output Signal:	500mA, 1A, 5A AC at Nominal Input Current
Accuracy:	0.2%, 0.5 %
Max. Jaw Opening:	125mm
Temperature Range:	-20 °c...+55 °c
Output Model:	Lead Output
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Type:	Current Transformer
Application:	Electronic, Position Sensor, Instrument

Product Description

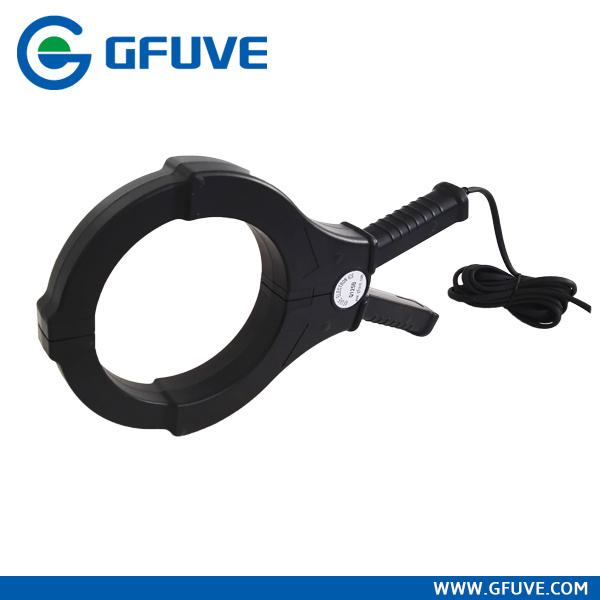

Q125B Precision Current Clamps

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to3000A AC
· Small, compact size; Holding wire diameter 125mm
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

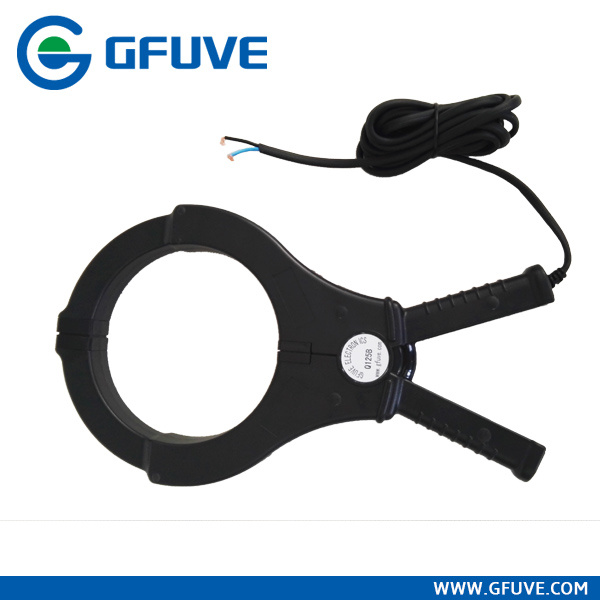

· Output model: Lead output(2.5m)

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	3000 A
Max. Cont. Input current	3600A
Accuracy	0.2%,0.5%
Over voltage category	CAT III 600 V
Output signal	500mA,1A,5A AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	125 mm
Standard	EN 61010-1
Dimensions	116mm x 327mm x 35mm
Weight	1300 g
