Prod Model: |
GWDLS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mini Current Transformerretardant Rating: |
94-V0 |
Mini CT Exterior Material: |
PBT Resin UL Flame |
Interior Insulation: |
Epoxy Encapsulated |
Isolation Current: |
2500 Vrms for 1 Minute |
Dielectric Resistance: |
1000 M Ohms 500 VDC |
Surge Withstand: |
5000V |
Operating Temperature: |
25 to 55c, -40 to +85c Optional |
Mini Current Transformer Frequency: |
50 to 400 Hz |
Accuracy Class: |
0.2 0.1 |
Application: |
PBT Resin UL Flame |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Two-winding Transformer |
Phase: |
Current, Power and Energy Monitoring D |
Coil: |
PBT Resin UL Flame |
Certification: |
CE RoHS |
Usage: |
Voltage, Power and Energy Monitoring D |
Frequency Characteristics: |
50-400Hz |
Shape Of Coil: |
Laminated |
Brand: |
Grewin |
Product Description

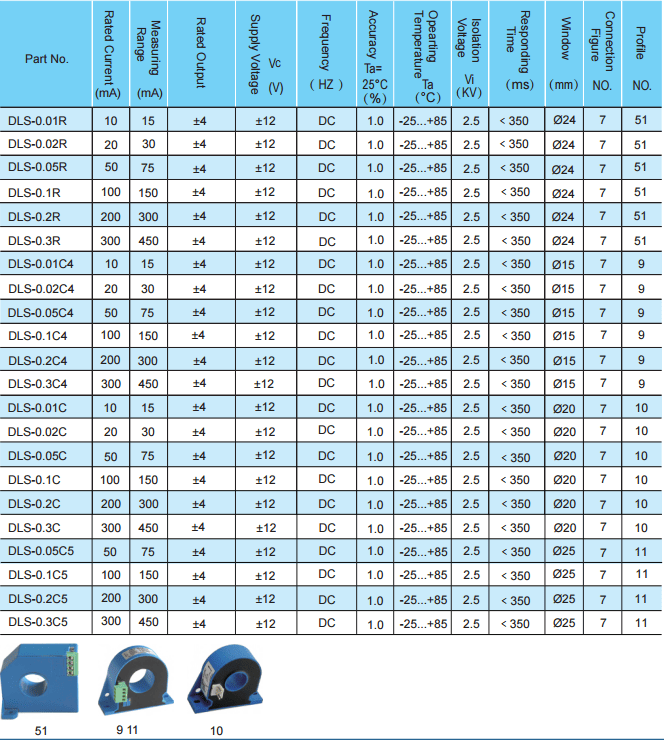

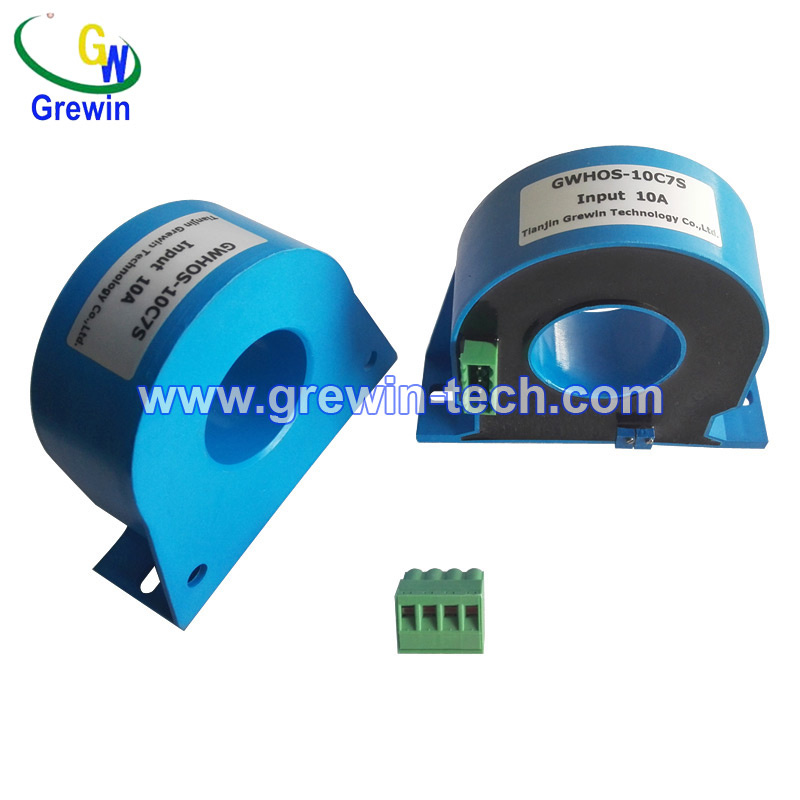

DC leakage current sensor uses magnetic modulation principle, applied to DC panel and other devices. Accurately measure the mA grade DC leakage current signal. Use core through input pattern and have many kinds of outline structures. Can meet various application requirements, and customer can also define primary rated current and secondary output based on their actual demand.
Hall Sensors \DC Leakage Current Sensor.Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer.
FeaturesMeasuring range 120% * IpnAccuracy 1%Overload capacity 20ArmsResponding time ≤300mSOperating temperature -25 - +70 ºC UL 94-V0 complied ApplicationsDC transmission Electric power storage detectionDC screenPower supplyLarge-scale medical equipments Wind power generationCommunication base stationOther typical Products
Single Turn Primary Mini Current Transformer(specifications) |
Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
Interior Insulation | Epoxy Encapsulated |
Isolation Voltage | 2500 Vrms for 1 minute |
Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
Rated Load Resistance | 100K Ohms |
Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
Frequency | 50 to 400 Hz |
Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
Certification | RoHS Compliant CE Approved |
Single Turn Primary Mini Current Transformer(features) |
Low cost |
More than 50 standard sizes |
Non-symmetrical mounting pattern |
Toroidal Silicon steel and Nickel Alloy available |
Single Turn Primary Mini Current Transformer(applications) |
For applications that require exceptional accuracy with minimal phase angle error |
Applications would include Voltage,power and energy monitoring devices |
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
geting full payment.
Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
