Grewin 5A 1A or 0.333V Current Transformer IEC, ETL
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Grewin 5A 1A or 0.333V Current Transformer IEC, ETL
output 5A or 1A split transformer * current sensor transformer for power monitoring

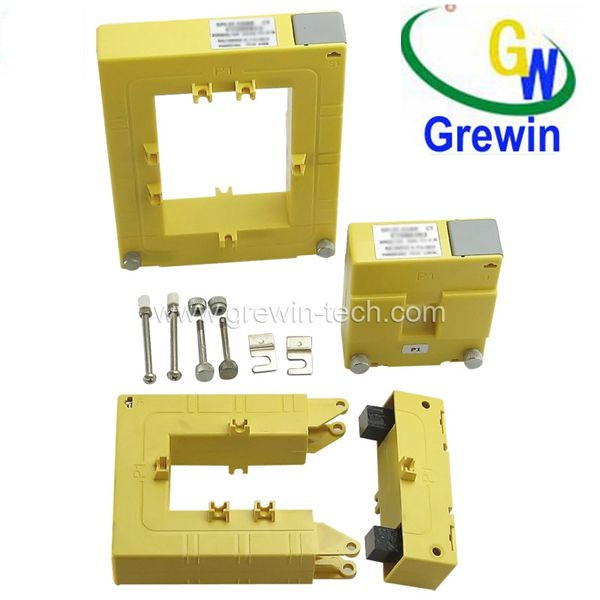

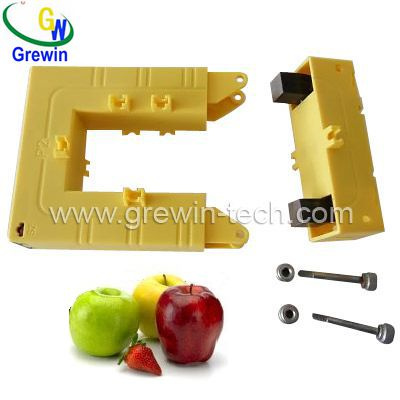

| GWCTSB Series Split Core Current Transformer (Features) |
| Low cost |
| 5 standard sizes |
| Split core design, safer, easier installation, and portable |
| GWCTSB Series Split Core Current Transformer (Applications) |
| Current, power, energy, monitoring devices |
| Relay protection devices |
| Power Factor Correction devices |
Output secondary 5A split core current transformer :Model 1:
GWCTSB0203
Turn ratio: 100:5A 150:5A 200:5A 250:5A 300:5A 400:5A current transformer China
Model 2:
GWCTSB0508
Turn ratio:250:5A 300:5A 400:5A 500:5A 600:5A 750:5A 1000:5A split core transformer
Model 3:
GWCTSB0512
Turn Ratio:600:5A 750:5A 1000:5A 1250:5A 1500:5A 2000:5A 3000:5A current CT
Model 4:
GWCTSB0812
Turn ratio: 500:5A600:5A 750:5A 1000:5A 1250:5A 1500:5A split core China
Model 5:
GWCTSB0816
Turn Ratio:500:5A 600:5A 750:5A 1000:5A 1250:5A 1500:5A high quality split core current transformer with ROHS ,ETL approval.
Output secondary rated 1A split transformer :Model 1: GWCTSB0203
Turn ratio :100:1A 150:1A 200:1A 250:1A 300:1A 400:1A split core CT
Model 2: GWCTSB0508
Turn ratio: 200:1A 300:1A 400:1A 500:1A 600:1A 750:1A 1000:1A
Model 3: GWCTSB0512
Turn Ratio:500:1A 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 3000:1A
Model No.: GWCTSB0812
Model No.GWCTSB0816
Turn ratio: 600:1A 750:1A 1000:1A 1250:1A 1500:1A 2000:1A 2500:1A 3000:1A 4000:1A split transformer ETL made in ChinaMA or 0.333-3.53V RATED SECONDART OUTPUT :
1 va 2 va 5v 10 15 30VA 0.333-3.53V Output
split core ct/split current transformer for power factor correction;
0.333-3.53v Output split core current transformer
split current sensor for correction;
0.333-3.53v current transducer/split current sensor for correctionPart
Number | Ratio | Measuring | Protection | Frequency
(Hz) | Outline
Dimensions
ID-L-W-H
(mm) |
| Rated Input | Accuracy
Class | Rated Accuracy
Limit
Primary
Current
(A) | Accuracy
Class |
| GWCTSA010 | 3000:1 | 5,10,20,50,75 | 1.0,3.0 | 120 | 5P,10P | 50~400 | 10
-29.4-26.4-41.7 |
| GWCTSA016 | 75,100,150 | 0.5,1.0 | 300 | 5P,10P | 50~400 | 16
-36.9-39.2-52.9 |
| GWCTSA024 | 100,150,200,250 | 0.5,1.0 | 540 | 5P,10P | 50~400 | 24
-51.2-47-70.2 |
| GWCTSA035 | 200,300,400,600 | 0.5,1.0 | 600 | 5P,10P | 50~400 | 35
-65.8-51.2-83.5
|

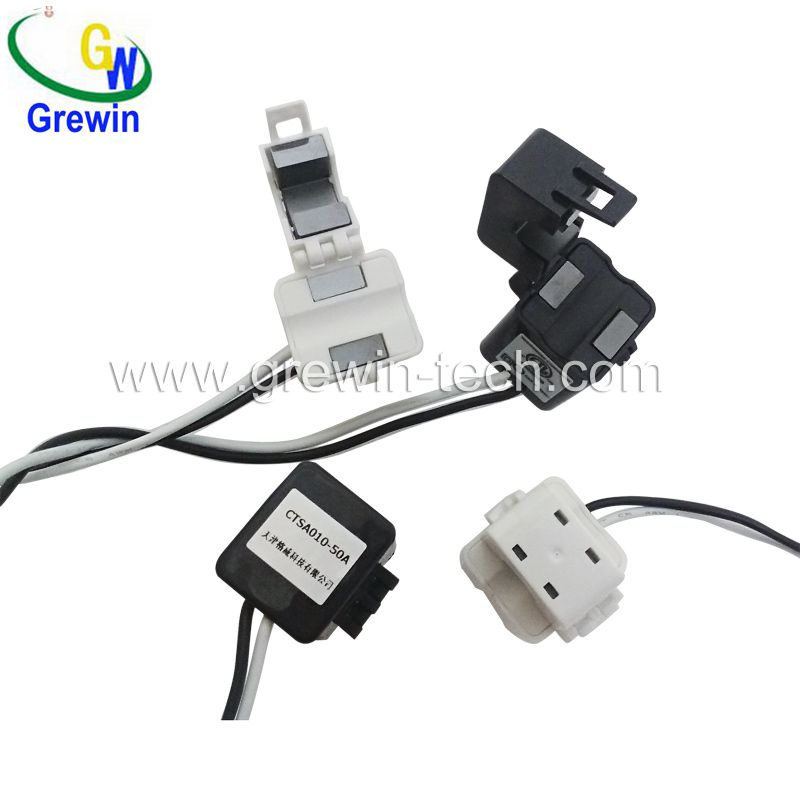

0.333-3.53V rated secondary output split core current transformer :
Model No 1 :GWCTSA010
Ratio : 3000:1
Rated input: 5A 10A 20A 50A 75A
Accuracy class: 1.0s 3.0s
Rated primary current :120A
Protection: 5 times protection ,10 times protection like 25A 50A 100A 200A 250A 385A 500A 750A
Model No.2 :GWCTSA016
Ratio :3000:1
Rated input: 75A 100A 150A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 300A
Protection : 5 times Protection, 10 times protection
Model No. 3:GWCTSA024
Ratio : 3000:1
Rated input: 100A 150A 200A 250A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 540A
Protection : 5 times Protection, 10 times protection
Model No.4:GWCTSA035
Rated input: 200A 300A 400A 600A
Accuracy class: 0.5 1.0S
Rated accuracy limit primary current: 600A
Protection : 5 times Protection, 10 times protection
Frequency: 50--400Hz
A2. Split Core Current Transformers \mA or 0.333-3.53V Rated Secondary Output
1.Applications:
Current, power, energy, monitoring devices;Relay protection devices;Power Factor Correction devices.
2. Specifications:Rated Primary current: 100-5000Aac;Rated Secondary current:5 or 1Aac;Rated load: 1, 2.5, 5.0, 10, 30VA;Accuracy: 0.5, 1.0, 3.0 Class;
3.Rated Short-time thermal current (Ith):20In
Rated Dynamic current (Idyn):2.5Ith;
Case Material: UL flame retardant rating 94-V0;
Highest Voltage for Equipment Um (rms):720 Vac;
Rated Power-Frequency Withstand Voltage;(rms):3,000 Vac
Frequency Range:50/60Hz;Operating Temperature: -15 to degree;
Standard:IEC 60044-1 .
Other current transformer :

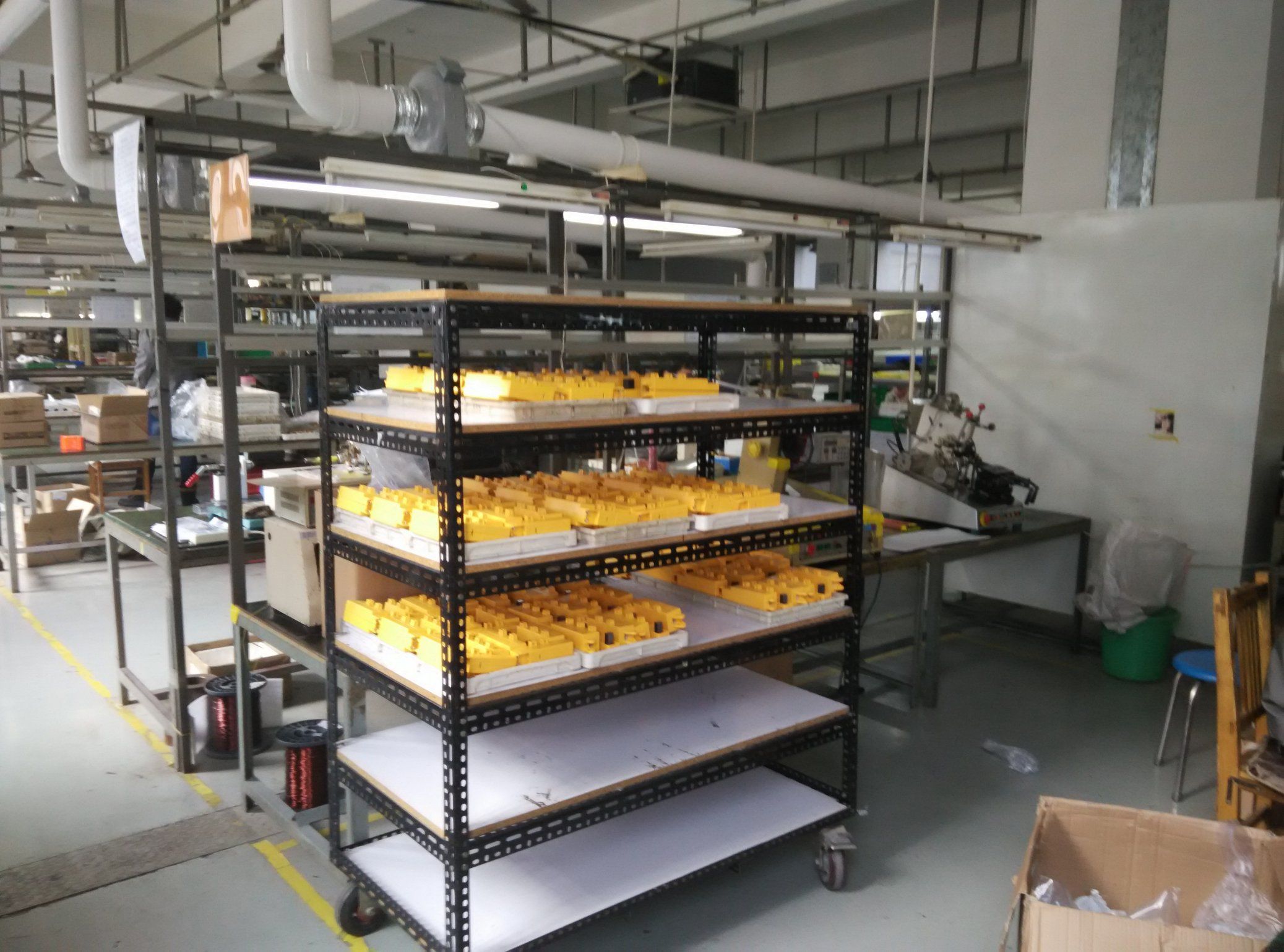

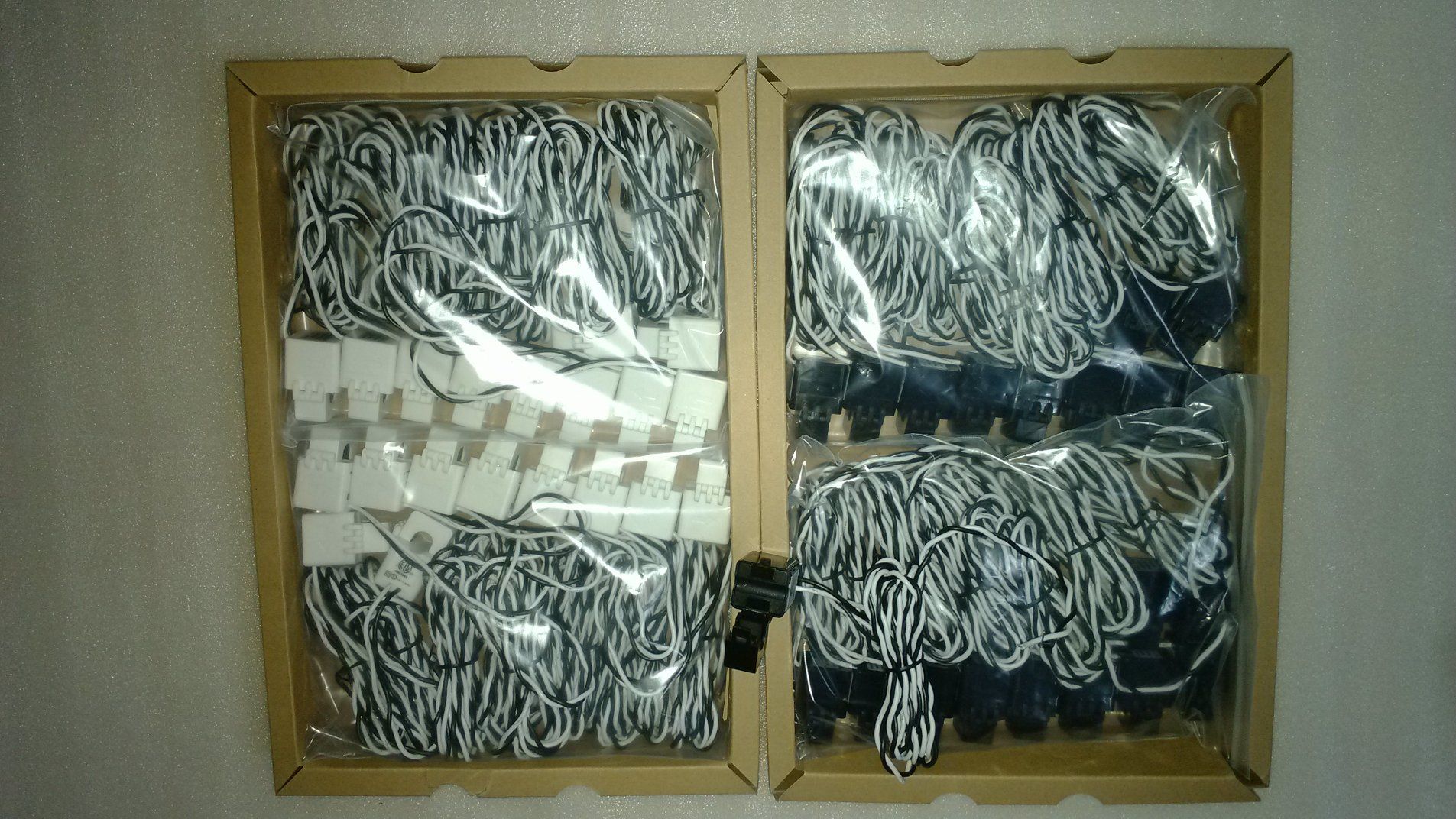

The following pictures show you about all finished current transformers in the warehouse which are waiting for packing into boxes. And then they will be packed into export standard cartons with strong pallets so that can make sure the goods safe arrival at your destination place.
About us:
Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core
business philosophy "Quality and Honesty First ".
Our strongly advantages as below:
1. Our transformer quality lifetime: 10 Years.
2. Specialty Sales service: 5 -10 Years
3. Proficient experience workers on average:Around 5 Years.
4. Equipments:Advanced winding machines imported from Italy.
5. Test: 100% test before the shipment
As a professional leading and a main exporter of a wide variety of electronic components in China for many years, we adhere to new products, quality to meet the needs of you and welcome all of you to negotiate!
We have abtained SGS Audit Supplier in China and VDE,ETL,CE,ROHS,ISO9000 Approal. Guarantee quality is the first:
Parameters :
1.Models No.
2.Or accuracy ,rated output voltage andcurrent;
3.frequency and dimension.
4.Order qty/batch
5.Samples qty
Thank you for your understand and support
Contact Information:TIANJIN GREWIN TECHNOLOGY CO.,LTD
Add:Meinian Plaza.No.16 Dongting Road,Hexi Distr,Tianjin,China .
Tel: +86-22-84943756
Web: www.grewin-tech.com
Mobile:+86-13072088960
| Prod Model: |
GWCTSB0508, GWSB0203, 0512, 0816 GWSA010, 024, 016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Low Cost Split Core Design: |
Safer Easier to Installation |
| Test Standard: |
IEC 60044-1 |
| Operating Temperature: |
-15 to 60 Degree |
| Withstand Voltage: |
3000V AC |
| Output 1A Or 5A Split Application 1: |
Energy, Relay Protection, Power Factor Correction |
| Application: |
Lighting |
| Phase: |
Single |
| Type: |
Transformer |
| Usage: |
Instrument |
| Winding Form: |
Autotransformer |
GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
Our company have many advantages which can be your honesty and reliable supplier:
WHY CHOOSE US?
A. Business philosophy "Quality and Honesty First“
B. Over 40 years experience of transformer designing and producing.
C. Transformer 100% test before the shipment;
D. UL, CE, ISO9001: 2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We expect at consistently competitive prices
G. Transformer quality lifetime: 10 Years.
H. Professional experiences of the sales and engineers: 5 -10 Years
Grewin Mission: Growing together side by side, Mutual success hand in hand.
We sincerely invite you to join us to create a bright future.
