| Prod Model: |
MP10S/HJ-E |
| Installing Size: |
10mm (Other Size Is Available) |
| The Body Material: |
Stainless Steel |
| Contact Material: |
Silver Plated Gold |
| Operation Type: |
Momentary (or Latching) |
| Electrical Life: |
More Than 200,000 Cycles |
| Mechanical Life: |
More Than 100,0000cycles |
| The Head Shape: |
High |
| Contact Configuration: |
1no (Normally Open ) |
| Switch Rating: |
2A/36VDC |
| Product Name: |
10mm Illuminated Push Button Switch |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Structure: |
1no |
| Detection Method: |
Press |
| Brand: |
CMP |
| Certification: |
TUV |

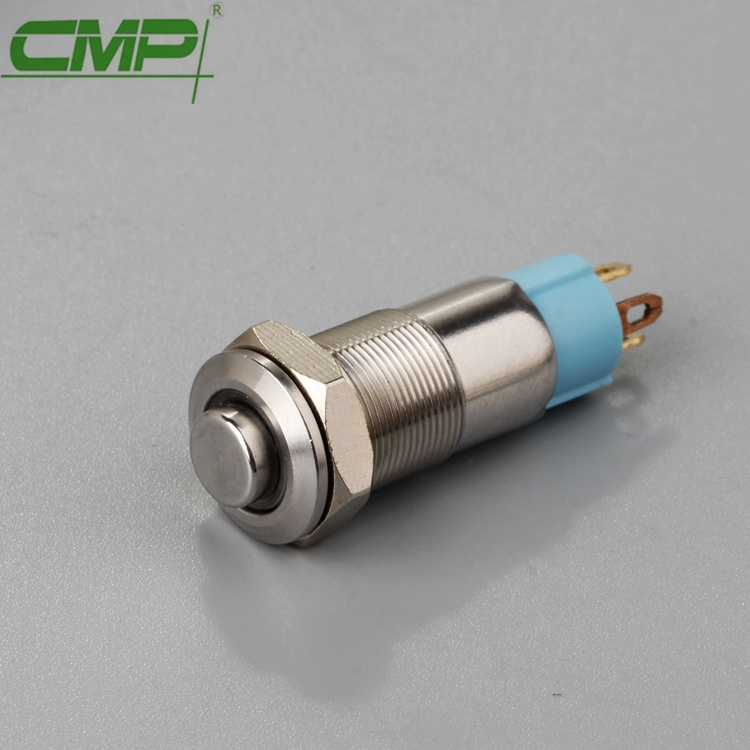

Product Description
CMP metal 10mm momentary small push button switch with ring LEDMP10S/HJ-E: 1NO momentary Push button Switch with 4 soldering pin1.Thread Diameter:10mm2.Operation type:momentary (also have latching type)3.Housing material:Stainless steel4.Terminal type: soldering pin5.Head type:High head with LED or not 6,LED color:red,green,white,blue,yellow,orange (voltage:3V/6V/12V/24V/48V/110V/220V made to order)7.Contact configuration:1NO (spst switch)8,Switch rating: 2A/36V DC9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles10, Operating Temp:-20ºC~+55ºC | Common description for metal push button switch |
| Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
| Latching | When you press the button, it keeps pressed until you press again |
| N.O. | Normally Open |
| N.C. | Normally Closed |
| SPST | Single Pole Single Throw |
| DPDT | Double Pole Double Throw |
| Silver plated gold | Wonderful material with silver plated gold |
Please feel free to contact me for more detail about the 10mm illuminated push button.Introduce: Companies always adhere to the "user first, quality first, reputation first" purpose, adhere to the "people-oriented strict management, meticulous, for the customer scale continuous improvement" quality policy.
Certification:

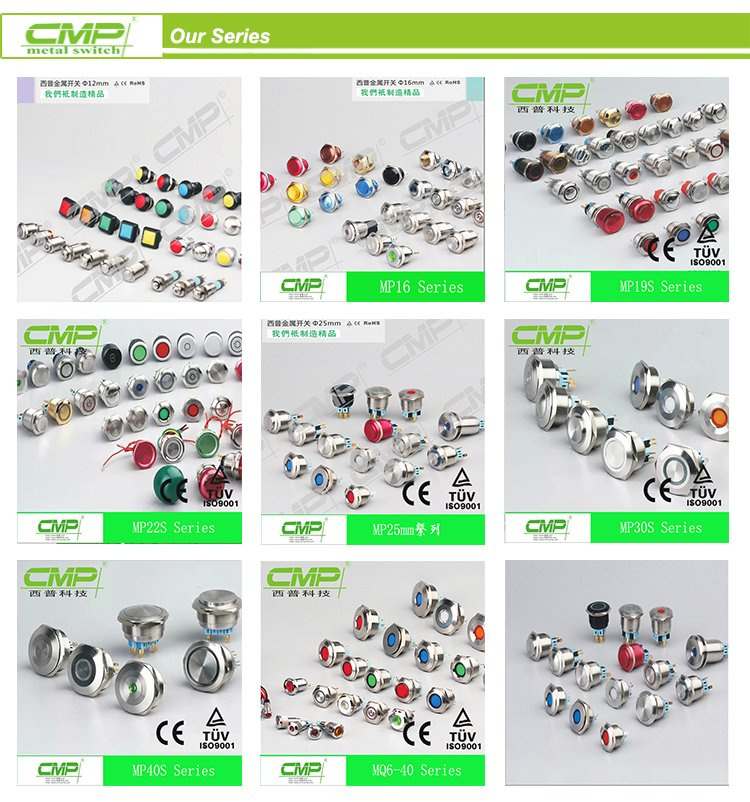

Categories: We have all kinds of push button switch. If you want it, Please contact me. We will give you the satisfactory reply.
Packaging: packaging:
inner bubble box--- inner box---carton (or by your request.)
Shipping :
DHL, EMS, TNT, Fedex, UPS and others international express
FAQ:
1. What time you can delivery?
Small Order (1-3 Days)
2. What transportation you can usually choose ? EMS UPS DHL TNT FEDEX or by your request.
3. What is the packaging specification?
400pcs/CTN 31cm*29cm*24cm10mm switch,mini Push Button Switch,10mm push button switch,mini push button,Metal small Switch,SPST 10mm small push button,mini 1NO 10mm switch,10mm pushbutton switch,micro push button,micro push button switch,10mm anti-vandal push button switch,miniature push button switch,miniature switch,small push button switch,small pushbutton switch,mini electric switch,mini metal push button switch 10mm illuminated latching push button 10mm illuminated Switch small LED Push Button 10mm Switch with ring LEDContact us:
