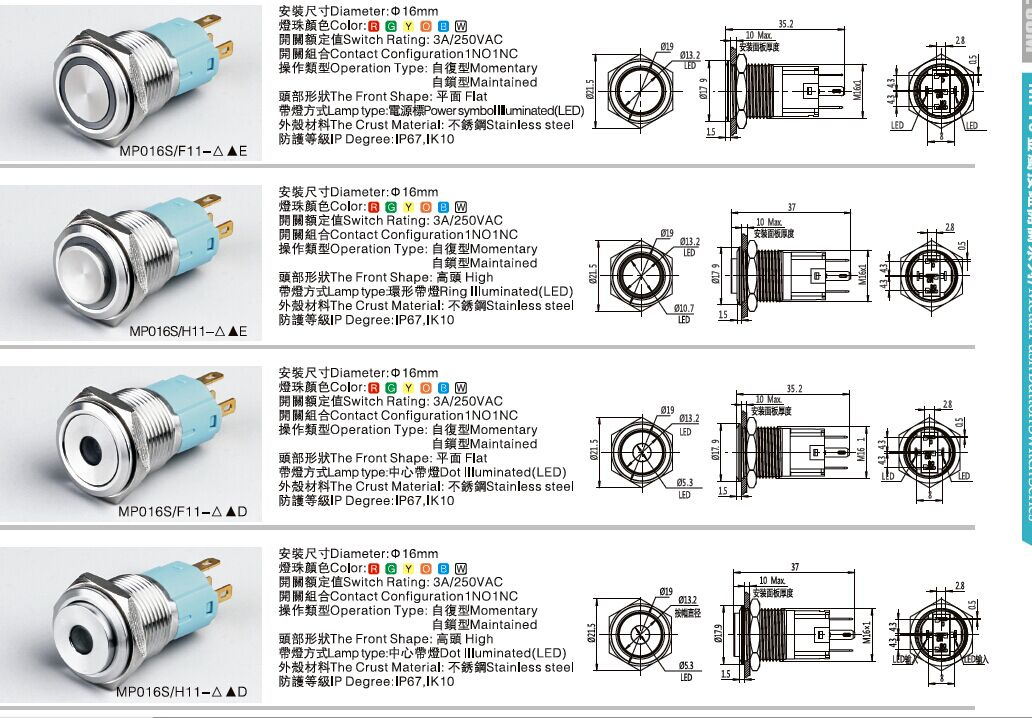

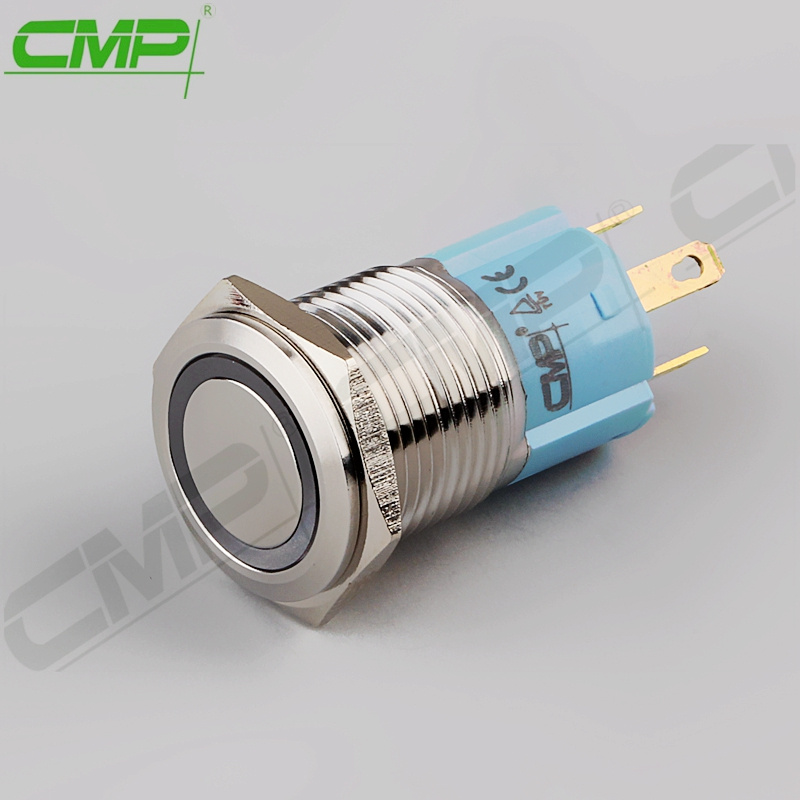

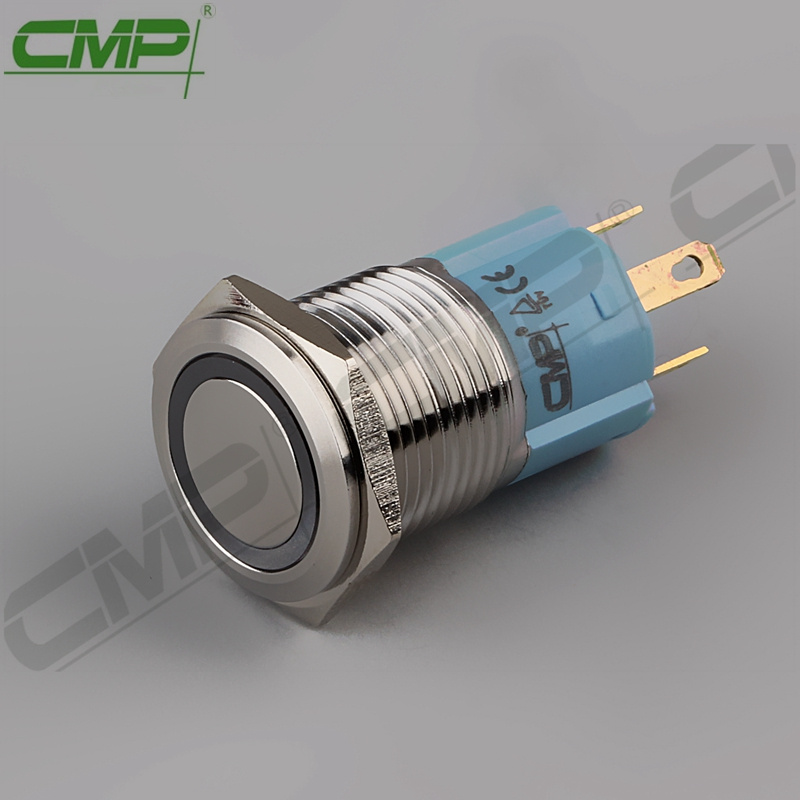

CMP waterproof stainless steel NO NC 16mm push button switch with LEDMP016S/F11-E: 1NO1NC Momentary Push button Switch with 5 soldering pins terminal1.Thread Diameter:16mm2.Operation type:Momentary (also have latching type)3.Housing material:Stainless steel (or other, contact me)4.Terminal type:soldering pin,(or solder with wires,socket)5.Head type:High head,Flat head, Domed head with LED or not 6,LED color:red,green,white,blue,yellow,orange
Voltage: 3V/6V/12V/24V/36V/48V/110V/220V (made to order) 7.Contact configuration:1NO1NC (SPDT switch)8,Switch rating: 3A/220V AC/DC9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles10, Operating Temp:-20ºC~+55ºC11,IP67IK10, high quality12,have TUV,CE,ROSH, SGS Common description for metal push button switch |
Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
Latching | When you press the button, it keeps pressed until you press again |
N.O. | Normally Open |
N.C. | Normally Closed |
SPST | Single Pole Single Throw |
DPDT | Double Pole Double Throw |
Silver plated gold | Wonderful material with silver plated gold |
Introduce: Companies always adhere to the "user first, quality first, reputation first" purpose, adhere to the "people-oriented strict management, meticulous, for the customer scale continuous improvement" quality policy.Certification: Categories: We have all kinds of push button switch. If you want it, Please contact me. We will give you the satisfactory reply.Packaging: packaging:
inner bubble box--- inner box---carton (or by your request.)
Shipping :
DHL, EMS, TNT, Fedex, UPS and others international express
FAQ:
1. What time you can delivery?
Small Order (1-3 Days) Big Order (5-7days)
2. What transportation you can usually choose ? EMS UPS DHL or by your request.
3. What is the packaging specification?
400pcs/CTN 31cm*29cm*24cmContact us: momentary push button switch Push Button Switch switch with screw 1NO1NC momentary switch 16mm Wiring Switch 16mm 1NO1NC push button switch Momentary Switch High Quality Switch on off Switch High Head Switch push switch SPDT push button switch metal momentary switch button switch momentary push button pushbutton switch electrical switch push button stainless steel push button metal push button switch high flat push button switch push button control switch metal control switch door control switch reset switch 16MM 1NO1NC switch push button switch with LED 1no1nc illuminated Switch,illuminated push button Switch
We are a company specialized in designing and manufacturing metal buttons. Our company has 110 technical staff members, including one senior engineer, three technical engineers and five college graduates.
Our company is specialized in the production of switch buttons made of stainless waterproof steel and metal waterproof steel. Our products are widely used in varies types of control desks, control boxes (cabinets), power distribution boxes (cabinets), meter boxes (cabinets), household appliances, security systems, etc. Our products have attained TUV and CE certificates and passed SGS test. Our company exports our products to Europe, the USA, the Middle East, Asia, etc. Our products are reliable and meet the standard of RoHS system. We also offer OEM and ODM services.
Our company always bears "Customer First, Quality First and Reputation First" in mind. We firmly believe that we can produce top-class and the newest products by sticking to the concept of "Strict Management, Considerate Customer Service and Scale Economics" as long as we conform to the request of ISO9001 Quality Management Certification and continuously invest in the R&D. We believe that we will become one of the most professional companies with full specifications and the best services. We sincerely look forward to serving our domestic and overseas customers with satisfying services and the best products.
