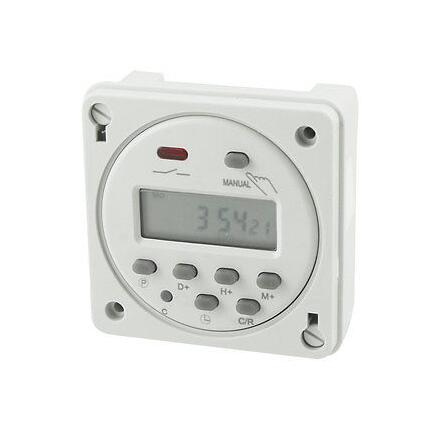

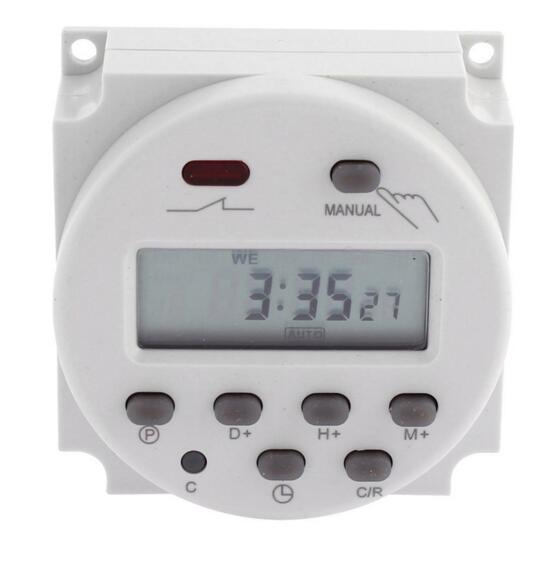

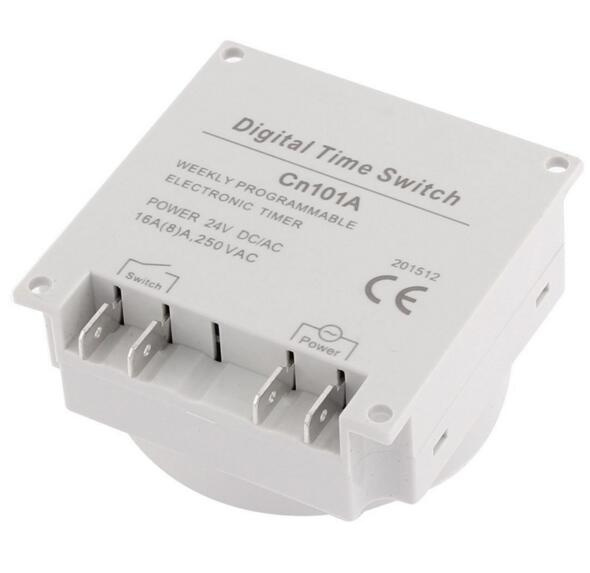

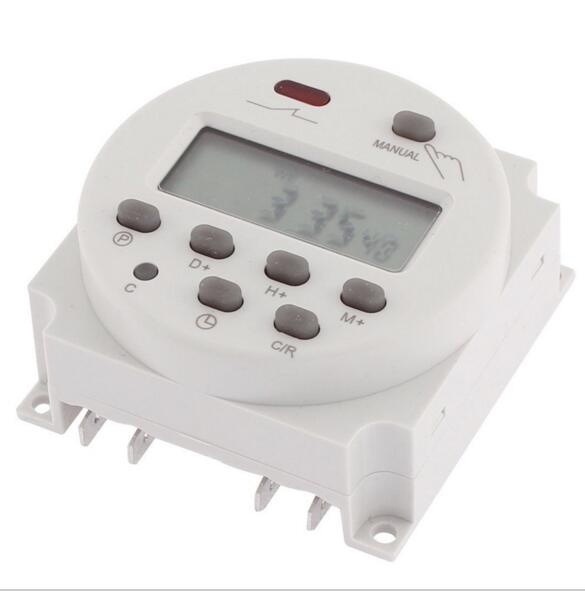

Cn101A LCD Digital Power Programmable Timer DC12V 16A Time Relay Switch Control for Electrical Equipments

CN101 DC 12V Digital LCD Power Programmable Timer Time Relay Switch Support 17-times Daily Weekly Program

Features:

100% Brand New and High Quality

The panel-mount digital timer series can be operated in 4 separate power supplies, ranges from 240V AC to 12V DC,

output format can be produced to be volt-free or voltaic-output

The digital timer is accurate to the minute, hour, days, designed with either 17 ON/OFF (event) per day

Provide 15 combination of daily programs which can lead great convenience

to user upon choosing the required days in a week for operation the time

Advanced pre-setting one week before, digital electronic timer switch with daily and weekly programs

Repeat programs with 17 on/off setting and manual override lithium battery power reserve when electric supply cut off

Specification:

Full Time Range: 1Min-168Hours

Rated Voltage: 12V DC

Contact Capacity: 16A

Power consumption: no more than 2w

Internal battery: 1.2V/40mA (rechargeable batteries)

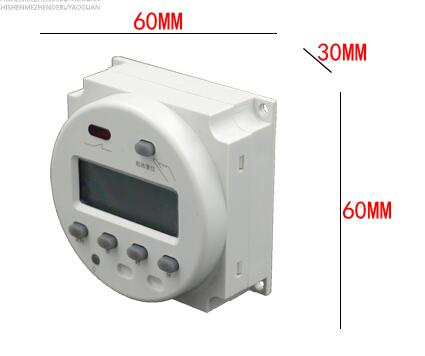

Dimensions: 62x62x32.5mm

Power failure memory: 180days

Operate Temperature: -10 to +40 C

Programmable: 17times/week or day

Minimum interval: 1 minute

Key Button: Clock, timer, day, h+(setting the hours), m+(setting the minutes), manual override, reset

Package Included:

1 x DC 12V Power Programmable Timer

Note: Please allow 1-2cm error due to manual measurement
