| Prod Model: |
CJ19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
380V |
| Rated Current: |
25, 32, 43, 63A |
| Ambient Air Temperature: |
-5'c~+40'c |
| Altitude: |
2000m |
| Pollution Level: |
3 |
| Frencurency: |
50Hz |
| Productivity: |
2, 000PCS/Day |
| Brand: |
CNC |
| Protective Characteristics: |
Sealed relay |
| Load: |
High Power Relay |
| Size: |
Miniature |
| Usage: |
Lathe Relay, AC Contactor |
| Theory: |
AC Contactor |
| Action Principle: |
AC Contactor |
Product Description

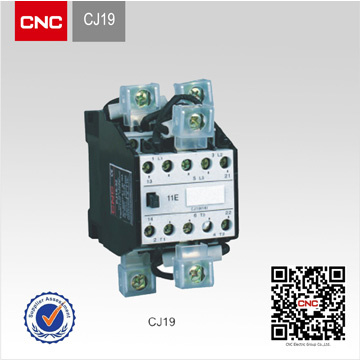

CNC Changeover Capacitor AC Contactor CJ19C High quality 110V 220V 380V electric contactor (CJ19)
About CNC
1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standard.
General
CJ19C series AC Contactor is suitable for using in the circuits the rated voltage up to
3800V AC 50Hz or 60Hz. CJ19C is used to combine with low voltage reactive power
Compensators and or cut off low voltage shunt capacitor. CJ19C series AC Contactor
Has restraining device to effectively decrease impact caused by inrush transient
Current when switch on or over voltage when switch off. Specifications
Specification:
1. Rated voltage: 380V
2. Rated current: 25, 32, 43, 63A
Productivity: 2, 000PCS/DAY
Origin: China
Transportation: By sea or air
Note:
A. Acquiesce in 3 pairs of N/O main auxiliary contacts and 3 pairs of N/O precharge
Auxiliary contacts
B. CJX2 with F4's derivate code;
C. CJX2 with F4 and electromagnet's derivate code
Our Services
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax. But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
Packaging & Shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
We mainly use China post air mail / Hong Kong post air mail / Singapore post air mail/DHL/UPS/FedEx/EMS.
China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual; DHL/UPS/FedEx takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
Company Information
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
|
Item |
Type |
CJ19C-25 |
CJ19C-32 |
CJ19C-43 |
CJ19C-63 |
Controllable capacitor
capacity (kvar) |
230V |
6 |
9 |
10 |
15 |
|
400V |
12 |
18 |
20 |
30 |
|
Rated insulation voltage (V) |
500 |
|
Rated operation voltage (V) |
380 |
Conventional thermal
current (A) |
25 |
32 |
43 |
63 |
AC-6b rated working
current (A) |
17 |
23 |
29 |
43 |
Restrained surge capacity/
Capacitor rated current |
20Ie |
Controlled power
voltage (V) |
48, 110, 127, 220, 380 |
Conventional thermal current
of auxiliary contacts (A) |
6 |
10 |
Operating frequency
(cycles/h) |
120 |
Electrical life(×100000 time) |
1 |
|
Mechanical life(×100000 time) |
10 |
CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.
Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.
We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
