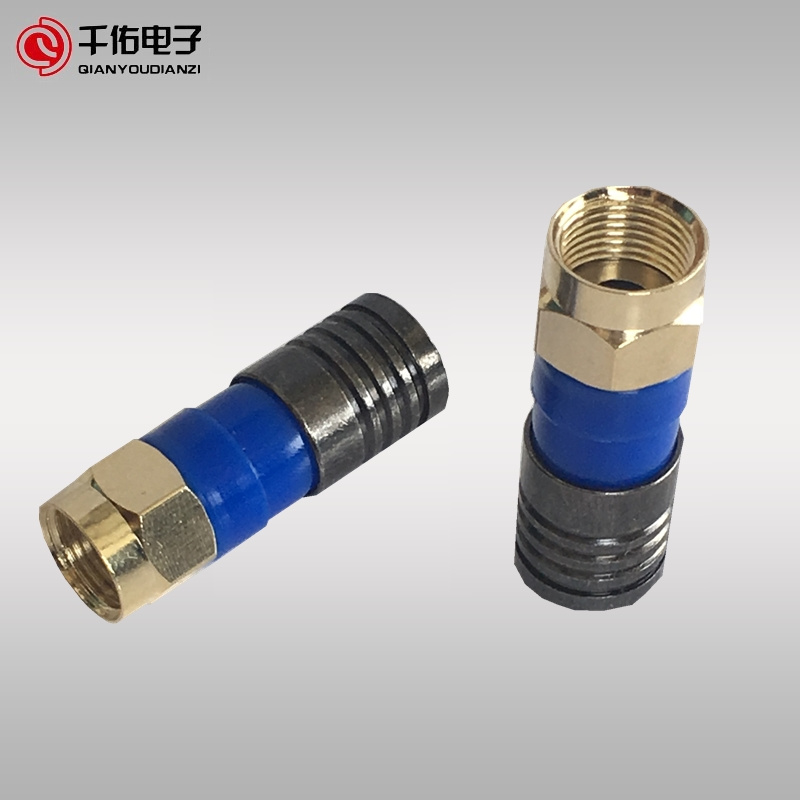

Coaxial Cable Rg59 RG6 RF F Connector

Name: Coaxial Cable Rg59 RG6 RF F Connector
Brand: all-electronics-online.com
SKU: 822786645
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	US $ 0.18-0.19/Piece
Min Order:	5000/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Coaxial Cable Rg59 Rg6 Rf f Connector

Temp.range	-25~+60ºC
Vibration	100m/s2 (10~500Hz)
Impedance	75Ω
Frequency Range	DC~1GHz
Working Voltage	170V max
Center Contact	≤10mΩ
Outer Contact	≤5mΩ
Insulation resistance	≥1000mΩ
Return Loss	≥20dB
Inturn Loss	≤1.0dB
Durability(mating)	≥500times

EQUIPMENT PROCESS

OUR SERVICE
1.Your inquiry will be replied within 12 hours.
2.We are the factory, we have the source
3. We can make the product according to your requirement

FAQ
1.About Price
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2.About Sample
We can give our samples to you if you need, but the air freight is collect or you pay us the cost in advance.
3.About warranty
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition.Any quality issue, we will deal with it immediately.
4.About payment or other question
Please email me or chat with me on Trade Manager directly.

Certificate

Prod Model:	F-002
Materials:	Brass
Durability:	500 Times
Impedance:	75 Ohm
Working Voltage:	170V Max
Vibration:	100m/S2 (10~500Hz)
Plating:	Gold&Nickel
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	RG6/Rg59
Brand:	Qianyou

Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
