LMR400 Rg8 Male N Crimp Plug Connector

Name: LMR400 Rg8 Male N Crimp Plug Connector
Brand: all-electronics-online.com
SKU: 822743085
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 0.25-0.3/Piece
Min Order:	5000/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

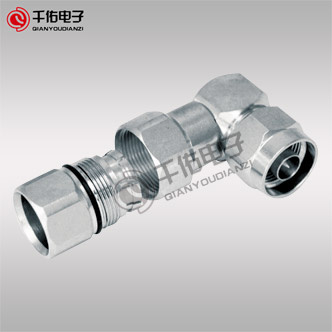

LMR400 Rg8 Male N Crimp Plug Connector

Temp.range	-40~+150°C
Impedance	50Ω
Frequency Range	DC~6GHz
Working Voltage	335V max
Withstand Voltage	1000V rms
Center Contact	≤ 3 mΩ
Outer Contact	≤ 2 mΩ
Insulation resistance	≥ 5000 MΩ
Inturn Loss	≤ 0.3dB
Durability(mating)	≥500times
Material	brass
Plating	gold
Inner conductor	brass
Insulator	PTFE
Applicable Standard	IEC 60169-15
Salty Test	24h

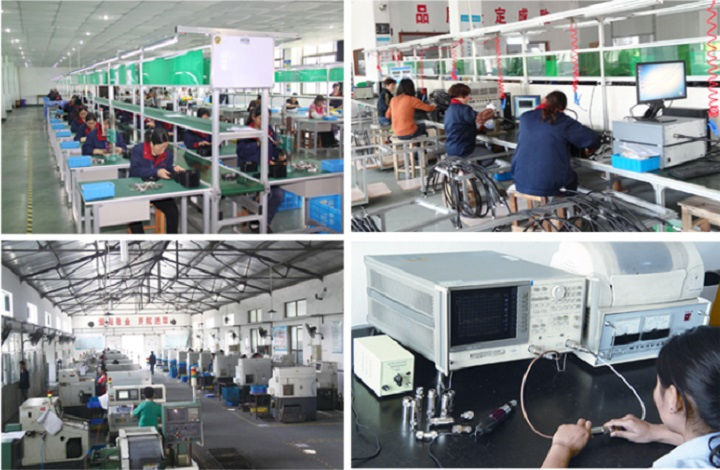

EQUIPMENT PROCESS

OUR SERVICE
1.Your inquiry will be replied within 12 hours.
2.We are the factory, we have the source
3. We can make the product according to your requirement

FAQ
1.About Price
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2.About Sample
We can give our samples to you if you need, but the air freight is collect or you pay us the cost in advance.
3.About warranty
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition.Any quality issue, we will deal with it immediately.
4.About payment or other question
Please email me or chat with me on Trade Manager directly.

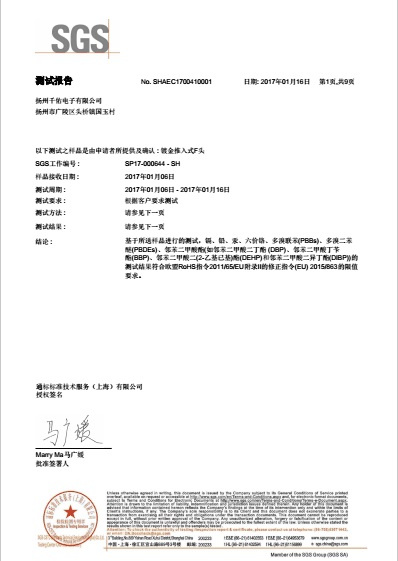

Certificate

Prod Model:	S-003
Salty Test:	24h
Frequency Range:	DC~3GHz
Plating:	Gold
Material:	Brass
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	316, 200, 300, 400 Cable
Medium Pressure:	1000V RMS
Brand:	Qianyou

Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
