| Prod Model: |
Coban GPS tracker TK103B+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC |
| Size: |
87mm*54mm*26mm |
| Weight: |
130g |
| Delivery Time: |
1-3 Working Days |
| New Feature1: |
Dual SIM Card |
| New Feature2: |
Central Looking System |
| New Feature3: |
Support Dual Fuel Sensor Monitor |
| Shipment: |
DHL, UPS, EMS, TNT, FedEx, Hkpost etc |
| GSM Network Frenquecy: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
GPS103A+ |
| Screen Size: |
No Screen |
| Brand: |
Coban Baanool |
| Certification: |
ISO9001 |
Product Description

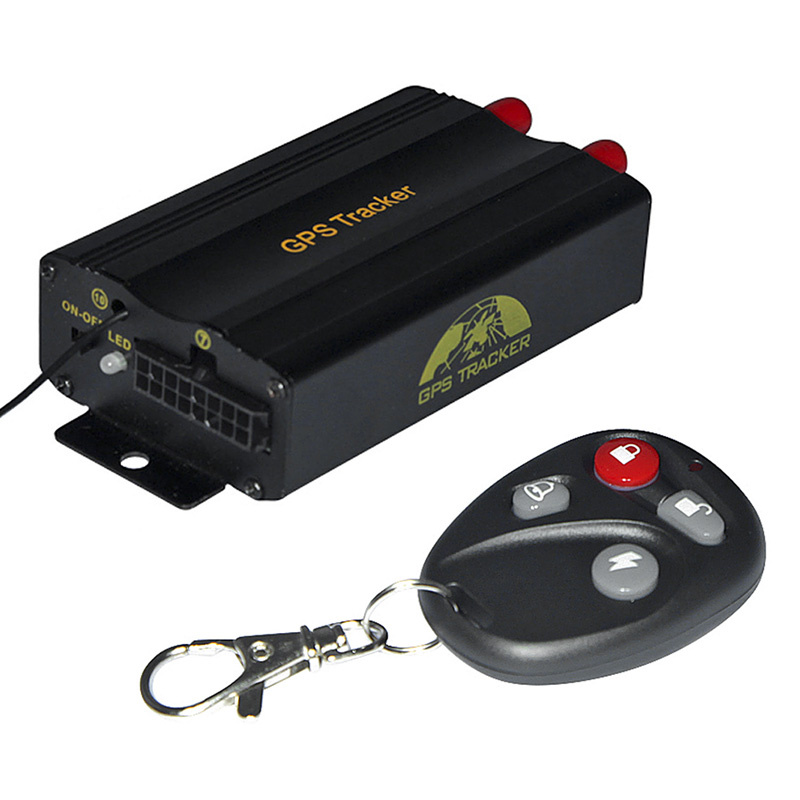

Coban GPS Tracker TK103B+ Support Dual SIM Card Lock Door by Remote Controller
Function Description
*Work with dual SIM/GSM card
*Support dual fuel sensor for fuel level monitor
*Lock/unlock the door by SMS or by remote controller (GPS103B+)
*Web based online tracking at our server
*View map on cell phone, PDA, view target current location on map on the cell phone and PDA with the maps link in the message from tracker.
*Get location in real street/address name, send "address+password to tracker, tracker will reply detailed street address, e. G. No. 113, Nantou guankou 2ND Rd, Nanshan, shenzhen, China.
*Location Based Service.
*Remote Engine-stop and Resume.
*tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low battery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
Optional function:
*Quiver / Sensor alarm
*Extra remote control
*Siren
*SD card
*Accident alarm
*Optional 24V relay for 24V vehicle
*USB cable to send commands on PC
Applying directions:
Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 87mm*54mm*26mm, 130g in weight
*GPS chip: SIRF3 chip
*channel: Parallel 20 channels
*Sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix Cold status 35s, Hot status 1s
*GSM Network frenquecy: 850/900/1800/1900MHz
| Content | Specifications |
| DIM. | 87*54*26mm |
| Weight | 130g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
