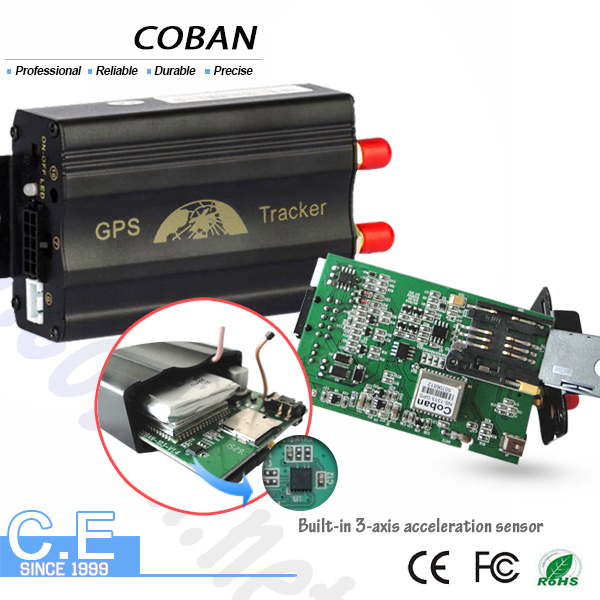

Coban original GPS tracking Vehicle Tracker with Engine Shut Remotely (tk103A)Main functions
Summarize:
Working based on existing GSM/GPRS network and GPS satellites, this product can locate can monitor any remote targets by SMS or internet service platform
Features:
Support non-Server based location
Location memorization
Auto location report
Authorize/delete the tracking phone number
Covert alert& voice surveillance
Geofence: Alert in case of braching the predefined district
Movement alert: Alert in case of movement
Speed alert: Alter in case of excess of the predefined speed
Power alert
Applications:Used widely for vehicle and other moving objects tracking.
Basic functions:1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14,
Engine -cut and restore alarm by SMS GPRS15,
ACC,Door shock sensor alarm under Arm states16, Movement alert sensor
19. Optional shock/impact sensor
20. Abosolute street function
Special for car (12V-24V)Support cut power and oil function from long distance
Supporting SMS remote reboot and reset button to restart
Support text geographic information searching
Supporting SMS with Google map track (SMS)
Support tracking (GPRS)
Support time and voice tracking
Support electronic fence, shift, speeding and low electric alarm
Support SOS emergency/alarm function
Specification
Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
