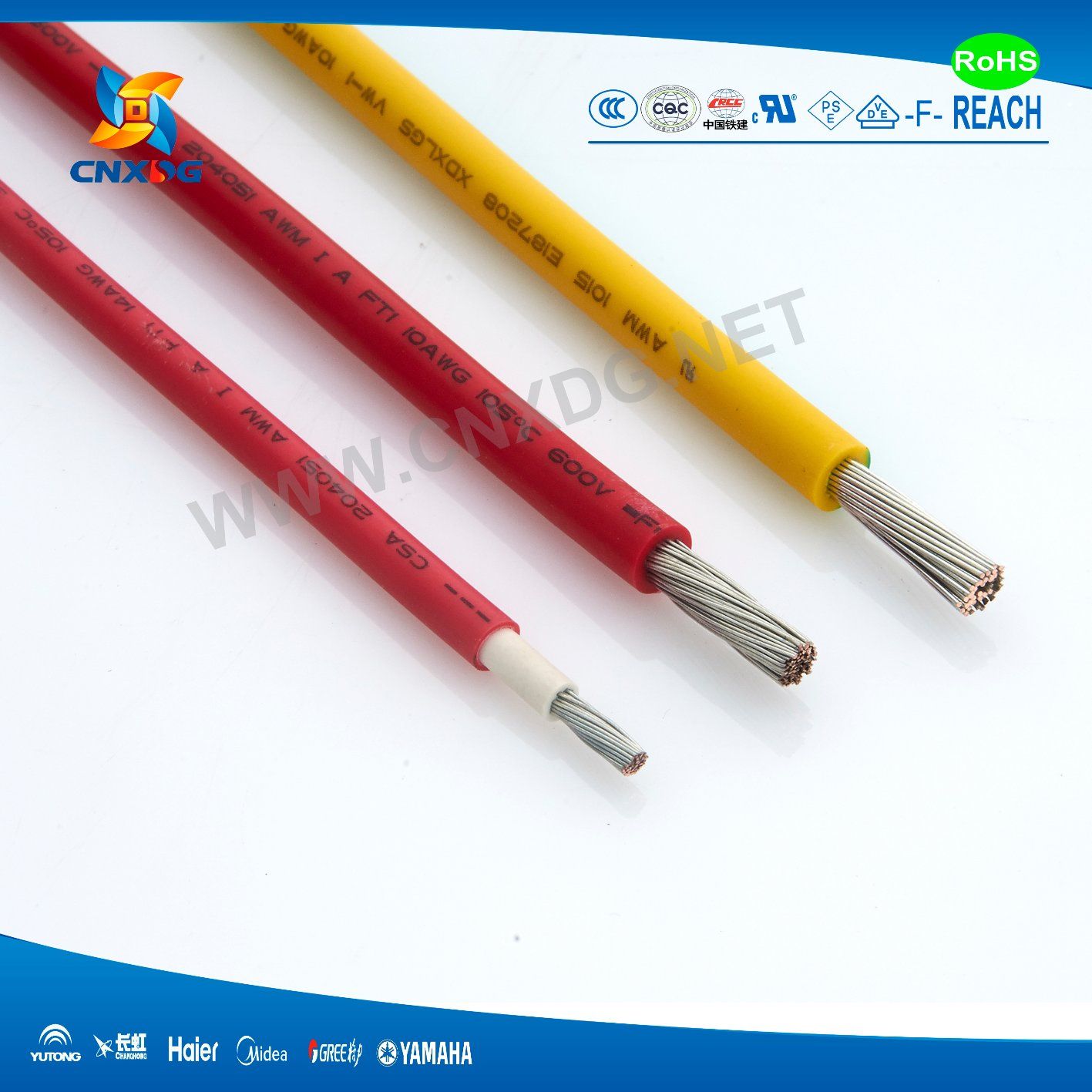

Standard: UL 758, 1581 CSA C22.2 No.210.2
Registration No: E187208 CSA204051
MARKING: AWM 1007 E187208 XDXLGS VW-1() AWG 80ºC 300V--CSA204051 AWM I A FT1( ) AWG80ºC300V-F-LF
APPLICATION: For general purpose internal wiring of electronic and electrical equipment, where exposed to oil at a temperature not exceeding 60ºCor80ºC
DESCRIPTION| >> | Rated voltage:300V, Rated temperature:80ºC |
| >> | Tinned or bare,stranded or solid copper conductor, 32AWG-16AWG |
| >> | PVC insulation |
| >> | Passes UL VW-1, FT1 vertical flame test |
| >> | Uses standard thickness of insulation to ensure easy stripping and cutting |
| >> | Resistant to acid, alkali, oil, moisture and fungi,comforming RoHS |
UL 1007 80ºC 300V |
Conductor Type | Conductor | Insulation | Max Resistance at 20ºC | Min Insulation Resistance at 20ºC | Dielectric Strength AC 1 min | Standard Length |
Spec | / | Dia. | Nom. Thick. | Nom. Dia. |
| AWG | No./mm | mm | mm | mm | Ω/km | MΩ.Km | V | Ft(M) |
Stranded Conductor | 32 | 7/0.08 | 0.244 | 0.38 | 1.00 | 564.49 | 10 | 2000 | 2000(610) |
| 30 | 7/0.10 | 0.30 | 0.38 | 1.12 | 381 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 239 |
| 26 | 7/0.16 | 0.48 | 0.38 | 1.30 | 150 |
| 24 | 11/0.16 | 0.61 | 0.38 | 1.43 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.38 | 1.58 | 59.4 |
| 20 | 26/0.16 | 0.94 | 0.38 | 1.76 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.38 | 2.05 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.40 | 14.6 |
Single Conductor | 28 | 1/0.32 | 0.32 | 0.38 | 1.14 | 227 | 10 | 2000 | 2000(610) |
| 26 | 1/0.404 | 0.404 | 0.38 | 1.22 | 143 |
| 24 | 1/0.511 | 0.511 | 0.38 | 1.33 | 89.3 |
| 22 | 1/0.643 | 0.643 | 0.38 | 1.46 | 56.4 |
| 20 | 1/0.813 | 0.813 | 0.38 | 1.63 | 35.2 |
| 18 | 1/1.024 | 1.024 | 0.38 | 1.84 | 22.2 |
| 16 | 1/1.29 | 1.29 | 0.38 | 2.11 | 14.0 |
Overall Tinned | 26 | 7/0.16 | 0.48 | 0.38 | 1.30 | 150 | 10 | 2000 | 2000(610) |
| 24 | 7/0.203 | 0.61 | 0.38 | 1.43 | 94.2 |
| 22 | 7/0.254 | 0.76 | 0.38 | 1.58 | 59.4 |
| 20 | 7/0.321 | 0.96 | 0.38 | 1.78 | 36.7 |
| 18 | 7/0.404 | 1.21 | 0.38 | 2.03 | 23.2 |

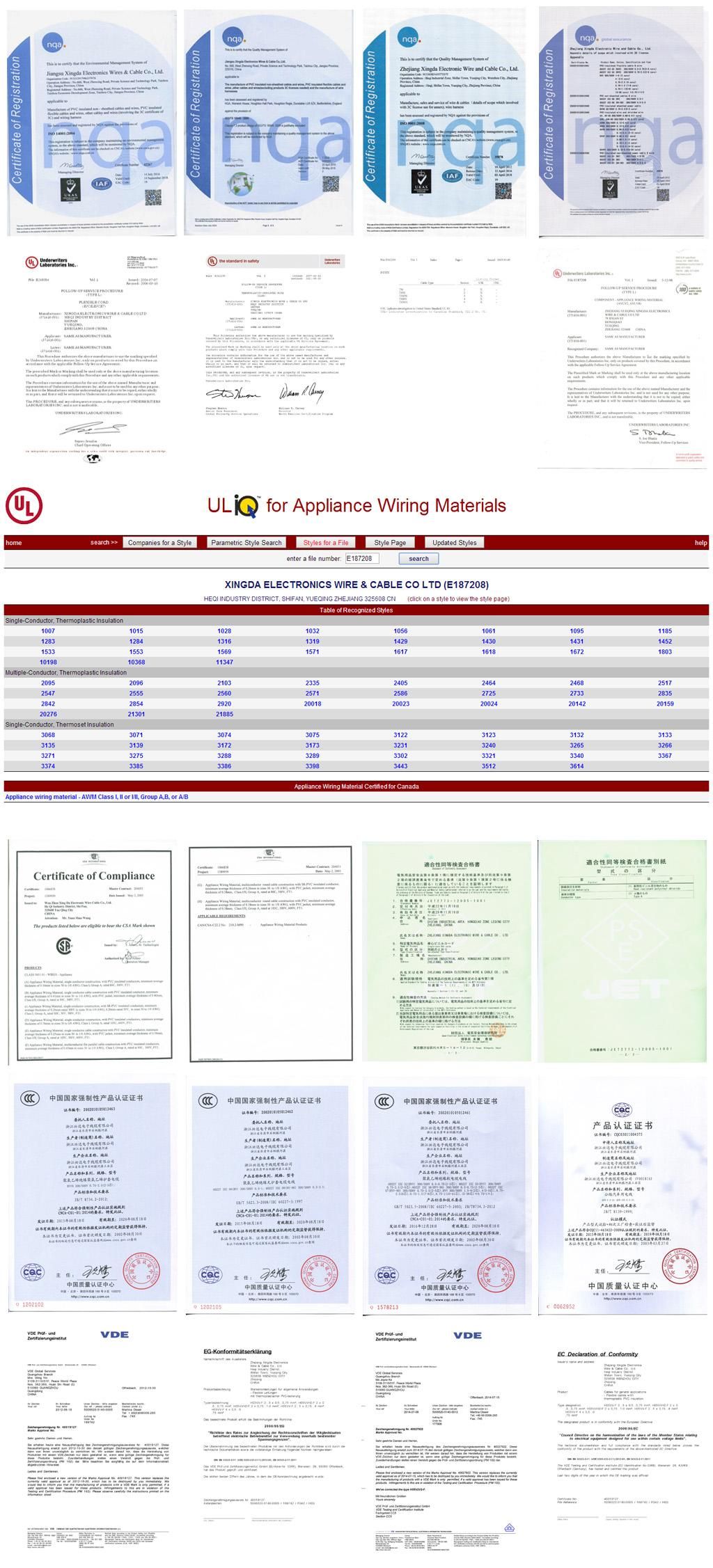

CERTIFICATION

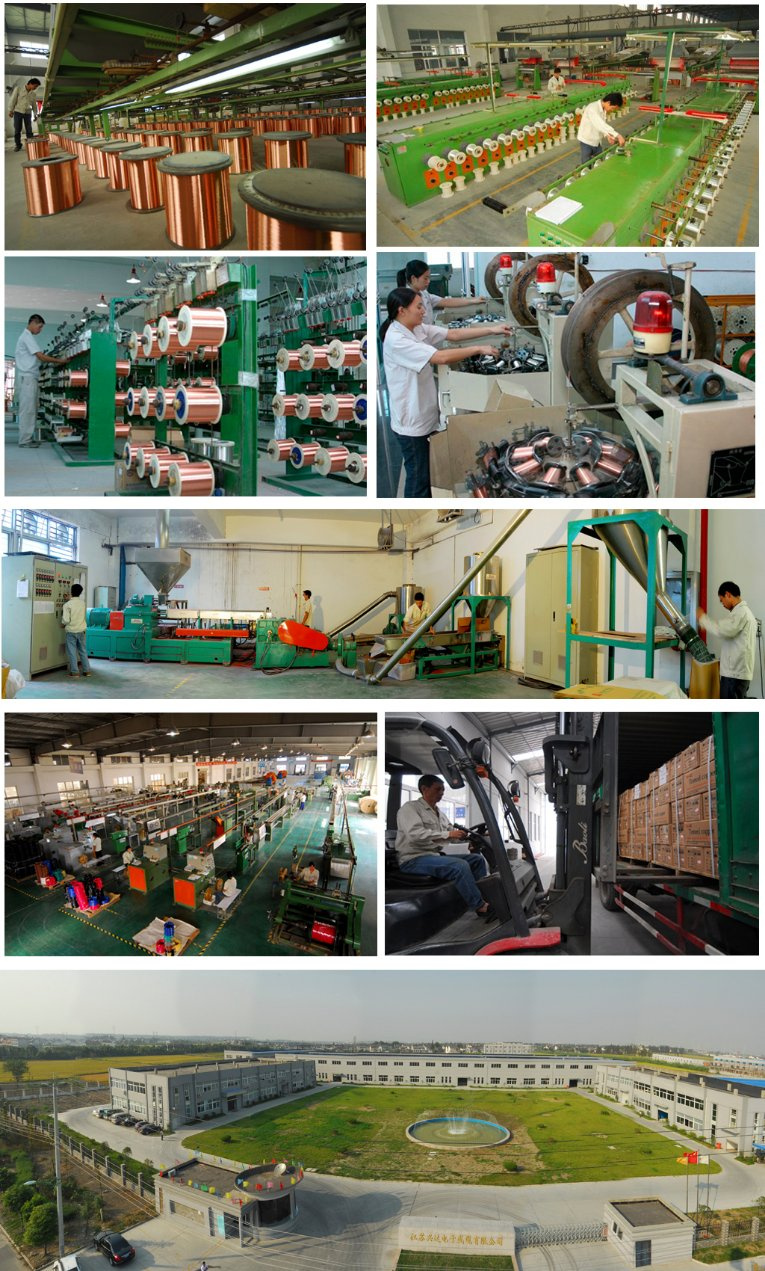

WORKSHOP
