Standard: UL 758, 1581 CSA C22.2 No.210.2
Registration No: E187208 CSA204051
MARKING: AWM2733 E187208 XDXLGS VW-1( ) AWG 105ºC600V----CSA204051 AWM I/II FT1( ) AWG80ºC-F-LF
APPLICATION: Internal or external wiring of electric equipment
| Rated voltage: 600V,Rated temperature: 105ºC | | | Stranded, tinned or bare, copper conductor, 30AWG min. | | | PVC insulation | | | PVC jacket | | | Passes UL VW-1 & CSA FT1 vertical flame test | |
Uniform insulation thickness of wire to ensure |

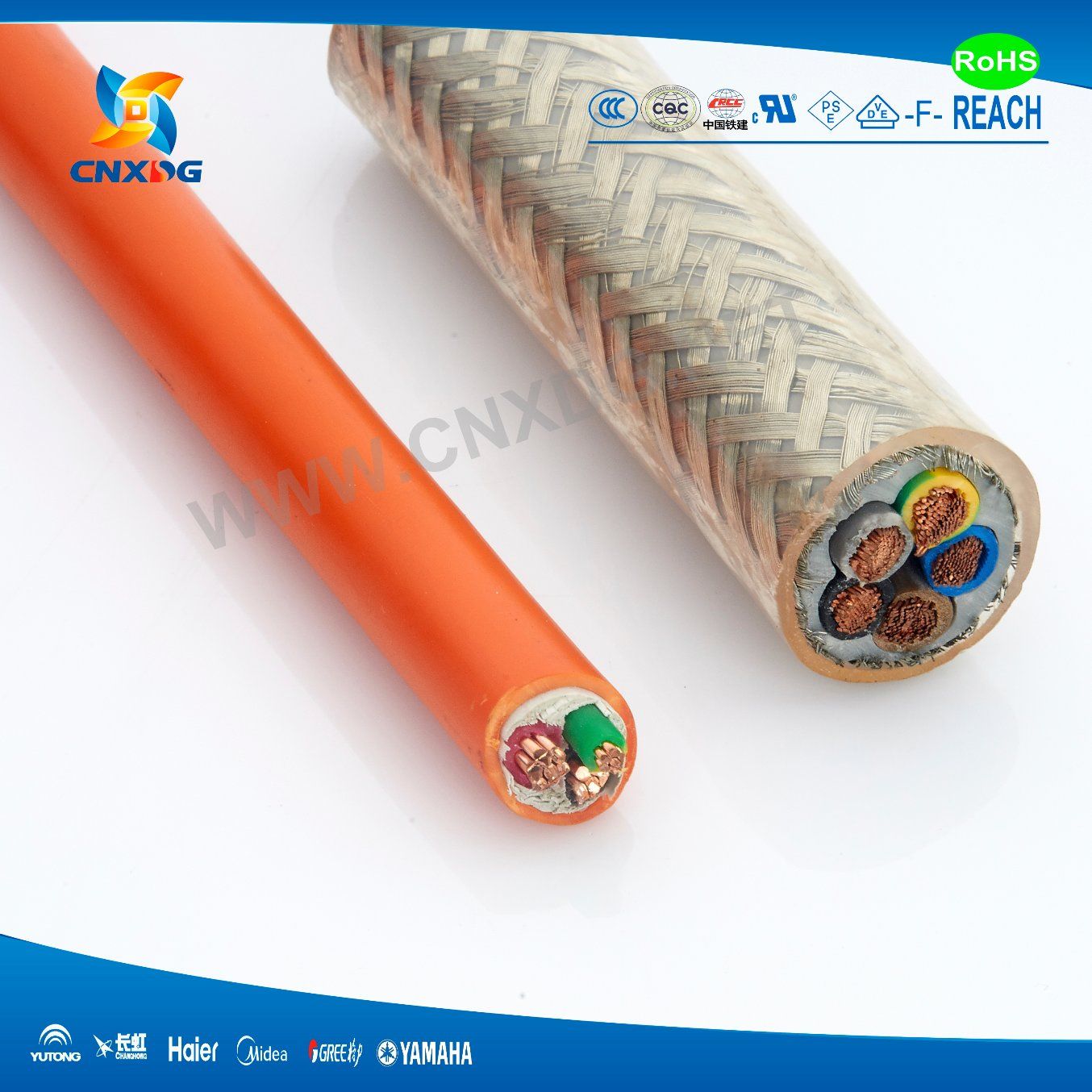

UL 2733 105ºC 600V |
Conductor Type | Conductor | Insulation | Jacket | Max Resistance at 20ºC
| Max Insulation Resistance at 20ºC | Dielectric Strength AC 1 min | Standard Length
|
Spec | / | Dia | Cores | Nom. Thick. | Nom. Dia. | Nom. Thick. | Nom. Dia. |
AWG | No./mm | mm | No. | mm | mm | mm | mm | Ω/Km | MΩ.Km | V | M |
Stranded Conductor | 20 | 26/0.16 | 0.94 | 2 | 0.76 | 2.5 | 0.38 | 5.9 | 36.7 | 15 | 2000 | 656(200) |
3 | 6.5 |
4 | 7.2 |
5 | 8.2 | 492(150) |
6 | 9.1 | 328(100) |
7 | 9.1 |
18 | 41/0.16 | 1.18 | 2 | 0.76 | 2.76 | 0.38 | 6.3 | 23.2 | 652(200) |
3 | 7.1 |
4 | 7.8 |
5 | 8.8 | 492(150) |
6 | 9.8 | 328(100) |
7 | 9.8 |

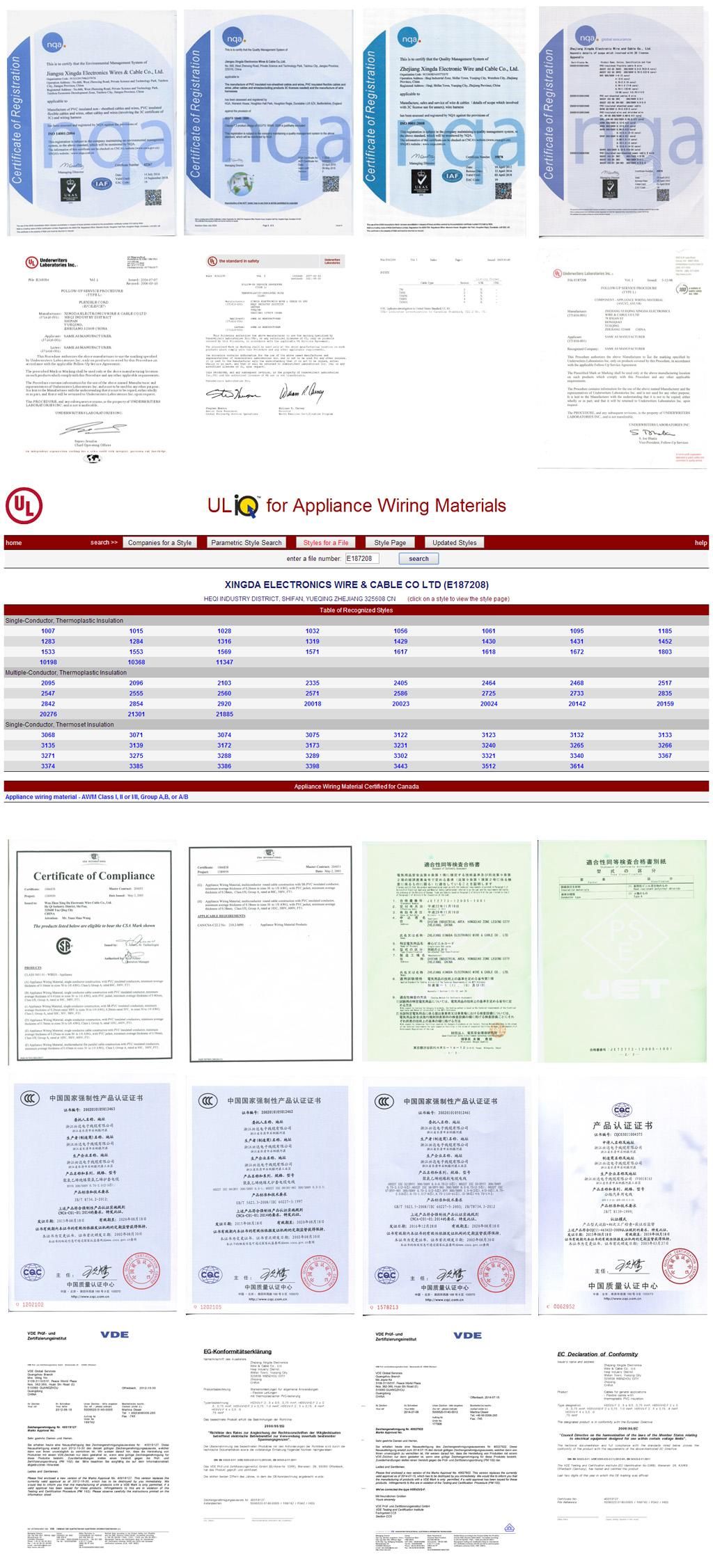

CERTIFICATION

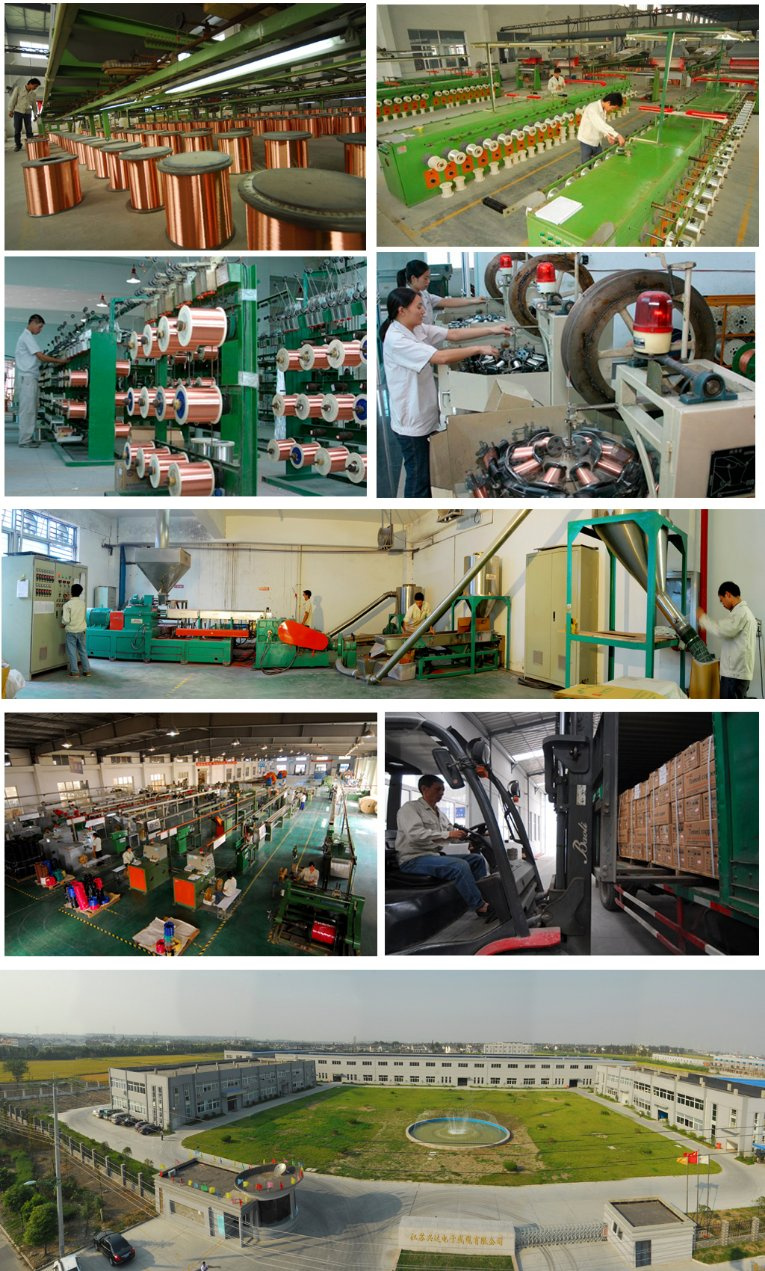

WORKSHOP
2 . What kinds of products does XINGLIAN manufacture?1)Wire and Cable;A. PVC Insulated (Flexible ) Wire ;
B. PVC Insulated and Sheathed Cable;
C. PVC Insulated and Unsheathed Cable;
D. PE/XLPE/LSF/LSZH/SRPVC/HDPE/LDPE Insulated (Flexible ) Wire ;
E. PE/XLPE/LSF/LSZH/SRPVC/HDPE/LDPE Insulated and Jacketed Cable ;
F. Road Vehicles High-voltage and Low-voltage Wire
G .Road Vehicles Low-Voltage Wire
2)Connector and Wiring harness
A.For Automotive
B.For Motorcycle
C.For Household appliances
D.For Communication3. What kind of certifications do you have?ISO9001, ISO14001, TS16949, cUL, VDE, CE, CCC, CQC, CRCC, JQA, PSE, RoHS,REACH.4.Which markets do you involve mainly in?Our products have been exported mainly to North America, Europe ,Australia,South-east Asia, South America,Central America, Africa, Middle East, etc.5. Which standards do you comply with when you produce cables and harness ?We are able to producewires and cables based on UL,CSA,VDE,GB, JB, IEC, BS, DIN, ASTM, JIS,JASO D, ISO,VW,QC/T PSASTE, SAE J,GJB, AS/NZS,, etc. Meanwhile, we can design and manufacture the cables and harnesses according to the samples and technical specification the customer supply.6. What is the min.order quantity ?It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.7. What is the production capacity per week or per month ?For cable, we can finish 400'000km within one month.
For connector, we can finish 100'000'000pcs
For harness 9'000'000 sets8. Do you supply the customers with installation service in foreign country ?We don't have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
Jiangsu Xinglian Electronic Technology Co., Ltd is a private joint-stock enterprise. It registered in commerce and industry bureau, established in 1994. Xinglian has set up production bases in Jiangsu, Wuhan, Chongqing. Total assets in 250 million.
Specialized in manufacturing UL electronic wire&cable, wire harness assembly of automobile& motorcycle, terminal of automobile&motorcycle, automotive high&low voltage electronic, etc.
Xinglian forms to a branding and conglomeration large scale enterprise. Our products cover many fields, such as appliance, automobile, aviation, telecommunication, medical instrument, etc. All the products pass of the certificates of UL, CSA, F-MARK, PSE, CCC, CQC, CCS, VDE. And our company is authorized by GJB9001-2000, ISO9001-2008, ISO/TS16949: 2002 system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
