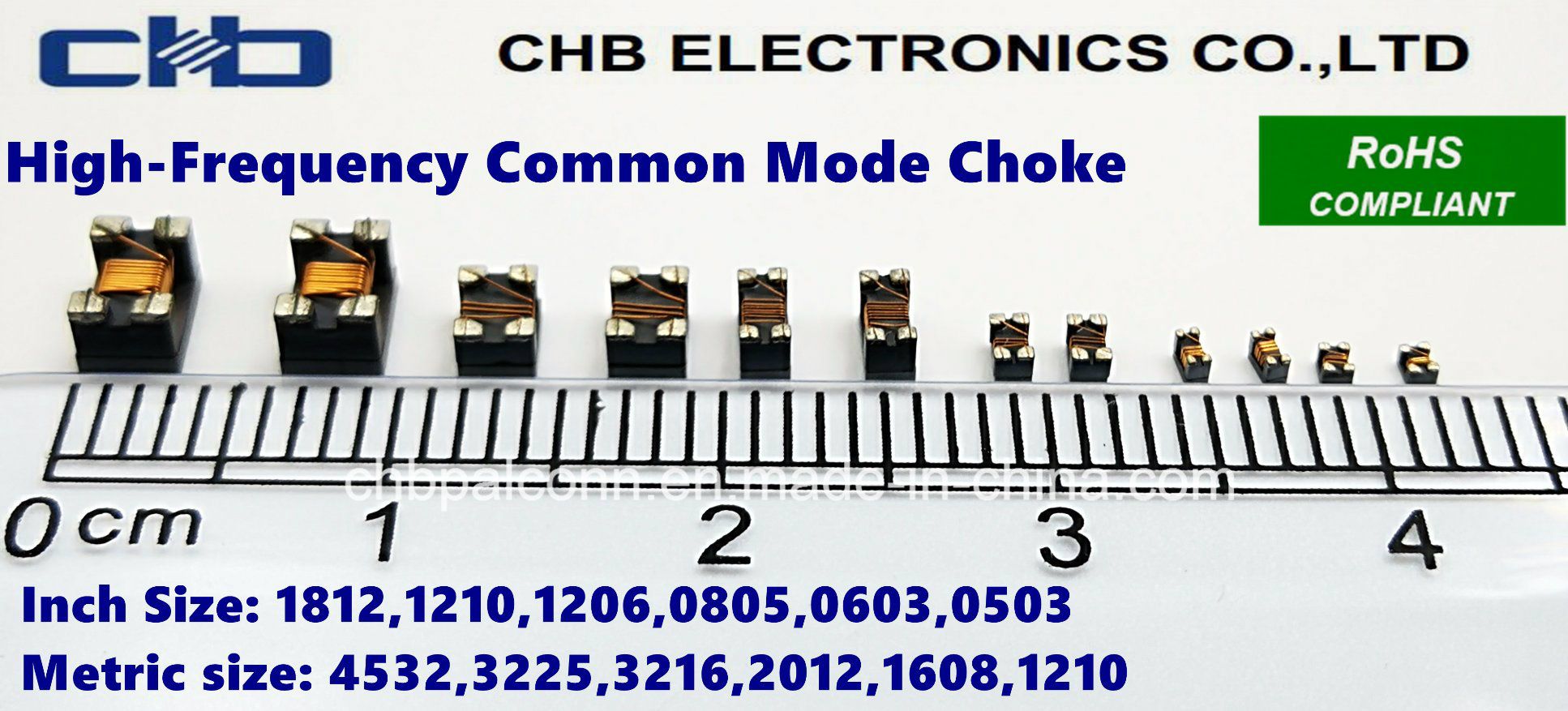

Common Mode Choke, Rated Current: 1.5AMP, PCM4532A Series Equivalent Acm4532 Series (TDK) for USB2.0/IEEE1394 Signal Line

Name: Common Mode Choke, Rated Current: 1.5AMP, PCM4532A Series Equivalent Acm4532 Series (TDK) for USB2.0/IEEE1394 Signal Line
Brand: all-electronics-online.com
SKU: 723365712
Availability: InStock
Rating: 4.4 (35 reviews)

Price:	US $ 0.15-0.18/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

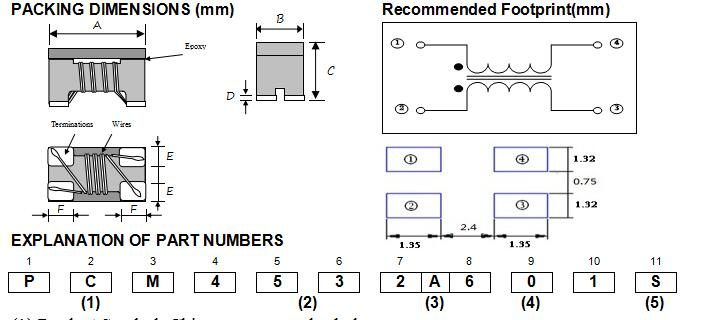

EXPLANATION OF PART NUMBERS:

(1) Product Symbol: Chip common mode choke

(2) Shapes and dimensions: Length(A) x Width(B) x Thickness( C)
Dimensions in mm (inch)

TYPE

0806

0.85± 0.1

0.65± 0.1

0.45 max.

0.15 max.

0.27Typ.

0.22Typ.

1210

1.2 ± 0.2

1.0 ± 0.2

0.9 max.

0.15 max.

0.36Typ.

0.33Typ.

1608

1.6 ± 0.1

0.8 ± 0.1

1.1 ± 0.1

0.1 ± 0.1

0.25Typ.

0.33Typ.

2012

2.0 ± 0.2

1.2 ± 0.2

0.2 ± 0.1

0.40Typ.

0.45Typ.

2520

2.5 ± 0.2

2.0 ± 0.2

1.8 ± 0.2

0.2 ± 0.1

0.4 ± 0.1

0.45 ± 0.1

3216

3.2 ± 0.2

1.6 ± 0.2

1.9 ± 0.2

0.2 ± 0.1

0.60Typ.

3225

3.2 ± 0.2

2.5 ± 0.2

2.2 ± 0.2

0.2 ± 0.1

0.80Typ.

0.65Typ.

4532

4.5 ± 0.2

3.2 ± 0.2

2.8 ± 0.2

0.2 ± 0.1

1.2Typ.

1.0Typ.

(3)Shielding Type :

1GHz

USB2.0/IEEE1394 Signal Line

3.5GHz

HDMI 1.4 CAT1

6GHz

HDMI 1.4 CAT2/Display Part

7.5GHz

HDMI 1.4 CAT2/USB3.0

10GHz

HDMI 1.4 CAT2/ USB3.0/ USB3.1

(4) Impedance
670:67Ω;900:90Ω;121:120Ω;161:160Ω;181:180Ω;221:220Ω;261:260Ω;361:360Ω

(5) Tolerance: S=±25%;M=±20%

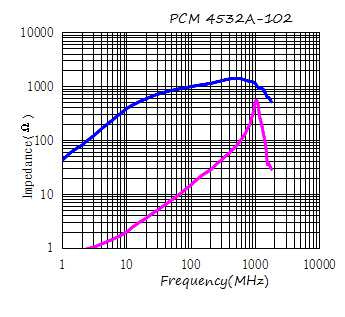

ELECTRICAL CHARACTERISTICS

P/N	Z(Ω)	DCR (Ω)	Rated current	Rated Voltage	Insulation Resistance
	Common Mode
	Impedance	[ Max ]	Idc(A)	Vdc	IR
	at 100MHz		[ Max ]	(V)Typical	(MΩ)Min.
PCM4532A-601S	600	0.30	1.5	50	10
PCM4532A-801S	800	0.10	1	50	10
PCM4532A-102S	1000	0.40	1	50	10

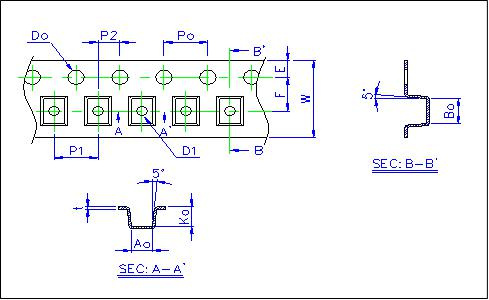

Reel Dimension & Tape Dimension

Type

A(mm)

B(mm)

C(mm)

D(mm)

7"x8mm

9.0±0.5

60±2

13.5±0.5

178±2

7"x12mm

13.5±0.5

60±2

13.5±0.5

178±2

Size

Ao(mm)

Bo(mm)

Ko(mm)

W(mm)

E(mm)

F(mm)

Po(mm)

P1(mm)

Do(mm)

0806

0.95±0.10

1.05±0.10

0.50±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1210

1.15±0.10

1.40±0.10

0.93±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1608

1.65±0.10

1.00±0.10

1.18±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2012

2.35±0.10

1.50±0.10

1.45±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2520

2.75±0.10

2.20±0.15

2.00±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

3216

3.50±0.10

1.88±0.10

2.10±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

3225

3.60±0.10

2.80±0.10

2.20±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

4532

3.45±0.10

4.90±0.10

3.05±0.10

12.00±0.20

1.75±0.10

5.50±0.05

4.0±0.05

8.0±0.10

1.5+0.1,-0

Packaging Quantity(Unit:PCS)

Chip Size				0806		1210		1608		2012		2520		3216		3225		4532
8mm/ Reel				4000		3000		2000		2000		2000		2000		1000		500

Prod Model:	PCM4532A
