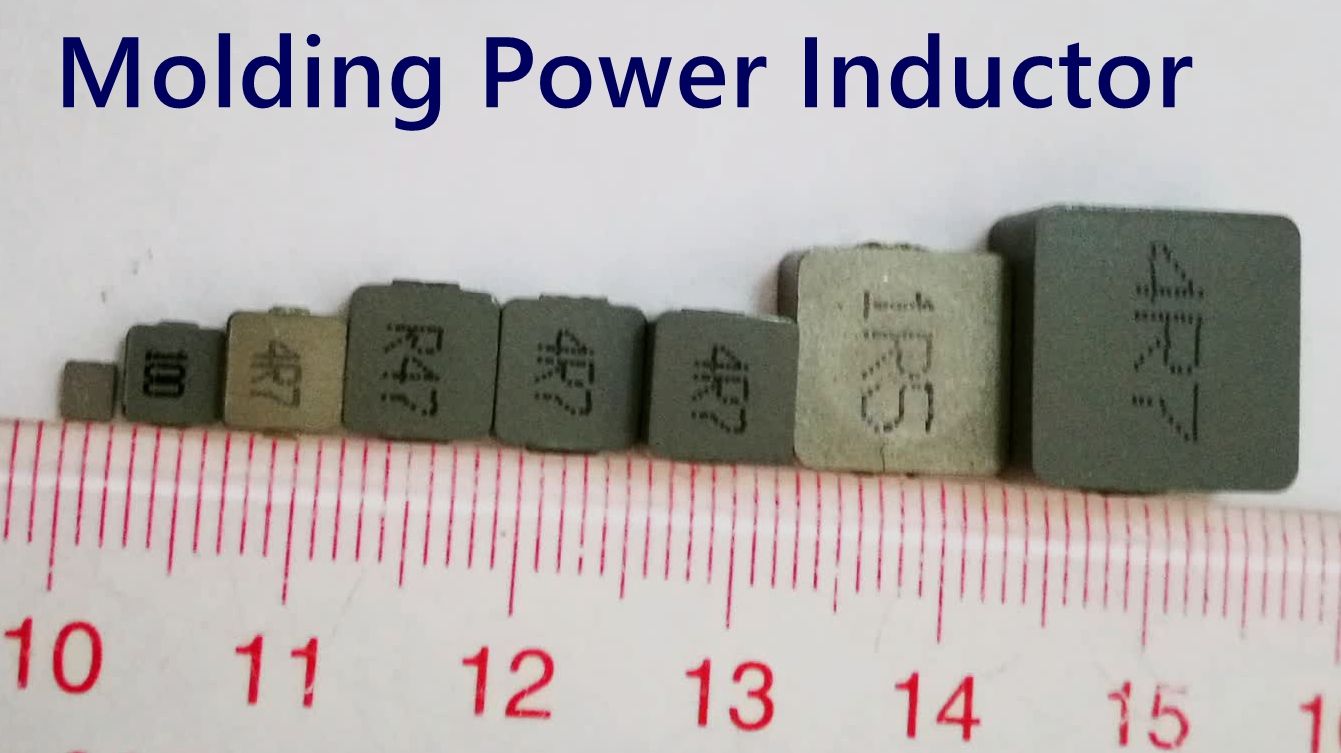

Molding Power Inductor
| Price: |
US $ 0.1-0.69/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
T/T |
FEATURES,
-
Shielded construction-
Frequency range up to 3.0-5.0 MHz-
Lowest DCR/μH-
Handles high transient current spikes without saturation-
Ultra low buzz noise, due to composite construction-
Encapsulated body offers improved environmental protection and moisture resistance.-
Higher dielectric withstanding voltage vs. IHLP-
Flame retardant encapsulant (UL 94 V-0)-
Corrosion resistant package-
Compliant to RoHS directive 2002/95/ECAPPLICATIONSPDA/notebook/desktop/server applicationsHigh current POL convertersLow profile, high current power suppliesBattery powered devicesDC/DC converters in distributed power systemsDC/DC converter for Field Programmable Gate Array (FPGA)1. Saturation Rated Current that will cause initial inductance value approximately 25% rolloff. (Ta=25±5ºC)
2. Temperature Rise Current that will cause temperature rise approximate 40°C without core loss. (Ta=25±5ºC)

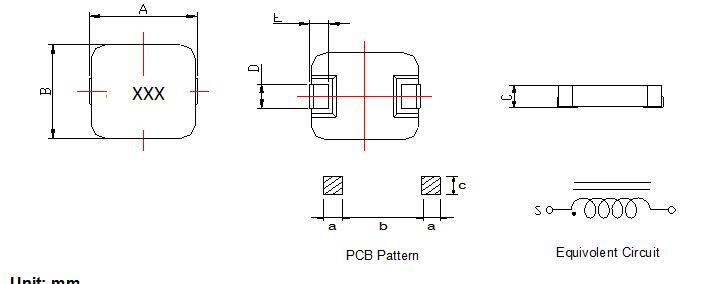

| Series | A | B | C | D | E | a | b | c |
| MPC1207 | 13.8 Max | 12.9 Max | 6.5 Max | 3.6±0.5 | 2.3±0.5 | 2.9 ref | 7.9 ref | 5.0 ref |
| MPC1205 | 13.8 Max | 12.9 Max | 5.0 Max | 3.6±0.5 | 2.3±0.5 | 2.9 ref | 7.9 ref | 5.0 ref |
| MPC1203 | 13.8 Max | 12.9 Max | 3.7 Max | 3.6±0.5 | 2.3±0.5 | 2.9 ref | 7.9 ref | 5.0 ref |
| MPC1004 | 11.5 Max | 10.3Max | 4.0 Max | 2.9±0.5 | 2.2±0.3 | 3.5 ref | 6.0 ref | 4.0 ref |
| MPC0603 | 7.3 Max | 6.8 Max | 3.0 Max | 2.9±0.5 | 1.6±0.5 | 2.5 ref | 3.7 ref | 3.5 ref |
| MPC0625 | 7.3 Max | 6.8 Max | 2.5 Max | 2.9±0.5 | 1.6±0.5 | 2.5 ref | 3.7 ref | 3.5 ref |
| MPC0602 | 7.3 Max | 6.8 Max | 2.0 Max | 2.9±0.5 | 1.6±0.5 | 2.5 ref | 3.7 ref | 3.5 ref |
| MPC0503 | 5.5±0.3 | 5.0±0.5 | 3.0 Max | 1.5±0.5 | 1.2±0.5 | 2.0 ref | 3.0 ref | 2.5 ref |
| MPC0502 | 5.5±0.3 | 4.7±0.5 | 2.0 Max | 1.5±0.5 | 1.2±0.5 | 2.0 ref | 3.0 ref | 2.5 ref |
| MPC0402 | 4.5±0.3 | 4.1±0.3 | 2.0 Max | 1.5±0.3 | 0.8±0.3 | 1.5 ref | 2.5 ref | 2.2 ref |
| MPC252012 | 2.5±0.3 | 2.0±0.3 | 1.2 Max | 0.6±0.3 | 0.5±0.3 | 0.5 ref | 1.2 ref | 2.0 ref |
| MPC252010 | 2.5±0.3 | 2.0±0.3 | 1.0 Max | 0.5±0.3 | 0.5±0.3 | 0.5 ref | 1.2 ref | 2.0 ref |
| MPC201610 | 2.0±0.3 | 1.6±0.3 | 1.0 Max | 0.5±0.3 | 0.5±0.3 | 0.5 ref | 1.0 ref | 1.0 ref |
| Part Number | Inductance
(μH) ± 20% | Test Condition
(Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current
(Amp) Max. |
|
|
|
| MPC1207-R10M | 0.10 | 100K / 0.25V | 0.50 | 120.00 | 60.00 |
| MPC1207-R15M | 0.15 | 100K / 0.25V | 0.60 | 118.00 | 55.00 |
| MPC1207-R22M | 0.22 | 100K / 0.25V | 0.70 | 112.00 | 53.00 |
| MPC1207-R30M | 0.30 | 100K / 0.25V | 0.80 | 72.00 | 48.00 |
| MPC1207-R33M | 0.33 | 100K / 0.25V | 0.90 | 65.00 | 46.00 |
| MPC1207-R40M | 0.40 | 100K / 0.25V | 1.00 | 64.00 | 44.00 |
| MPC1207-R47M | 0.47 | 100K / 0.25V | 1.20 | 63.00 | 41.00 |
| MPC1207-R56M | 0.56 | 100K / 0.25V | 1.40 | 62.00 | 37.00 |
| MPC1207-R68M | 0.68 | 100K / 0.25V | 1.60 | 60.00 | 35.00 |
| MPC1207-R82M | 0.82 | 100K / 0.25V | 1.90 | 50.00 | 33.00 |
| MPC1207-1R0M | 1.00 | 100K / 0.25V | 2.00 | 49.00 | 32.00 |
| MPC1207-1R2M | 1.20 | 100K / 0.25V | 2.50 | 48.00 | 30.00 |
| MPC1207-1R5M | 1.50 | 100K / 0.25V | 3.00 | 45.00 | 27.00 |
| MPC1207-1R8M | 1.80 | 100K / 0.25V | 3.20 | 41.00 | 24.00 |
| MPC1207-2R2M | 2.20 | 100K / 0.25V | 4.20 | 40.00 | 22.00 |
| MPC1207-3R3M | 3.30 | 100K / 0.25V | 6.80 | 35.00 | 18.00 |
| MPC1207-4R7M | 4.70 | 100K / 0.25V | 8.70 | 32.00 | 13.50 |
| MPC1207-5R6M | 5.60 | 100K / 0.25V | 10.00 | 32.00 | 13.50 |
| MPC1207-6R8M | 6.80 | 100K / 0.25V | 14.00 | 16.50 | 11.50 |
| MPC1207-8R2M | 8.20 | 100K / 0.25V | 15.50 | 16.00 | 10.50 |
| MPC1207-100M | 10.00 | 100K / 0.25V | 17.20 | 15.50 | 10.00 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC1205-R10M | 0.10 | 100K / 0.25V | 6.00 | 118.00 | 55.00 |
| MPC1205-R22M | 0.22 | 100K / 0.25V | 0.80 | 110.00 | 51.00 |
| MPC1205-R33M | 0.33 | 100K / 0.25V | 1.10 | 80.00 | 42.00 |
| MPC1205-R47M | 0.47 | 100K / 0.25V | 1.30 | 65.00 | 38.00 |
| MPC1205-R56M | 0.56 | 100K / 0.25V | 1.50 | 55.00 | 36.00 |
| MPC1205-R68M | 0.68 | 100K / 0.25V | 1.70 | 54.00 | 34.00 |
| MPC1205-R82M | 0.82 | 100K / 0.25V | 2.30 | 53.00 | 31.00 |
| MPC1205-1R0M | 1.00 | 100K / 0.25V | 2.50 | 50.00 | 29.00 |
| MPC1205-1R5M | 1.50 | 100K / 0.25V | 4.10 | 48.00 | 23.00 |
| MPC1205-1R8M | 1.80 | 100K / 0.25V | 4.90 | 40.00 | 19.00 |
| MPC1205-2R2M | 2.20 | 100K / 0.25V | 5.50 | 32.00 | 20.00 |
| MPC1205-3R3M | 3.30 | 100K / 0.25V | 9.20 | 32.00 | 15.00 |
| MPC1205-4R7M | 4.70 | 100K / 0.25V | 15.00 | 27.00 | 12.00 |
| MPC1205-5R6M | 5.60 | 100K / 0.25V | 16.50 | 22.00 | 11.50 |
| MPC1205-6R8M | 6.80 | 100K / 0.25V | 18.50 | 21.00 | 11.00 |
| MPC1205-7R8M | 7.80 | 100K / 0.25V | 20.50 | 18.00 | 10.00 |
| MPC1205-8R2M | 8.20 | 100K / 0.25V | 22.50 | 18.00 | 9.50 |
| MPC1205-100M | 10.00 | 100K / 0.25V | 25.50 | 16.00 | 9.00 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC1004-R19M | 0.19 | 100K / 0.25V | 0.95 | 90.00 | 40.00 |
| MPC1004-R36M | 0.36 | 100K / 0.25V | 1.40 | 60.00 | 31.50 |
| MPC1004-R56M | 0.56 | 100K / 0.25V | 1.80 | 49.00 | 27.50 |
| MPC1004-1R0M | 1.00 | 100K / 0.25V | 3.70 | 36.00 | 17.50 |
| MPC1004-1R5M | 1.50 | 100K / 0.25V | 5.80 | 27.50 | 15.00 |
| MPC1004-2R2M | 2.20 | 100K / 0.25V | 10.00 | 25.60 | 12.00 |
| MPC1004-R47M | 0.47 | 100K / 0.25V | 1.60 | 38.00 | 26.00 |
| MPC1004-3R3M | 3.30 | 100K / 0.25V | 12.00 | 18.60 | 10.00 |
| MPC1004-4R7M | 4.70 | 100K / 0.25V | 16.50 | 17.00 | 9.50 |
| MPC1004-5R6M | 5.60 | 100K / 0.25V | 19.30 | 16.00 | 8.50 |
| MPC1004-6R8M | 6.80 | 100K / 0.25V | 23.30 | 13.50 | 8.00 |
| MPC1004-100M | 10.00 | 100K / 0.25V | 36.50 | 12.00 | 6.80 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC0603-R10M | 0.10 | 100K / 0.25V | 1.70 | 60.00 | 32.50 |
| MPC0603-R22M | 0.22 | 100K / 0.25V | 2.80 | 40.00 | 23.00 |
| MPC0603-R33M | 0.33 | 100K / 0.25V | 3.90 | 30.00 | 20.00 |
| MPC0603-R47M | 0.47 | 100K / 0.25V | 4.50 | 26.00 | 17.50 |
| MPC0603-R68M | 0.68 | 100K / 0.25V | 5.50 | 25.00 | 15.50 |
| MPC0603-R82M | 0.82 | 100K / 0.25V | 8.00 | 24.00 | 13.00 |
| MPC0603-1R0M | 1.00 | 100K / 0.25V | 10.00 | 22.00 | 11.00 |
| MPC0603-1R5M | 1.50 | 100K / 0.25V | 15.00 | 18.00 | 9.00 |
| MPC0603-2R2M | 2.20 | 100K / 0.25V | 20.00 | 14.00 | 8.00 |
| MPC0603-3R3M | 3.30 | 100K / 0.25V | 30.00 | 13.50 | 6.00 |
| MPC0603-4R7M | 4.70 | 100K / 0.25V | 40.00 | 10.00 | 5.50 |
| MPC0603-6R8M | 6.80 | 100K / 0.25V | 60.00 | 8.00 | 4.50 |
| MPC0603-8R2M | 8.20 | 100K / 0.25V | 68.00 | 7.50 | 4.00 |
| MPC0603-100M | 10.00 | 100K / 0.25V | 105.00 | 7.00 | 3.00 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC0503-R10M | 0.10 | 100K / 0.25V | 3.16 | 27.00 | 23.00 |
| MPC0503-R22M | 0.22 | 100K / 0.25V | 4.52 | 21.00 | 15.50 |
| MPC0503-R33M | 0.33 | 100K / 0.25V | 5.56 | 19.00 | 13.70 |
| MPC0503-R47M | 0.47 | 100K / 0.25V | 7.04 | 16.00 | 12.20 |
| MPC0503-R68M | 0.68 | 100K / 0.25V | 8.96 | 13.50 | 10.20 |
| MPC0503-R82M | 0.82 | 100K / 0.25V | 11.90 | 13.00 | 9.30 |
| MPC0503-1R0M | 1.00 | 100K / 0.25V | 13.70 | 12.00 | 9.20 |
| MPC0503-1R5M | 1.50 | 100K / 0.25V | 20.70 | 11.00 | 7.20 |
| MPC0503-2R2M | 2.20 | 100K / 0.25V | 29.20 | 10.00 | 5.80 |
| MPC0503-3R3M | 3.30 | 100K / 0.25V | 54.70 | 8.50 | 5.00 |
| MPC0503-4R7M | 4.70 | 100K / 0.25V | 77.50 | 8.20 | 3.50 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC0402-R10M | 0.10 | 100K / 0.25V | 4.00 | 22.00 | 12.00 |
| MPC0402-R22M | 0.22 | 100K / 0.25V | 6.60 | 12.50 | 9.00 |
| MPC0402-R47M | 0.47 | 100K / 0.25V | 14.00 | 9.50 | 7.00 |
| MPC0402-R56M | 0.56 | 100K / 0.25V | 16.00 | 8.50 | 6.50 |
| MPC0402-1R0M | 1.00 | 100K / 0.25V | 27.00 | 7.00 | 4.50 |
| MPC0402-1R5M | 1.50 | 100K / 0.25V | 46.00 | 6.00 | 4.00 |
| MPC0402-2R2M | 2.20 | 100K / 0.25V | 58.00 | 5.00 | 3.00 |
| MPC0402-3R3M | 3.30 | 100K / 0.25V | 87.00 | 4.00 | 2.50 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC252012-R33M | 0.33 | 100K / 0.25V | 14.00 | 5.60 | 4.30 |
| MPC252012-R47M | 0.47 | 100K / 0.25V | 20.00 | 4.50 | 3.80 |
| MPC252012-R68M | 0.68 | 100K / 0.25V | 37.00 | 4.00 | 3.00 |
| MPC252012-1R0M | 1.00 | 100K / 0.25V | 43.00 | 3.10 | 2.80 |
| MPC252012-2R2M | 2.20 | 100K / 0.25V | 84.00 | 2.30 | 1.80 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC252010-R33M | 0.33 | 100K / 0.25V | 14.00 | 5.60 | 4.30 |
| MPC252010-R47M | 0.47 | 100K / 0.25V | 20.00 | 4.50 | 3.80 |
| MPC252010-R68M | 0.68 | 100K / 0.25V | 37.00 | 4.00 | 3.00 |
| MPC252010-1R0M | 1.00 | 100K / 0.25V | 43.00 | 3.10 | 2.80 |
| MPC252010-2R2M | 2.20 | 100K / 0.25V | 84.00 | 2.30 | 1.80 |
| Part Number | Inductance
(μH) ± 20% | Test Condition (Hz / Volt) | DCR @25°C
(mΩ) Max. | Saturation
Current (Amp) Max. | Temperature Rise Current (Amp) Max. |
|
|
|
| MPC201610-R24M | 0.24 | 100K / 0.25V | 23.00 | 6.00 | 4.50 |
| MPC201610-R47M | 0.47 | 100K / 0.25V | 32.00 | 3.50 | 3.10 |
| MPC201610-1R0M | 1.00 | 100K / 0.25V | 90.00 | 2.80 | 2.10 |
| MPC201610-2R2M | 2.20 | 100K / 0.25V | 195.00 | 1.90 | 1.60 |
| Type: |
Choke Inductor |
| Structure: |
Inductive Choke |
| Brand: |
Chb or ODM |
