Conductive 16 Silicone Rubber Keypad
| Price: |
US $ 1.5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |

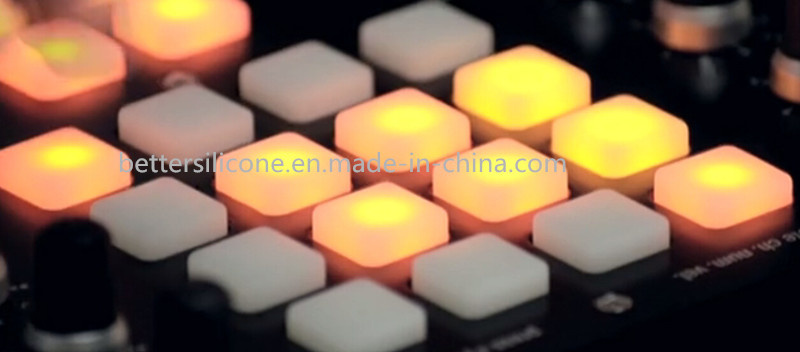

Button Pad 4x4 - LED CompatibleThese lovely silicone rubber elastomer button pad (grids/keypads) are the perfect fit for a 3mm or 5mm LED, giving you light up buttons to add to your project! (If you use different LED, we can adjust the pigment ratio to enjoy your demands. )
Description:
1. This is a translucent silicon rubber button pad with 16 buttons originally Each button has a hole underneath that accepts either a 3mm or 5mm standard LED. The idea is that you can create a button interface of your choice with the ability to display simple colors under each button. Mainly, we wanted to use our tri-color LEDs to create a full RGB color for each button.

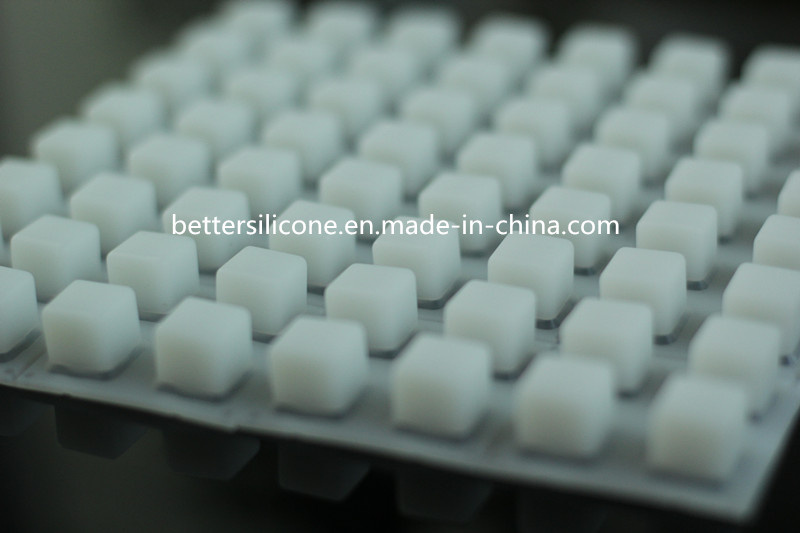

2. Translucent Silicone Rubber Button Pad (Keypad)
Because material characteristics of silicone, choose basic silicone materials with corresponding pigment ratio, which can find good effects of nonopaque Led keypads, which is popular to use in Music, Led Lighting, Decoration, Electronic products etc. Because different light source have different lighting effects, We generally help customer produce silicone pigment ration keypads for test and choice. Recently, we general
3. Silicone Electronic Conductive Printing:
For good quality and usage, we choose silicone electric conductive silicone and printing, not black carbon. And this production way also can save molding cost and per unit cost for our customers. Fixed ideas that rubber/silicone keypads need black carbons, some customers will not accept silicone electric conductive printing. Actually, the silicone electric conductive printing is new production way, the function and usage is more durable.

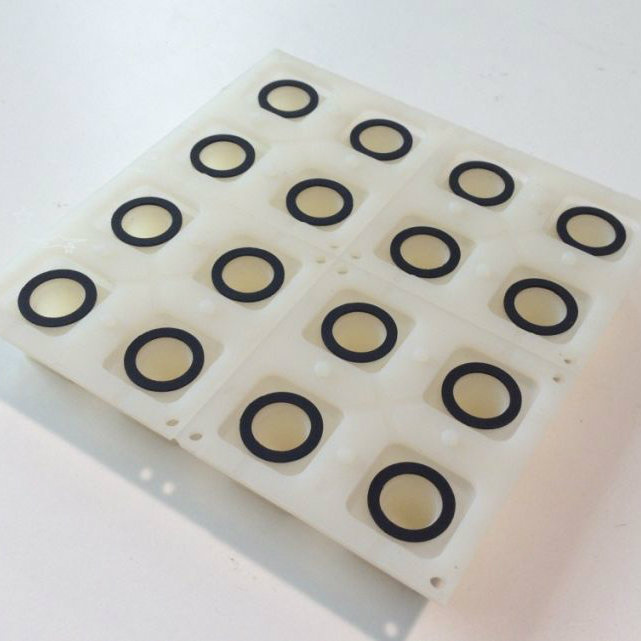

4. 16 button pad can be split up into four, 4 button pads. Each button has a conductive circle backing so that a switch can be created with exposed PCB traces. Button force is between 190 and 210grams activation force (nice tactile feel like on your TV remote)
| Prod Model: |
SRK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Translucent Silicone |
| Sizes: |
100mm*100mm |
| Special: |
Silicone Light Guide |
| Quality: |
Top Quality |
| Type: |
Convex |
| Application: |
Music Equitment |
| Material: |
Silicone |
Xiamen Better Silicone Import and Export Co., Ltd, which specialized in making Rubber Compression / plastic injection /Liquid Silicone Rubber Injection mold tool and producing silicone rubber compression parts, plastic injection parts, Liquid silicone rubber injection parts: Rubber Sheet, Gasket, O-RING, Seal, Silicone Rubber Valve, Silicone Rubber Keyboard, Rubber Nozzle, Rubber Grommet, Silicone Bushing Sleeves, Rubber Damper, Rubber Bumper, Rubber Bellows, Silicone / Liquid Silicone Mask, Connectors etc.
Xiamen Better Silicone Import and Export Co., Ltd have five production Plant:
1. Mold-Making Plants: Rubber Compression Mold, Plastic Injection Mold, Liquid Silicone Rubber Injection Mold
2. Rubber (Silicone) Compression Plant
3. Plastic Injection Plant
4. Liquid Silicone Injection Plant (Clear Room)
5. Assembly Plants (Clear Room)
As a factory management cooperation, we focus on improving Mold-making technology, each production plant efficiency, and take full advantage to enjoy customer's demands and meet marketing demand.
Our Advantage:
Own Precision Mold-making Technology (since 1998 years)
Experienced Technical Persons and Workers
One-stop Service: Mold Tool Making, Silicone Rubber Compression Production, Plastic Injection Production, Liquid Silicone Injection Production and Assembly.
Experienced Industry Knowledge, Leading industry: Electronic Industry (like Precision Silicone Rubber Smart Cellphone Parts, Rubber Keypad, 3M Adhesive Tape+Silicone Rubber etc), Medical Industry (like Silicone/Liquid silicone rubber mask/valve/gasket etc), Sanitary Industry (like Silicone Shower Head Nozzles).
Well-established and Down-to-earth Company: Improve production technology and also use qualified formal materials
