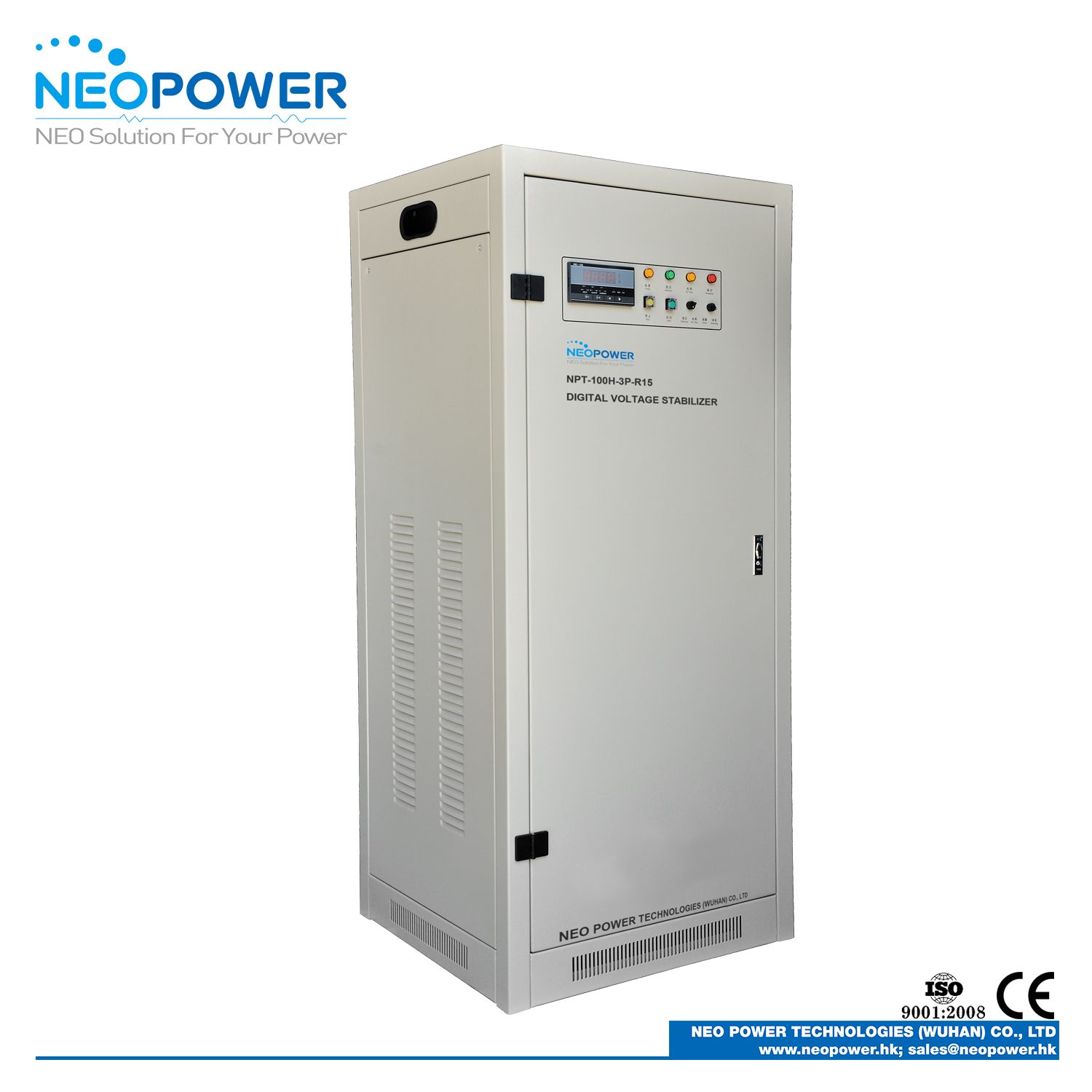

Contactless AVR Automatic Voltage Regulator 10kVA/20kVA/50kVA/100kVA/1000kVA
| Price: |
US $ 2000-5000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NPT-100H-3P-R20 |
| Capacity: |
100 kVA |
| Input Voltage: |
380V/400V/415V +/-20% |
| Output Accuracy: |
±2% |
| Regulation Time: |
<40ms |
| Control: |
Static Electronic |
| Display: |
LED/LCD |
| Weatherproof: |
IP20-IP54 |
| Bypass: |
Yes |
| Overload: |
Yes |
| Over Voltage: |
Yes |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
JIW |
| Frequency: |
High Frequency |
| Brand: |
Neopower |
Product Description
| Model | NPT-100H-3P-R20 |
| Capacity | 100 kVA |
| Power Rating | 80 kW |
| Input Voltage | 380/400/415 Vac +/-20%, three phase + N + PE |
| Input Frequency | 47 ~ 65 Hz |
| Output Voltage | 380/400/415 Vac +/-2% ~ 3%, three phase + N + PE |
| Output Frequency | input frequency synchronized |
| Output Power Factor | 0.8 |
| Response Time | < 40 ms |
| Regulation Time | 10% variation within 40 ms |
| Surge Rating | 1000% max current for 2 seconds;
300% max current for 1 minute;
200% max current for 2 minutes |
| Harmonic Distortion | Less than 1% |
| Efficiency | 98% |
| Display | LED |
| Communication Port | RS485 |
| Operation Temperature | -15 ~ 45ºC |
| Protection | over/low voltage, overload, short circuit, phase failure |
| Function | manual bypass mode, auto bypass switch, auto restart |
| Option | isolation transformer, output circuit breaker, ATS, lightning surge arrestor,
IP21 ~ IP54, LCD display, RS485 port |
| Protection Level | IP20 |
| Noise | < 60 dB |
| Temperature | -15 ~ 45 ºC |
| Humidity | 95% (non-condensing) |
| Altitude | 1000 m |
| Alarm | buzzer + LED indicators (+optional LCD display) |
| Standards | EMC Directive 2004/108/EC; LV Directive 2006/95/EC |
| Dimension | 750 * 650 * 1700 mm |
| Net Weight | 353 kG |

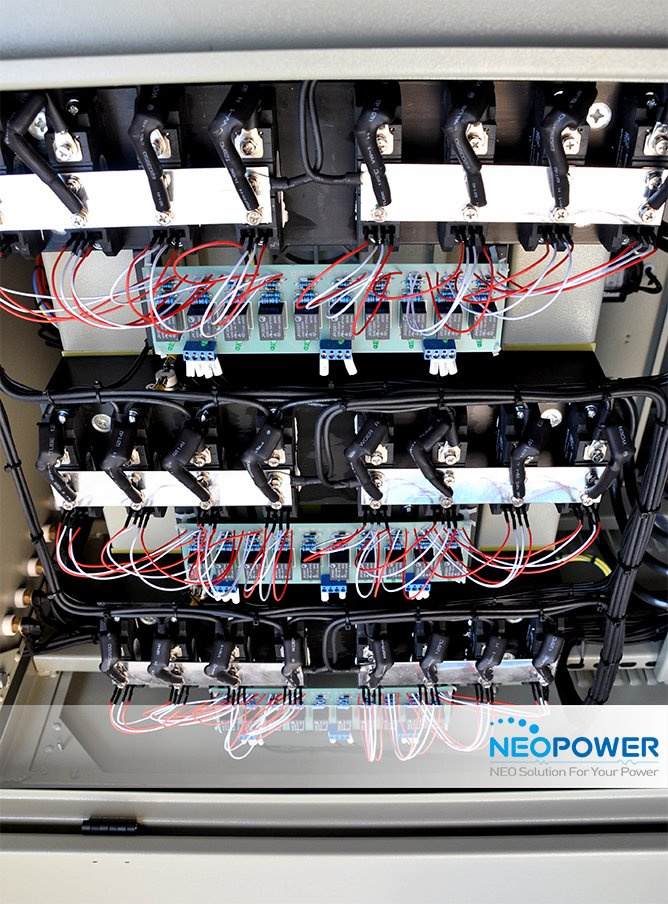

| IGBT MODULE |
 |

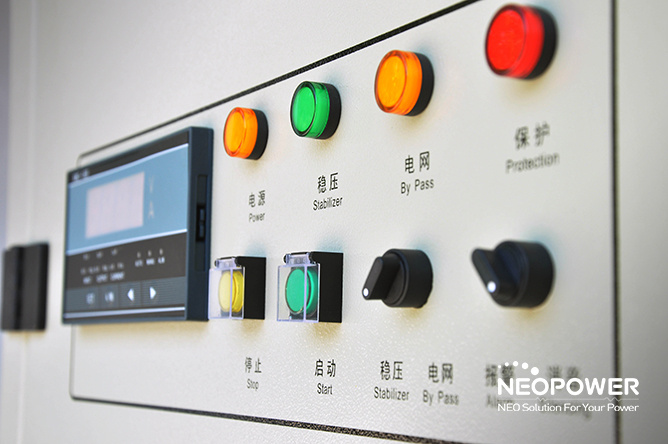

| CONTROL PANEL |
 |

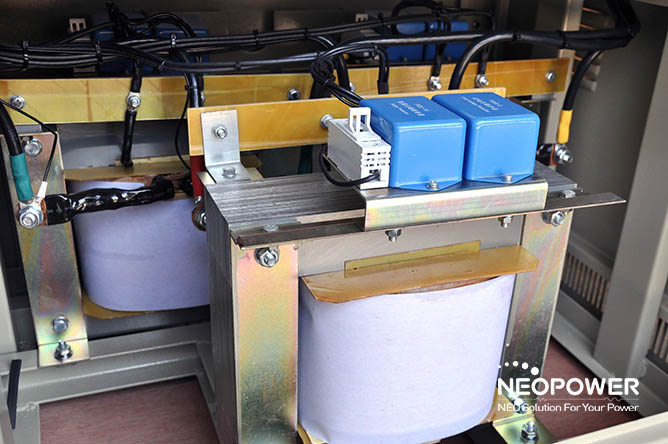

| ISOLATION TRANSFORMER |
 |

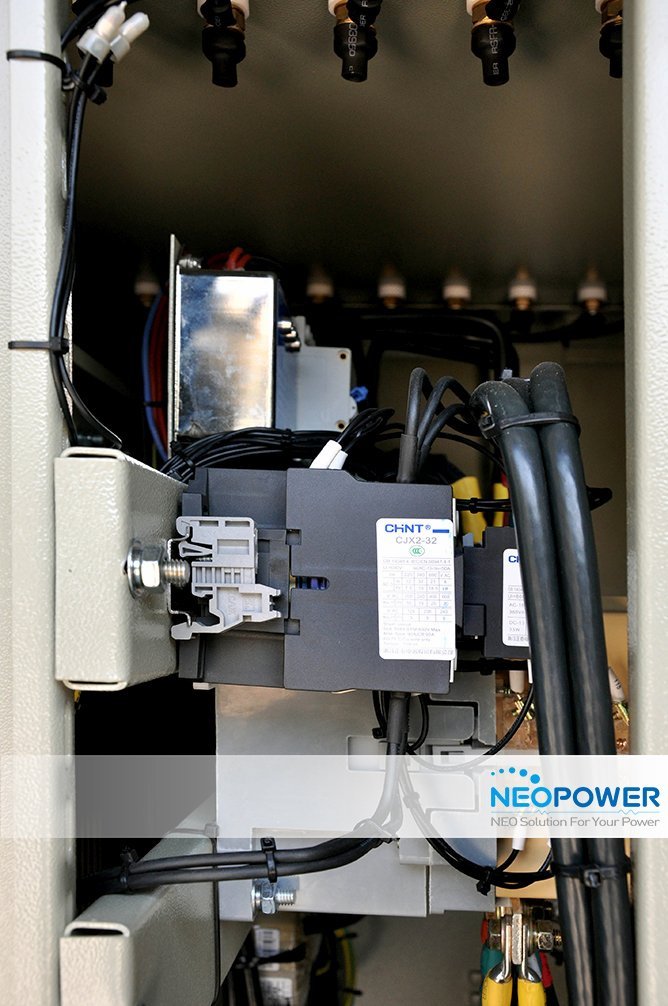

| AC CONTACTOR |
|

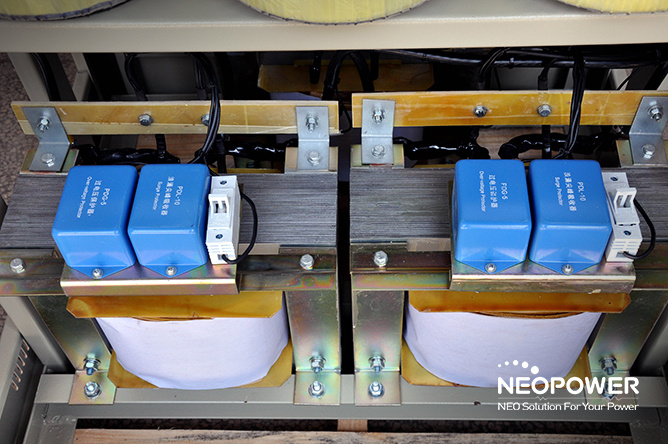

| OVER-VOLTAGE PROTECTION |
 |
IGBT Module
High Accuracy
No Noise Operation
Laboratory Footprint
Ultra Fast Regulation
Bypass Mode Available
Contactless Architecture
LED/LCD Display Options
NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).
NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.
Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.
NEO: The New, Effective, Optimistic attitudes towards your power problems!
Slogan: NEO Solution For Your Power
Purpose: To be a global leading expert in power optimization.
Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.
Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.
Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.
Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
